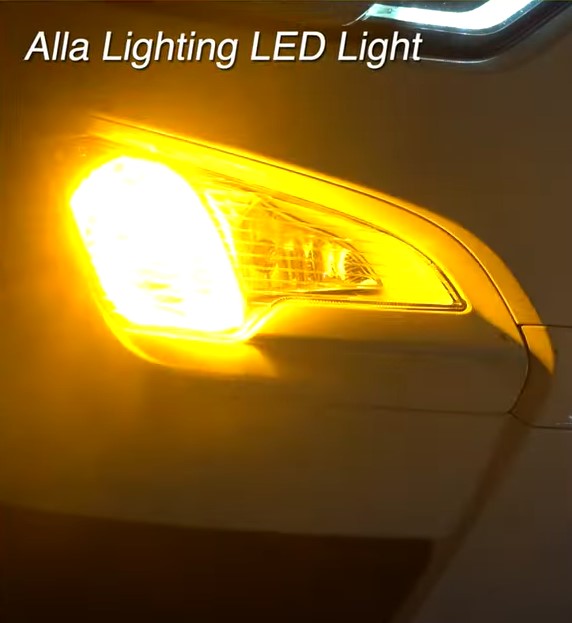

Want to give a brighter new look to your vehicle front turn signal lights but worried about hyper-flashing, an error code or flickering issues? Look no further with all new  ALLA CAN-BUS ready turn signal LED bulbs. With these new CAN-BUS turn signal bulbs, your vehicle’s blinkers are more noticeable with no error code, flickering or hyper-flashing for most vehicles. Simple plug and play. Extremely bright and available in RED or Amber Yellow.



See our step by step installation guide to upgrade your stock halogen front turn signals with all new LED CAN-BUS bulbs from ALLA Lighting

Compatible Vehicles: 2018 Ford EcoSport.

Tools Needed for Installation: a slotted screwdriver, a flat trim tool and a curved trim tool.

The Following Information shows step by step the installation instructions on how to install front turn signal LED lights.

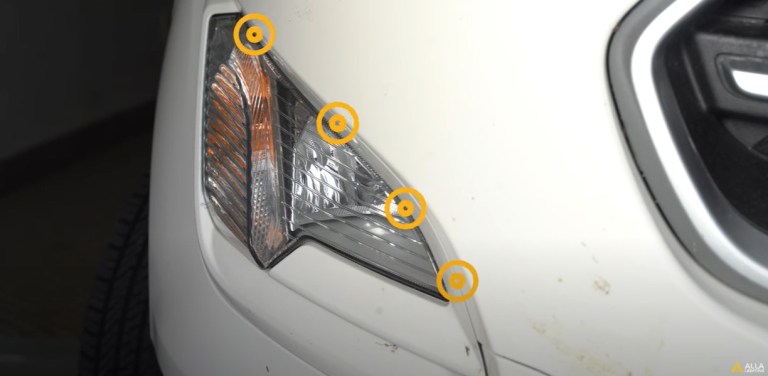

Step #1: remove the multiple clips around the light housing using the flat trim tool

Change | Replace 2018 Ford EcoSport Front Turn Signal Lights, LED Install 2

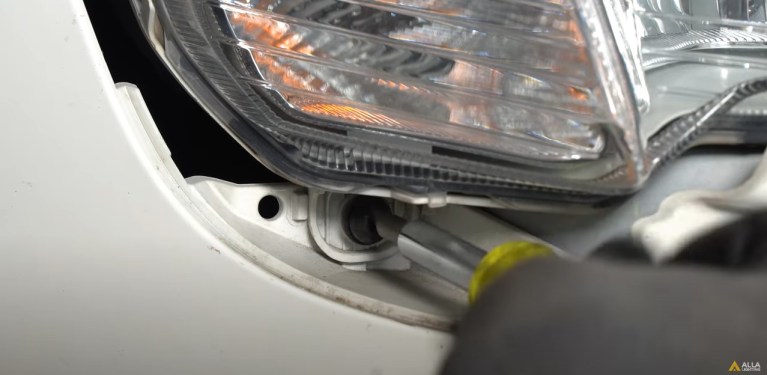

Step #2 remove the screw at the bottom with the slotted screwdriver

Change | Replace 2018 Ford EcoSport Front Turn Signal Lights, LED Install 3

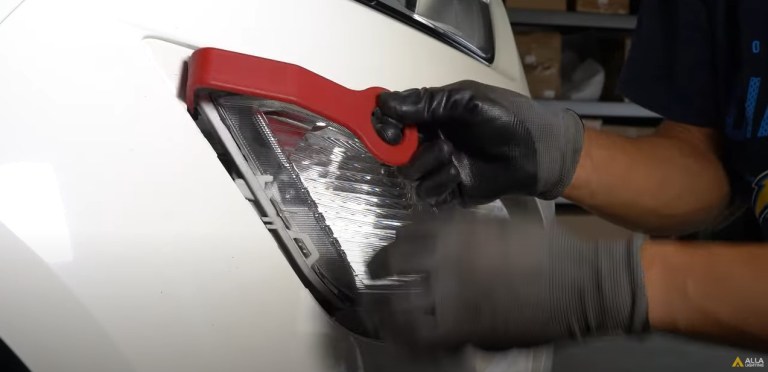

Step #3: pull the housing towards the front with the curved trim tool

Change | Replace 2018 Ford EcoSport Front Turn Signal Lights, LED Install 4

Step #4: push on the side tab of the wire connector and pull it off the socket

Change | Replace 2018 Ford EcoSport Front Turn Signal Lights, LED Install 5

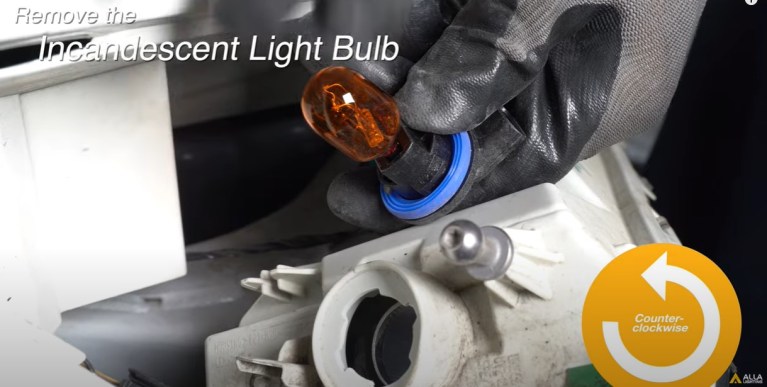

Step #5: rotate the socket counterclockwise to remove it

Change | Replace 2018 Ford EcoSport Front Turn Signal Lights, LED Install 6

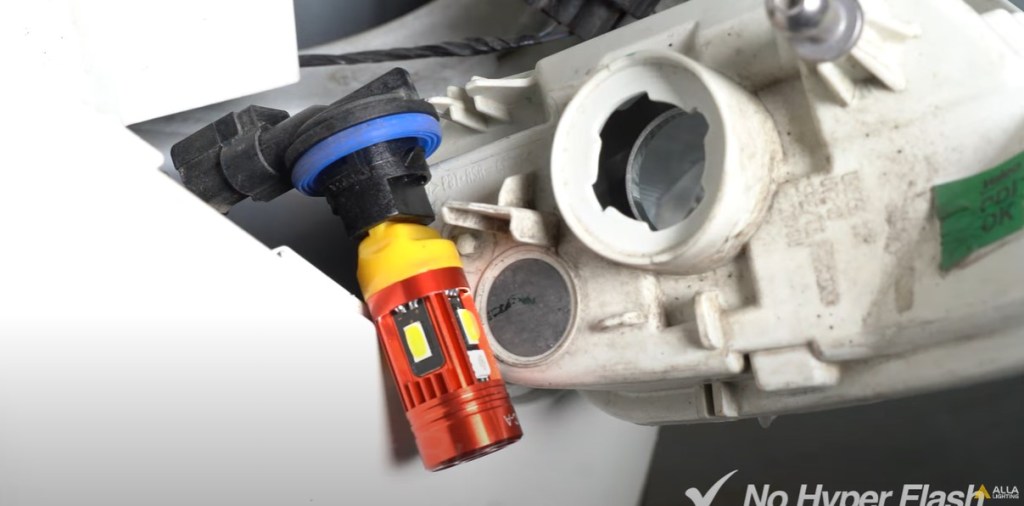

Step #6: plug the LED bulb and test it

Change | Replace 2018 Ford EcoSport Front Turn Signal Lights, LED Install 7

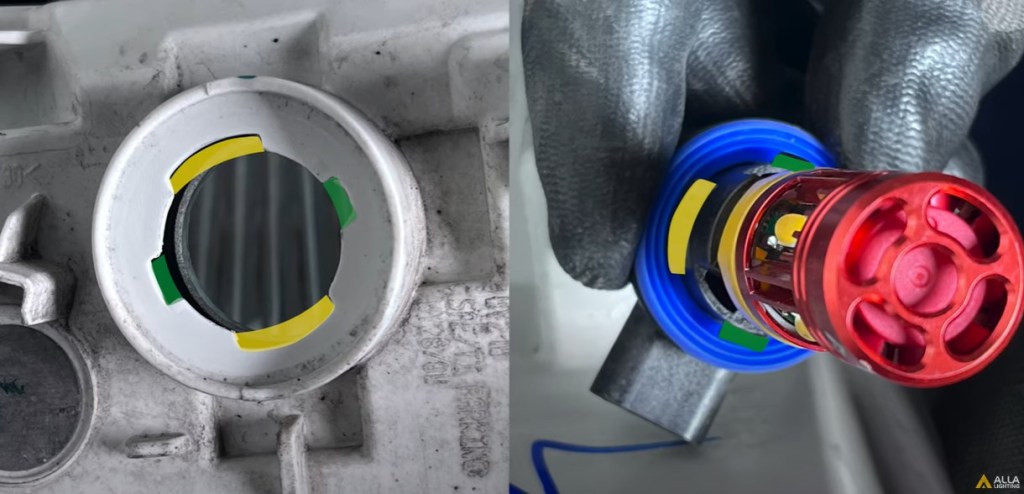

Step #7: install the LED bulb – line up the tabs on the socket with the housing

Change | Replace 2018 Ford EcoSport Front Turn Signal Lights, LED Install 8

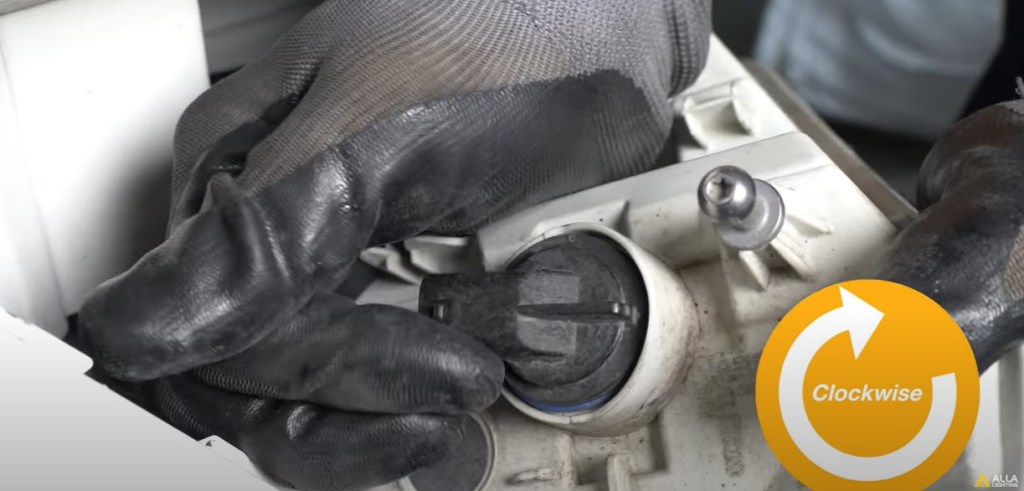

Step #8: push it in and rotate clockwise to lock it

Change | Replace 2018 Ford EcoSport Front Turn Signal Lights, LED Install 9

Step #9: plug the wire connector back in

Change | Replace 2018 Ford EcoSport Front Turn Signal Lights, LED Install 10

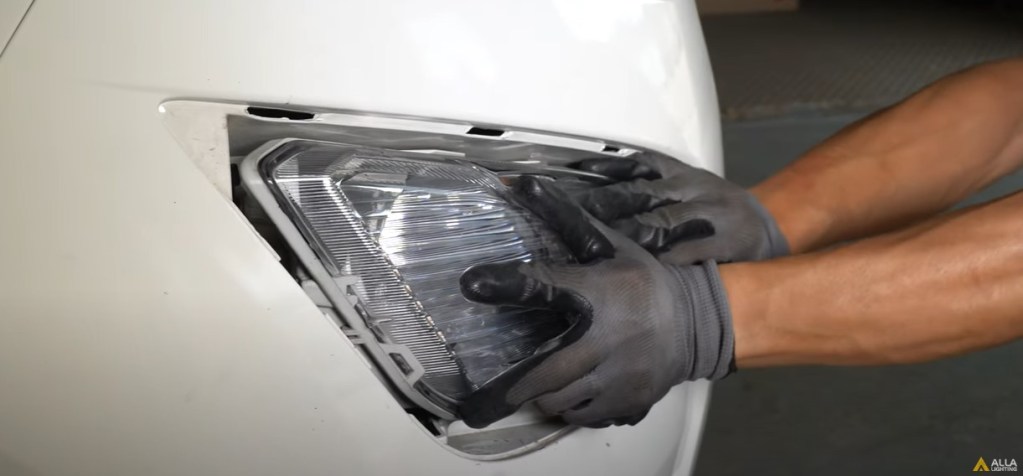

Step #10: slide the housing back in. It may need a pretty big push to lock in

Change | Replace 2018 Ford EcoSport Front Turn Signal Lights, LED Install 11

Step #11: replace the screw at the bottom

Change | Replace 2018 Ford EcoSport Front Turn Signal Lights, LED Install 12

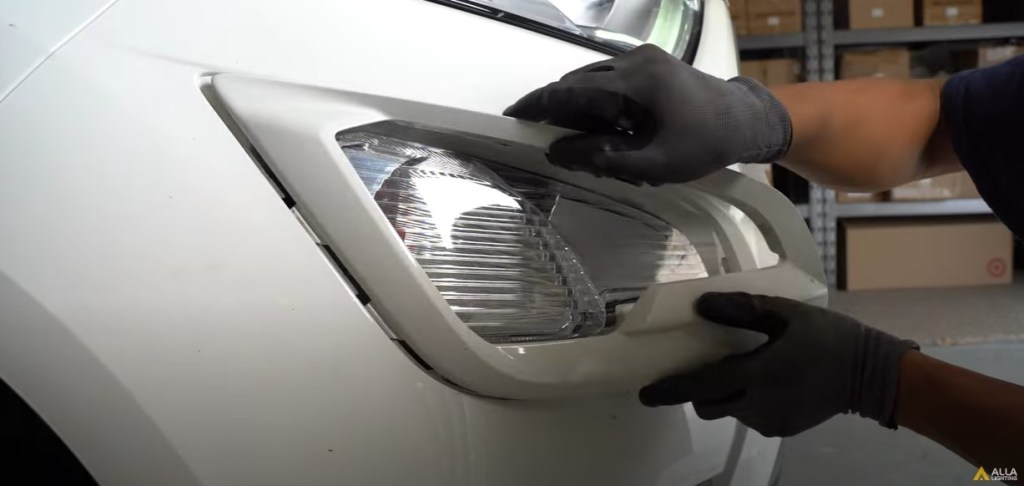

Step #12: line up the clips on the trim all the way around the housing and push them until you hear them click into place

Change | Replace 2018 Ford EcoSport Front Turn Signal Lights, LED Install 13

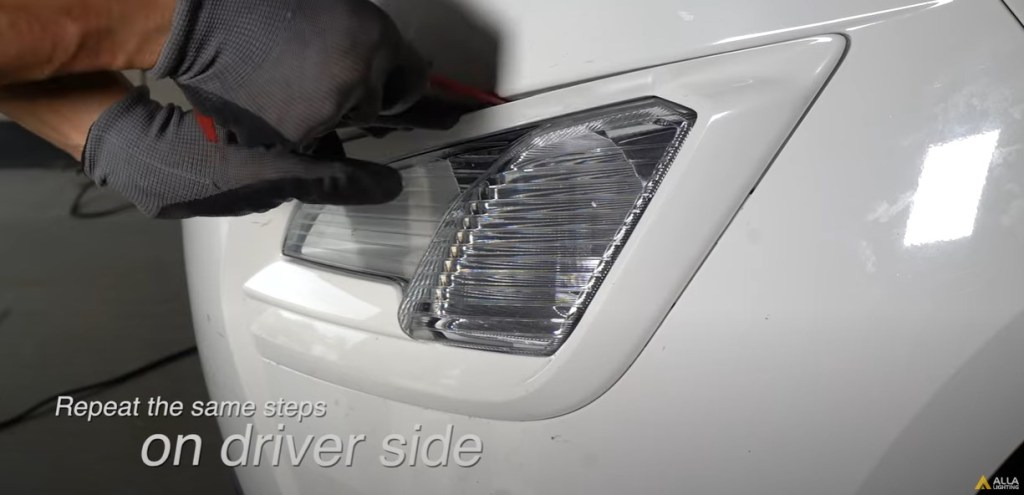

Step #13: repeat same steps on the other side

Change | Replace 2018 Ford EcoSport Front Turn Signal Lights, LED Install 14

                                                               Check out installation video

Congratulations!! Your installation is now complete in your 2018 Ford EcoSport. If you experienced any issues during your installation and unable to complete installation, please contact us for assistance. If the  LED bulbs are experiencing hyper-flashing, flickering, an error code issues, then load resistors for this application will be required to be installed. These issues occur due to the LEDs low current nature which draws much less current than original stock halogen bulbs.

Please feel free to contact us at service@allalighting.com for assistance. Our team of highly trained representatives will be available to assist and provide best solution. May also visit us at www.allalighting.com

Looking for more LED upgrades for your vehicle. Check out the below bulb guide!  For your reference only. All information below is not 100% guaranteed accurate. Please check original halogen bulb size before purchasing.

Vehicle Information Exterior Lights

Low Beam: Stock Bulb size #H11: https://allalighting.com/products/h11-led-bulbs-headlights-high-low-beam-replacement-white-h8-h9

High Beam: Stock Bulb size #HB3/9005https://allalighting.com/products/9005-hb3-led-bulbs-replacement-upgrade-halogen-lamp

Fog Light: Stock Bulb size #H8https://allalighting.com/products/al-r-h8-h11-led-fog-lights-bulbs-replacement-drl-for-cars-trucks

Front Turn Signal Light: Stock Bulb size #7444https://allalighting.com/products/canbus-t20-7440-7443-led-bulbs-amber-yellow-turn-signal-lights-7444na

Front Side Marker Light: Stock Bulb size #2825https://allalighting.com/products/2825-194-168-led-bulbs-license-plate-interior-map-dome-trunk-lights

Rear Turn Light: Stock Bulb size #7440https://allalighting.com/products/t20-7440-7443-canbus-led-bulbs-red-signal-lights-error-free-w21w-7444

Brake Light: Stock Bulb size #7443https://allalighting.com/products/7443-7440-led-lights-bulbs-smd-6k-white-amber-yellow-red

Tail Light: Stock Bulb size #7443https://allalighting.com/products/7443-7440-led-lights-bulbs-smd-6k-white-amber-yellow-red

Back-Up Reverse Light: Stock Bulb size #1156https://allalighting.com/products/ba15s-1156-led-turn-signal-brake-stop-tail-reverse-lights-bulbs

Center High Mount/ 3rd Brake Light: Stock Bulb size #LED: No single LED bulb can be replaced by Owner.

License Plate Light:  Stock Bulb size #2825https://allalighting.com/products/2825-194-168-led-bulbs-license-plate-interior-map-dome-trunk-lights

Vehicle Information Interior Lights

Interior Dome Light:  Stock Bulb size #DE3175http://allalighting.com/products/de3175-de3022-led-bulbs-interior-map-dome-trunk-lights-de3021

Interior Vanity Light:  Stock Bulb size #2825https://allalighting.com/products/2825-194-168-led-bulbs-license-plate-interior-map-dome-trunk-lights

Trunk/Cargo Light:  Stock Bulb size #2825: https://allalighting.com/products/2825-194-168-led-bulbs-license-plate-interior-map-dome-trunk-lights

Glove Box Light:  Stock Bulb size #2825: https://allalighting.com/products/2825-194-168-led-bulbs-license-plate-interior-map-dome-trunk-lights
