2018-2022 Jeep Compass Daytime Running Lights Bulbs Installation
Table of Contents
How to Install 2018-2022 Jeep Compass Daytime Running Lights Bulbs
Ready to upgrade your old halogen bulbs? Learn how to replace and complete the installation for LED light bulbs. Easy installation and tips!
The halogen interior bulbs may be too dim in your 2018-2022 Jeep Compass, which can make vision difficult, especially in bad weather or severe driving conditions. Upgrading the old halogen bulbs on your 2018-2022 Jeep Compass with new aftermarket LED bulbs can add a great new look to your vehicle and improve visibility at night for a safer driving experience.
If you choose to upgrade your old halogen bulbs to new LED bulbs, it is best to confirm you have the correct replacement LED bulb by referring to the original bulb or the vehicle’s direct owner’s manual. We will show you how to install your new ALLA Lighting LED bulbs for your Trunk Lights Bulbs.
Bulb sizes for the 2018-2022 Jeep Compass Daytime Running Lights Bulbs is # 168
The following information is step-by-step instructions on how to install your new LED PSX24W 2504 6000K Xenon White Super Bright Lights Replacement.
For this installation, you’ll need:
- A 5/16 Wrench tool.
Step #1

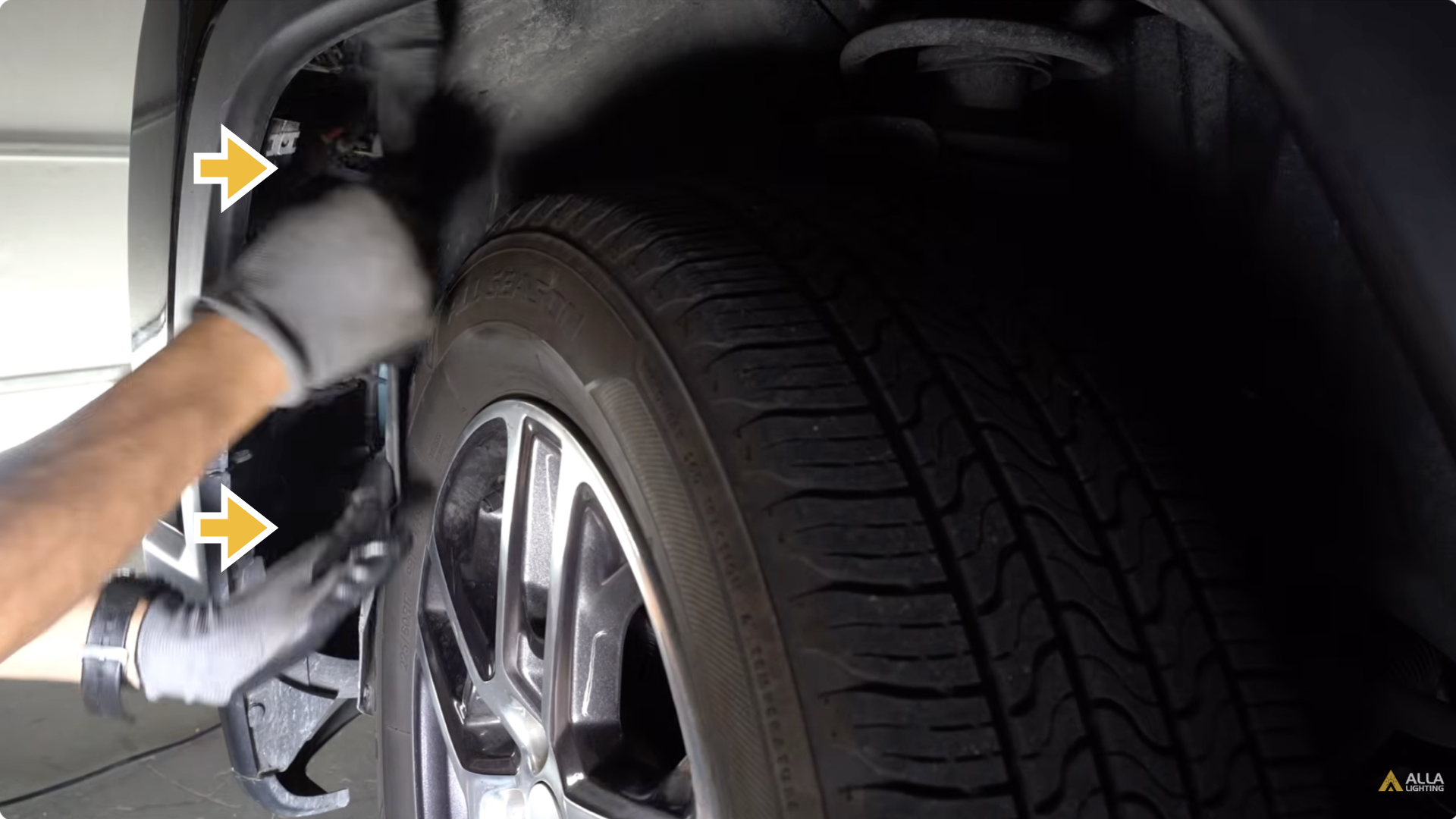

Begin in the wheel well by removing the four bolts holding in the fender liner.
Step #2
Peel back the fender liner to access the daytime running light bulb.
Step #3

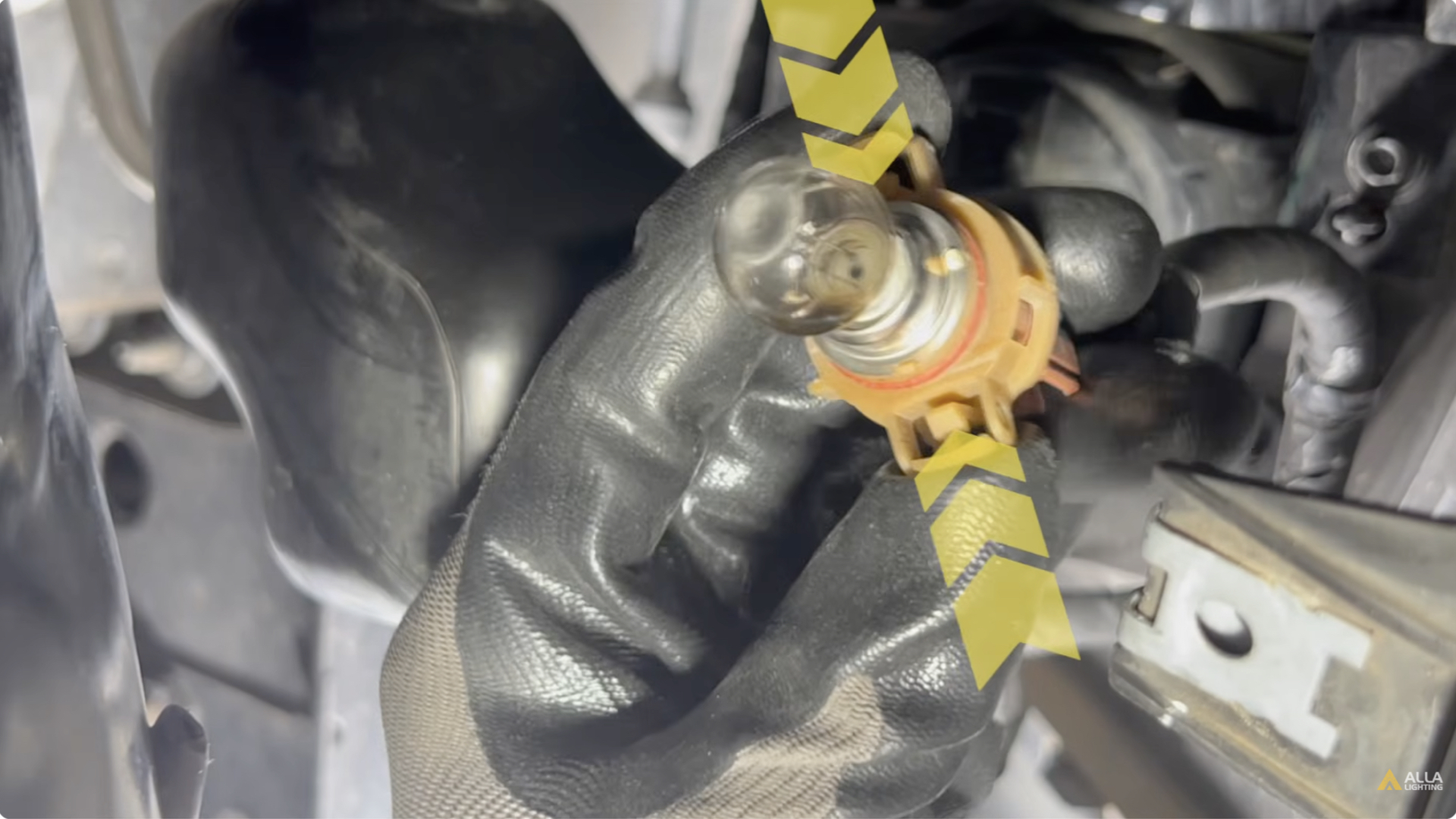

Pinch in the sides of the socket to release the locking clips and pull it out.
Step #4

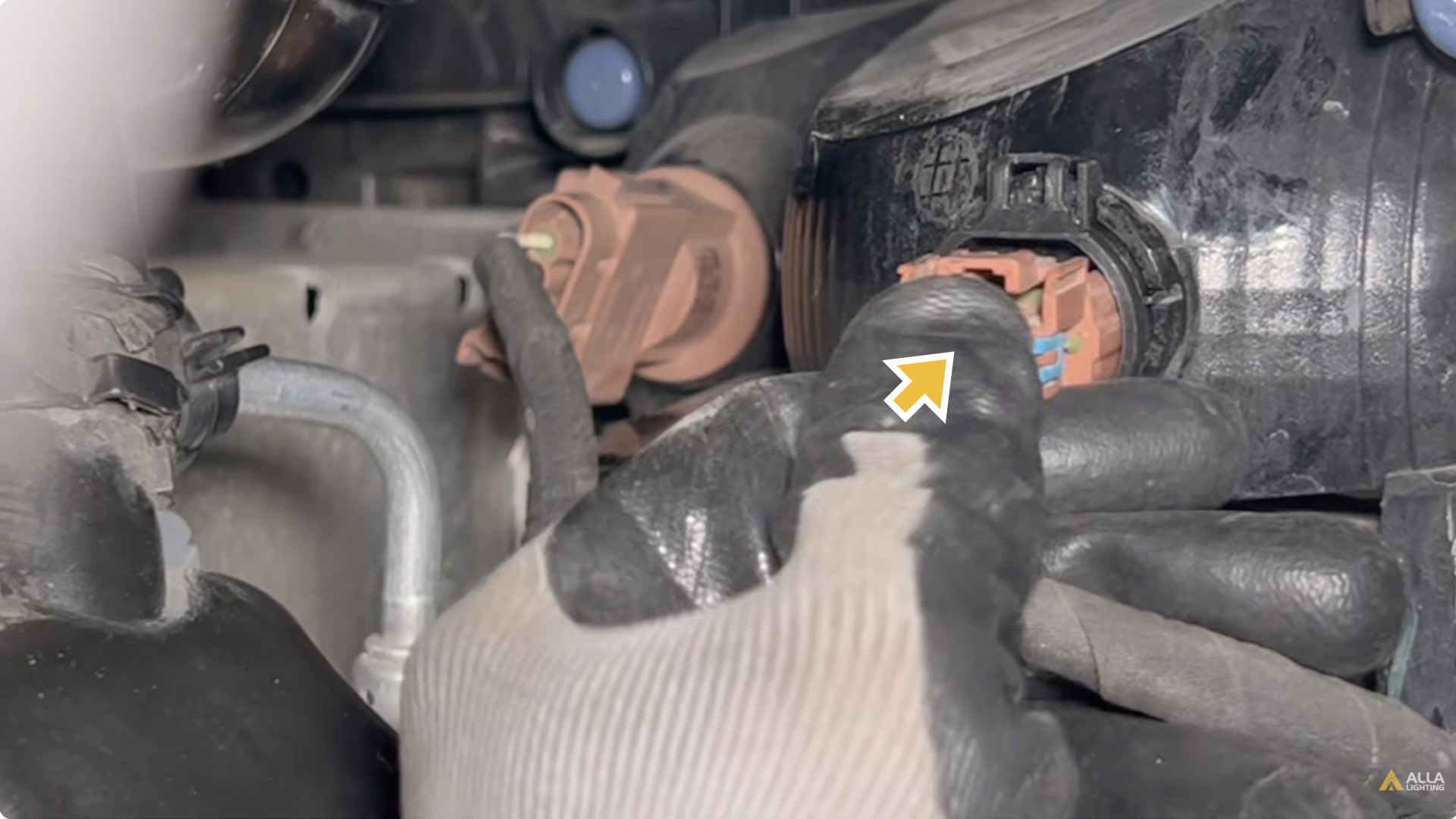

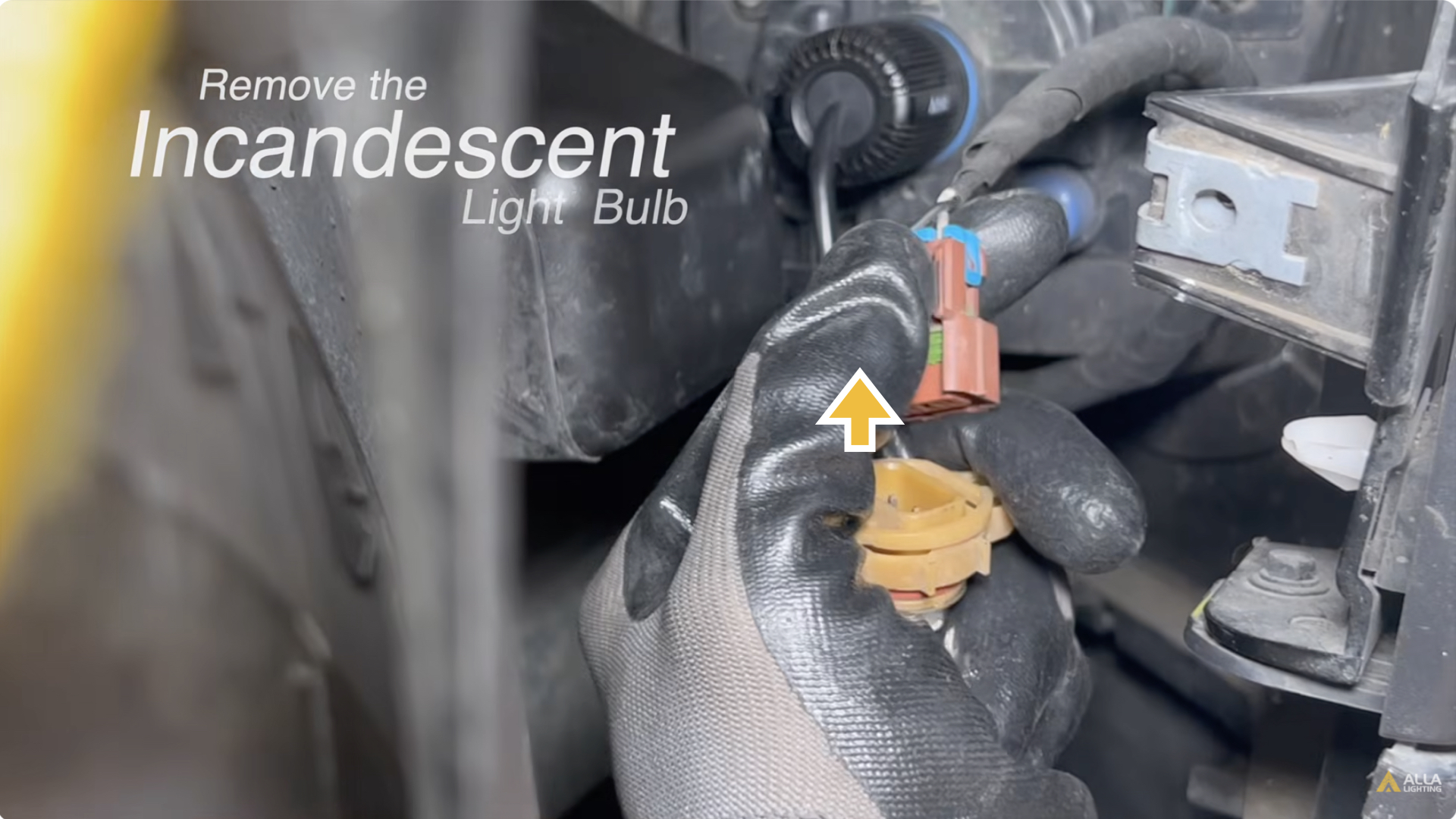

Unplug the bulb from the wire by pushing in the tab and pulling it off.
Step #5
Insert the LED into the housing until the tabs click in place.
Step #6
Plug the wire into the bulb and you’re ready to put it all back together.
Step #7

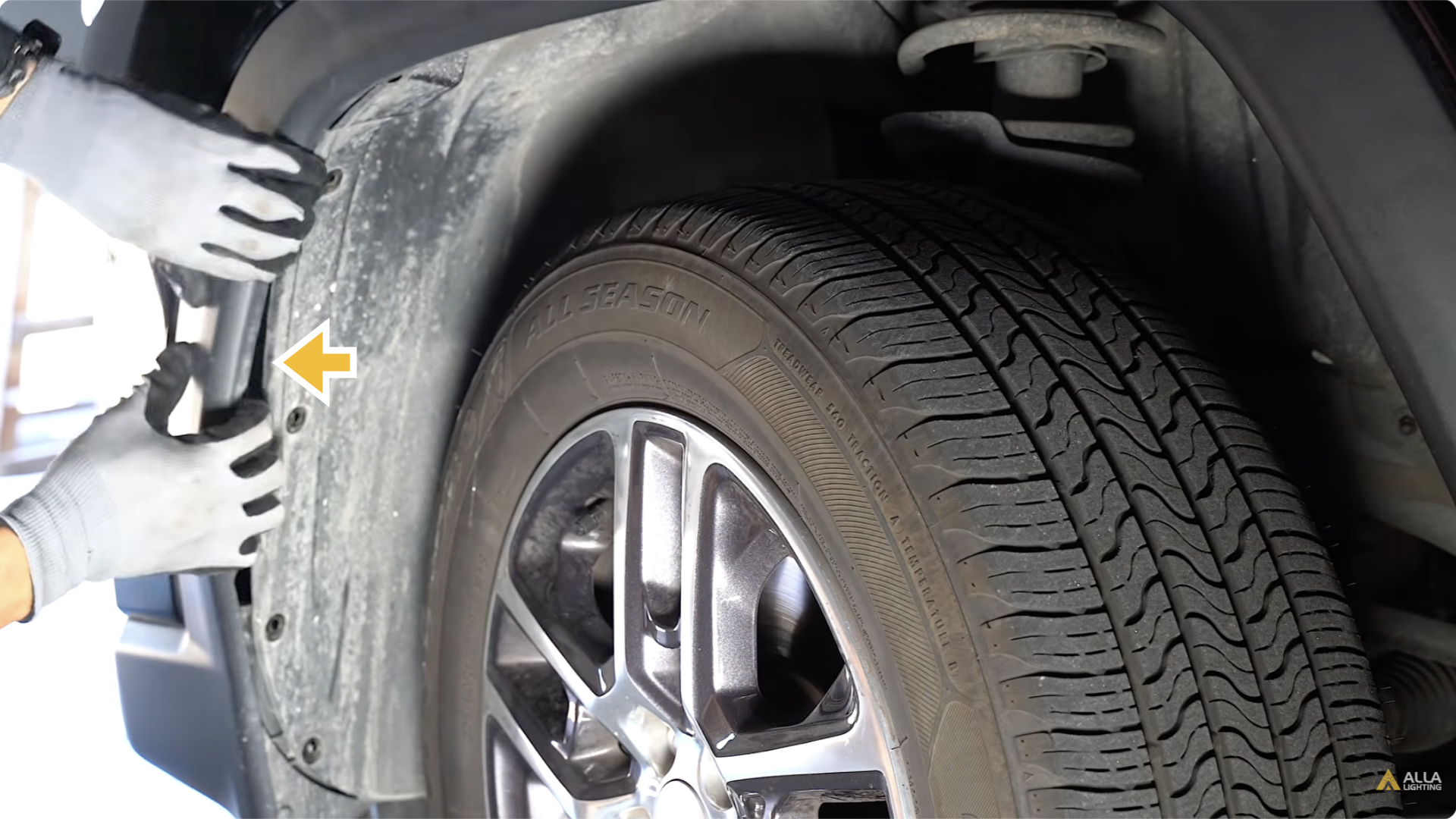

Tuck the fender liner back in and replace the four bolts.
Step #8
Now repeat the same steps on the other side.
Step #9
Remove the bolts and peel back the fender liner.
Step #10
Pinch the tabs on the bulb to remove it from the housing.
Step #11
Install the LED and plug it back in.
Step #12
Tuck the fender liner back in and replace the four bolts.

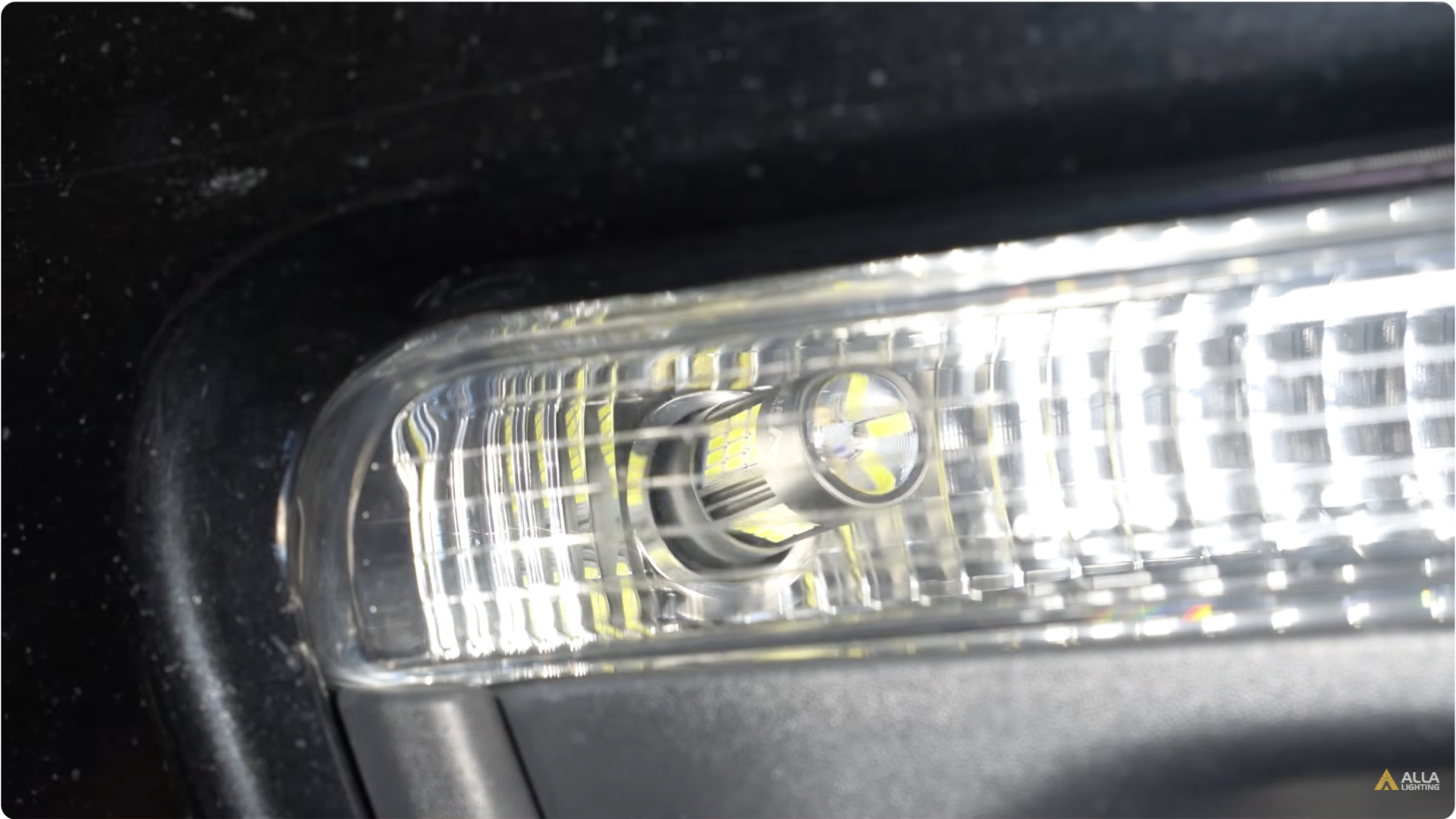

You can see the huge difference from the incandescent bulbs compared to the new LEDs.
Check out our Step by Step installation video!
Congratulations! Your LED Daytime Running Lights Bulbs Installation is now complete in your 2018-2022 Jeep Compass. If you experienced any issues during your installation and unable to complete installation, please contact us for assistance. If the LED bulbs are experiencing hyper-flashing, flickering, an error code issues, then load resistors for this application will be required to be installed. These issues can occur due to the LEDs low current nature, which draws much less current than original stock halogen bulbs.
Please feel free to contact us at service@allalighting.com for assistance. Our team of highly trained representatives will be available to assist and provide the best solution. May also visit us at www.allalighting.com
Looking for more LED upgrades for your 2018-2022 Jeep Compass? Check out the below bulb guide! For your reference only. All information below is not 100% guaranteed accurate. Please confirm the original bulb part numbers by referring to the original bulb or the vehicle’s direct owner’s manual prior to purchase.
Vehicle Information
Front Exterior Lights
Low Beam Headlight Bulb: Stock #: H11 (H11A)
High Beam Headlight Bulb: Stock #: 9005 (HB3)
High Beam and Low Beam with HID Headlamps: Stock #: HID-D3S
Front Fog Light Bulb: Stock #: H11 (H11A)
Daytime Running Light: Stock #: 2504
Front Turn Signal Light: Stock #: 7443
Rear Exterior Lights
Back Up Light Bulb: Stock #: 7440
Rear Turn Signal Light Bulb: Stock #: 7440, 7443.
Brake Light Bulb. Stock #: 7443, LED
Tail Light Bulb. Stock #: 7443, LED
Interior Lights
Map Light Bulb: Stock #: 168
Dome Light Bulb: Stock #: 6418
Luggage Compartment Light Bulb: Stock #: 6418
Vanity Mirror Light Bulb: Stock #: 6418
