2015-2018 Ford Edge High Beam LED Headlights Bulbs Installation Guide

The Reason for Ford Edge High Beam LED Headlights Bulbs Replacement

Ford Edge High Beam LED headlights bulbs are popular in use on road and off-road driving for its high performance & luxury looking. if you choose to upgrade Ford Edge High Beam stock halogen or HID headlamps to LED headlight bulbs, it will help to enhance much more visibility at night driving, also make your SUVs more luxury and easier noticed by other drivers. It will make your driving smarter, safer, brighter and better.

If your Ford Edge comes with halogen headlamps, you will find the light are quite dim, which make you hard to see in front, especially in bad weather or severe driving conditions.

Ford Edge High Beam LED headlights bulbs replacement will be necessary if you are looking for safer & better driving at night. Below we will show you how to install LED headlight bulb for 2015-2018 Ford Edge High Beam with halogen headlamps (for them, the high and High Beam are different bulbs).

Bulb Sizes for 2015-2018 Ford Edge high beam headlight bulbs: 9005HL+, HB3, 9005LL, 9005 (for the vehicle with halogen headlamps)

For 2015-2018 Ford Edge High Beam headlight bulbs: H11, H11LL (for the vehicle with halogen headlamps)

How to Install 2016 – 2018 Ford Edge High Beam LED Headlights bulbs?

2015 2016 2017 2018 Ford Edge LED Headlights Low Beam Bulb Install

Compatible vehicles for 2015 2016 2017 2018 Ford Edge.

Firstly, here is a video to show you the comparison among Halogen vs HID vs LED headlight bulbs, which will tell you the exact differences and help you make smarter decisions.

Secondly, here is a video to show you the installation guide about how to install Ford Edge LED headlights bulbs for High Beam

;

Thirdly, we will show you the installation steps as below by pictures and words

Step#1: Open the hood, locate the High Beam position as below, remove the dust cover by peeling it off.

2015 2016 2017 2018 Ford Edge High Beam LED Headlights Bulb Installation

Step#2: Rotate the High Beam bulb counter clockwise and pull it out, remove the stock halogen bulb from the headlamp housing.

2015 2016 2017 2018 Ford Edge High Beam LED Headlights Bulb Installation Removal Halogen

Step#3: Disconnect the OEM bulb with the stock harness by pushing down the tabs.



2015 2016 2017 2018 Ford Edge High Beam LED Headlights Bulb Installation Unplug Harness

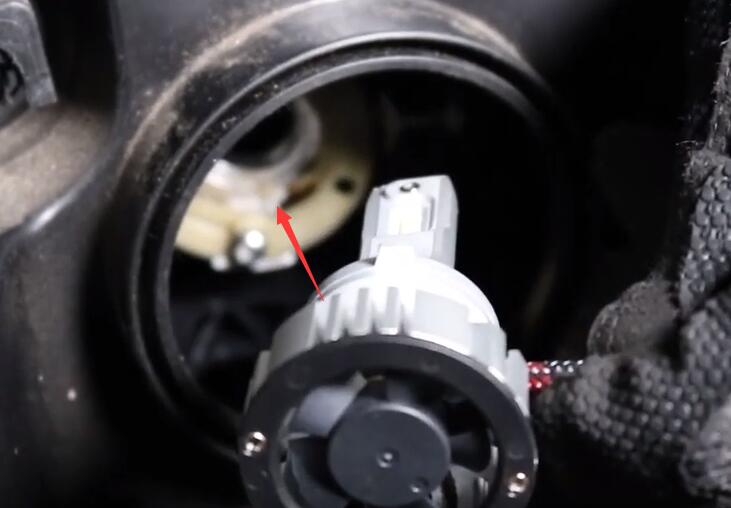

Step#4: Align the tab, insert LED headlight bulb into stock housing and twist clockwise to lock it. Please make sure the LED bulb’s led chips facing left and right by checking. If not, then it will require to adjust the beam direction.

2015 2016 2017 2018 Ford Edge High Beam LED Headlights Bulb Installation insert

Step#5: Plug the LED bulb’s connector into the stock harness

2015 2016 2017 2018 Ford Edge High Beam LED Headlights Bulb Installation Plug-in Wire Harness

Step#6: Test the LED bulb by turn on the High Beam switch to see whether it works. If it doesn’t work, please check the wiring correction or the LED headlight bulb that you have purchased is polarity version, if it is, please flip it and try to re-plug into the stock harness again to see how it works.

Step#7: When the test completed, and the LED headlight bulb works, then please reinstall back the dust cover.

Below we will show the comparison between halogen VS LED headlight bulbs for Ford Edge high beam headlight.

2015 2016 2017 2018 Ford Edge High Beam LED Headlights Bulb Installation VS Halogen

For the other passenger side, there is one extra steps to remove the plastic cover by unscrewing the 2 bolts with 10mm sockets for wider space to access the stock lamp, and for the other steps will be the same as the driver side.

If you need any assistance, please feel free to contact us by email service@allalighting.com or call us 1(909)606-2935.

For more bulbs’ applications for 2015-2018 Ford Edge trucks, please click below link by choosing different car’s year, sub-model and bulb type, and you will find the best LED bulbs options, easy and accurate search Ford Edge LED lights bulbs.

Below we also show the bulb size for different positions for 2015-2018 Ford Edge for your reference only, not 100% accurate, please check the owner manual or the stock lamp to double confirm it before purchasing. ( please search below bulb size directly at Alla Lighting for more product details):

High Beam Headlight (vehicle with halogen capsule headlamps): 9005
High Beam Headlight (vehicle with halogen capsule headlamps): H11
Dual Hi/High Beam Headlight (Vehicle with HID headlamps): D3S
Front Turn Signal Light Bulb: 7440A

Back Up Reverse Light Bulb: LED
Brake Light/Tail Light Bulb: LED
License Plate Light Bulb: 168
Front Side Marker Light Bulb: LED
Rear Side Marker Light Bulb: LED
Map Light Bulb: LED
Dome Light Bulb: LED
