2010 – 2020 Toyota 4Runner LED Fog Lights Bulbs Installation

Toyota 4Runner LED Fog Lights Bulbs Installation Replace

The Reason for Toyota 4Runner LED Fog Lights Bulb Replacement

Toyota 4Runner LED fog lights bulb’s upgrade becomes popular in use on road and off-road driving for its high performance & luxury looking. if you choose to upgrade Toyota 4Runner’s stock halogen to LED fog lights bulb, it will help to enhance much more visibility at night driving, also make your SUVs more luxury and easier noticed by other drivers. It will make your driving smarter, safer, brighter and better.

If your Toyota 4Runner comes with halogen fog lights, you will find the light are quite dim, which make you hard to see in front, especially in bad weather or severe driving conditions. LED fog lights bulbs replacement will be necessary if you are looking for safer & better driving at night. Below we will show you how to install LED fog lights bulbs for 2010 ~ 2020 Toyota 4Runner.

Bulb Sizes for 2010 ~ 2020 Toyota 4Runner fog lights bulb: H11 H16

How to Install Fog Lights Bulbs for 2010-2020 Toyota 4Runner?

Compatible vehicles for 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 Toyota 4Runner.

Firstly, here is a video to show you the comparison among Toyota 4Runner LED Fog lights bulbs VS halogen fog lamp, which will tell you the exact differences and help you make smarter decisions.

Secondly, here is a video to show you the installation guide about how to install Toyota 4Runner’s LED fog light bulb.

Thirdly, we will show you the installation steps as below by pictures and words:

Step#1: Locate fog light position at the bottom, and use a 10mm socket to remove the 3 tabs alongside the bottom plastic part.            Toyota 4Runner Stock Halogen Fog Lights Bulbs Removal Step 1

Step#2: Remove the plastic cover and find the bulb’s connector, disconnect the bulb by unclip the tabs’ connectors by press the connection part and pull down the connector.

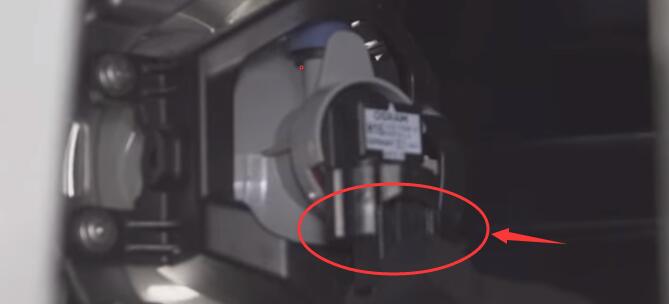

Toyota 4Runner Stock Halogen Fog Lights Bulbs Removal Step 2

Step#3: Remove the stock lamp by twist counter clockwise.

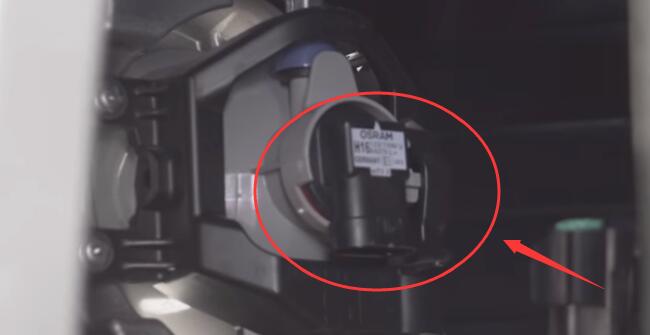

Toyota 4Runner Stock Halogen Fog Lights Bulbs Connector Removal Step 3

Step#5: Insert Toyota 4Runner LED fog lights bulb into the stock fog lamp housing, and clock-wise twist to lock it.

Toyota 4Runner Stock Halogen Fog Lights Bulbs Removal Install

Step#6: Connect the LED bulbs connector with the stock harness until hear the click noise to finish.

Step#7: Test the Toyota 4Runner LED fog lights bulb by turn on the low beam position to check whether it works (please make sure the fog light switch is on), if not, please check whether the wiring connections or if the LED fog lights bulbs you purchased are polarity type or not. If it is polarity bulbs, it may not light up, then please remove the LED bulb’s connector from its harness,rotate it and then replug into the harness, and it should work for the polarity LED headlight bulbs. Toyota 4Runer LED Fog Lights Bulbs Replacement Headlight Installation Upgrade

Step#8: Install back the plastic cover or other parts to the vehicle and that is it, plug and play, easy installation.

If you are looking for other bulb applications’ installation guide like Toyota 4Runner LED headlight, fog lights, signal lights, brake stop lights, tail light, interior lights for Toyota 4Runner, please click Toyota 4Runner LED Lights for more details.

For more bulbs’ applications for 2010 – 2020 Toyota 4Runner LED lights, please click below link by choosing different car’s year, submodel and bulb type, and you will find the best LED bulbs options, easy and accurate search by clicking Toyota 4Runner LED Lights Bulbs Fitment Guide.

Below we also show the bulb size for different positions for 2010 – 2019 Toyota 4Runner LED lights bulbs at your convenience ( please search below bulb size directly at https://allalighting.com/ for more product details):

Toyota 4Runner Front Exterior Lights:

High Beam Headlight Bulb (halogen): 9005 HB3

Low Beam Headlight Bulb (halogen ): H11

Front Fog Lights Bulb (halogen): H11 H16

Front Daytime Running Light Bulb (for 2014-2019 4Runner): 9005 HB3

Front Daytime Running Light Bulb (for 2010-2013 4Runner): 1156NA

Front Side Marker Light Bulb: 168

Front Turn Signal Light Bulb: 7444NA

Parking Light: 7444NA

Toyota 4Runner Rear Exterior Lights:

Back-Up Reverse Light Bulb: 921 W16W B

rake Stop / Tail Lights Bulb (for 2010-2013 4Runner): 7443 (LED for 2014-2019 4Runner)

Stop / Tail and Rear Side Marker Light Bulb for 2010-2013 4Runner: 7443

(LED for 2014-2019 4Runner)

License Plate Light Bulb: 168

Rear Turn Signal Light Bulb: 7440NA WY21W

Center High Mounted Stop Light/3rd Brake Light: LED

Toyota 4Runner Interior Lights:

Dome Light Bulb: DE3175

Trunk Light / Luggage Compartment Light Bulb: DE3175

Map Light Bulb: 168

Vanity Mirror Light Bulb: 175

Interior Door Light Bulb: 168

Please note, for above applications upgrade to LED bulbs, for all interior lights, back-up reverse light, low beam headlight ,fog light, front side marker light, stop light, and license plate light, just plug and play, easy installation. Yet for turn signal light, extra load resistors maybe required to avoid the signal hyper flash.
