2016 – 2020 Dodge Charger LED Headlights Bulbs Installation

Dodge Charger LED Headlights Bulbs Remove Install Replace

The Reason for Dodge Charger LED Headlight Bulb Replacement

Dodge Charger LED headlight bulb are popular in use on road and off-road driving for its high performance & luxury looking. if you choose to upgrade Dodge Charger’s stock halogen or HID headlamps to LED headlight bulbs, it will help to enhance much more visibility at night driving, also make your SUVs more luxury and easier noticed by other drivers. It will make your driving smarter, safer, brighter and better.

If your Dodge Charger comes with halogen headlamps, you will find the light are quite dim, which make you hard to see in front, especially in bad weather or severe driving conditions. LED headlight bulbs replacement will be necessary if you are looking for safer & better driving at night. Below we will show you how to install LED headlight bulb for 2016 ~ 2020 Dodge Charger with halogen headlamps (for them, the high and low beam share the same bulb). Bulb Sizes for Dodge Charger LED high beam headlight bulb: 9005HL+ HB3 9005LL 9005 (If the stock headlamp is HID, then the bulb size is D3S,  the installation will be different)

How to Install LED Headlight Bulbs for 2016 – 2020 Dodge Charger?

Compatible vehicles for 2016 2017 2018 2019 2020 Dodge Charger.

Firstly, here is a video to show you the comparison among Halogen vs HID vs LED headlight bulbs, which will tell you the exact differences and help you make smarter decisions.

Secondly, here is a video to show you the installation guide about how to install Dodge Charger’s high beam 9005 LED headlight bulbs.

Thirdly, we will show you the installation steps as below by pictures and words:

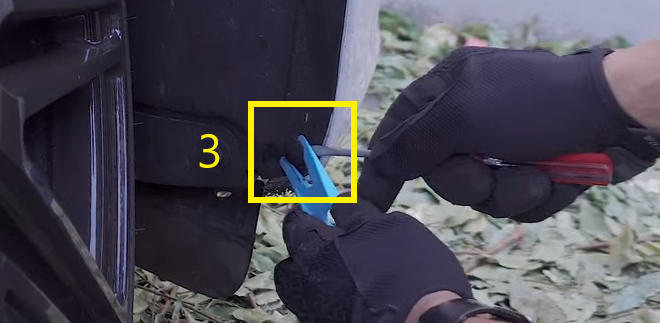

Step#1: Remove all 3 fender clips as below picture shown

Dodge Charger Stock Halogen Headlights bulbs removal Step 1 Fender Clip

Please completely remove the clips from the sockets.

Dodge Charger Stock Halogen Headlights bulbs removal Step 2

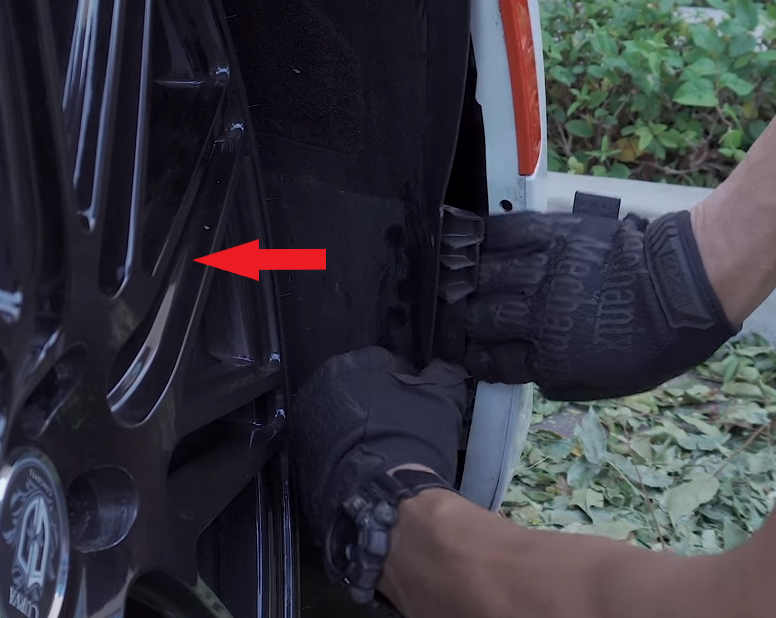

Step#2: Pull fender back to gain access to bulb.

Dodge Charger Stock Halogen Headlights bulbs Change & Remove

Step#3: Twist dust cover counter clockwise to remove.

Dodge Charger Stock Halogen Headlights bulbs Counter Clock-wise to Remove

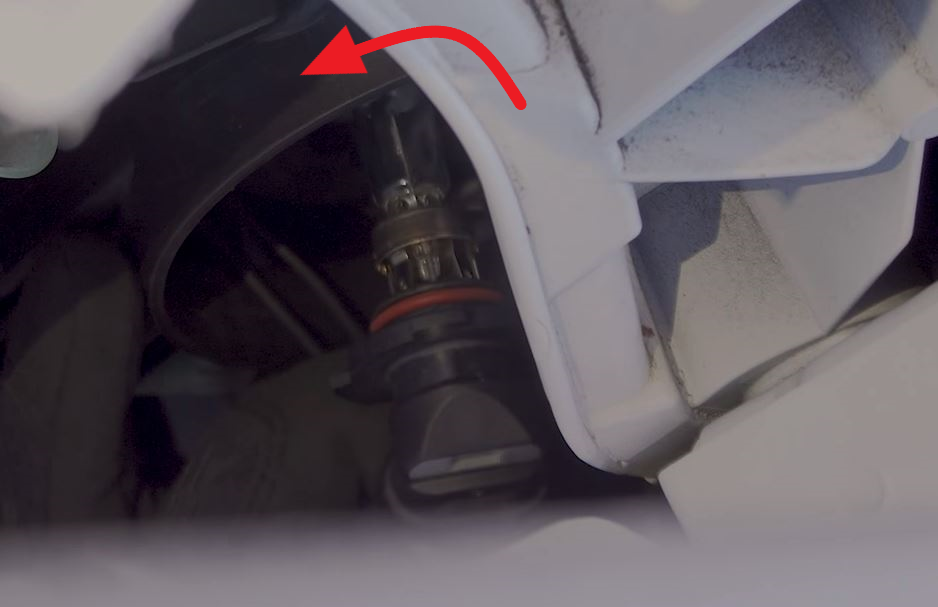

 Step#4: Twist halogen bulb counter clockwise to remove from vehicle housing.

Dodge Charger TWIST BULB COUNTER CLOCK WISE Remove OEM Headlight

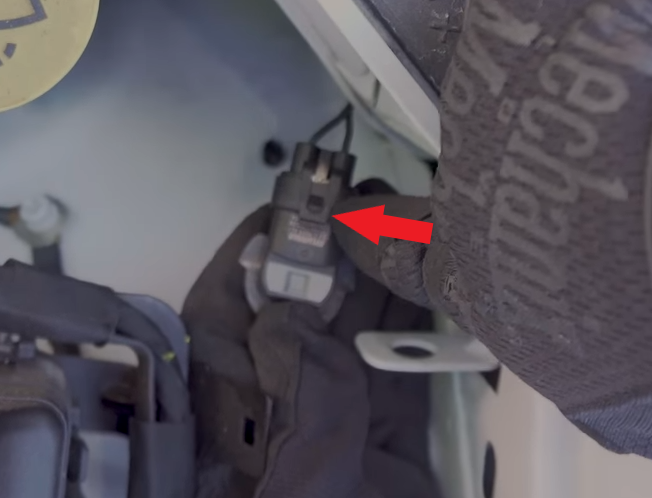

Step#5: Pull up tab to release stock lamp

Dodge Charger OEM Halogen Headlamp Remove

Step#6: Connect LED headlight bulb’s connector to stock harness.

Dodge Charger LED Headlights Bulbs' Connector Plug into Stock Harness

Step #7: Insert LED bulb into the stock headlamp’s housing, twist LED bulb clockwise to lock into vehicle’s headlamp’s housing.

Dodge Charger LED headlight Bulbs Lock Replace Install Change

Step#8: Test the LED headlight bulb by turn on the headlight position to check whether it works, if not, please check whether the wiring connections or if the LED headlight bulbs you purchased are polarity type headlight or not. If it is polarity bulbs, it may not light up, then please remove the LED bulb’s connector from its harness,rotate it and then replug into the harness, and it should work for the polarity LED headlight bulbs.

Step#9: Place LED driver part inside the headlamp’s housing and twis dust cover clockwise to lock into its place.

Dodge Charger LED Headlight Bulbs Kits Into Headlamp Housing

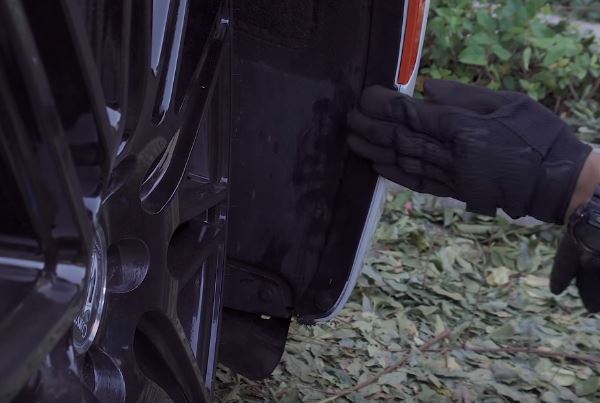

Step #10: Reattach fender cover and and clips. For the other side, please repeat the same process.

Dodge Charger LED Headlights Conversion Kits Bulbs Installation Last Step

Yet if after installing LED headlight bulbs, you meet the dodge charger LED headlight bulb’s flickering on and off, or there is error code, then it will require to install extra load resistors or decoders to avoid the issue, this happens due to the led bulbs draw much less current than stock lamps.

If you are looking for other bulbs applications’ installation guide like Dodge Charger LED fog lights, signal lights, brake stop lights, tail light, interior lights, please click Dodge Charger LED Lights for more details.

Below we also have some photos to show the light’s performance difference between halogen bulb and LED headlight bulbs.

Dodge Charger LED Headlights Bulbs VS Halogen Headlamp Comparison

They can show you how much safer, brighter and safer to drive with LED headlight bulbs, especially drives with Alla Lighting LED headlight bulbs. Alla Lighting is short for advanced LED lights for Automotive cars, trucks, motorcycles, SUVs, Vans.. Currently we have promoted the brightest & mini design FL-BH led headlight bulbs with lumens up to 12500lm for both LED headlights bulbs, and working power is 45W per LED headlight bulbs, it covers below bulb sizes: H1, H7, H4/9003/HB2, H8/H9/H11, H13/9008, 9004/HB1, 9005/HB3/

For more vehicle’s positions’ led bulbs options for 2016-2020 Dodge Charger, please click below Dodge Charger by choosing different car’s year, submodel and bulb type, and you will find the best LED bulbs options, easy and accurate search.

Below we also show the bulb size for different positions for 2016-2019 Dodge Charger for your reference only, not 100% guaranteed accuracy, please check the owner manual to double confirm it before purchasing. ( please search below bulb size directly at Alla Lighting for more product details):

Exterior Lights:
High/Low Beam Headlight Bulbs (Halogen): 9005
High/Low Beam Headlight Bulbs (HID): D3S
Front Fog Light Bulbs: LED
Front Park/Turn Signal Lamp: LED
Front Side Marker Light Bulb: LED
Rear Tail Lamp: LED
Rear Stop/Turn Signal Lamp: LED
Rear Side Marker Light Bulb: LED
Backup Reverse Light Lamp: LED
Center High-Mount Stop Lamp: LED
License Plate Light Lamp: LED

Interior Lights:
Dome Light Bulb: 578
Map Light Bulb: 578
Trunk / Cargo Area ( Compartment ) Light Bulb: 562
Interior Door Light Bulb: 562
Glove Box Light Bulb: 194
Rear Courtesy / Reading Light Bulb: W5W / 2825
Overhead Console Reading Lamp: 578
Door Courtesy: 562
