2006 -20 Toyota 4Runner LED Low Beam Headlights Installation

Toyota 4Runner LED Low Beam Headlights Bulbs Install Change

The Reason for Toyota 4Runner LED Headlights Bulbs Replacement

Toyota 4Runner are popular in use on road and off-road driving for its high performance & luxury looking. if you choose to upgrade Toyota 4Runner’s stock halogen or HID headlamps to LED headlight bulbs, it will help to enhance much more visibility at night driving, also make your SUVs more luxury and easier noticed by other drivers. It will make your driving smarter, safer, brighter and better.

If your Toyota 4Runner comes with halogen headlamps, you will find the light are quite dim, which make you hard to see in front, especially in bad weather or severe driving conditions. LED headlight bulbs replacement will be necessary if you are looking for safer & better driving at night. Below we will show you how to install LED low beam headlight bulb for 2006 ~ 2020 Toyota 4Runner, PLUG-N-PLAY, easy installation.

Bulb Sizes for Low beam headlight bulb: H11 H11LL

How to Install Low Beam Headlight Bulbs for Toyota 4Runner?

Compatible vehicles for 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 Toyota 4Runner.

Firstly, here is a video to show you the comparison among Halogen vs HID vs LED headlight bulbs, which will tell you the exact differences and help you make smarter decisions.

Secondly, here is a video to show you the installation guide about how to install Toyota 4Runner’s low beam H11 LED headlight bulbs.


Thirdly, we will show you the installation steps as below by pictures and words:

Step#1: Open Toyota 4Runner’s hood, locate low beam headlight bulb’s housing which is the one close to the side marker light (not the interior one which is high beam)

Step#2: Remove the dust cover that is located at the low beam headlight’s position.

Toyota 4Runner Low Beam LED Headlight Bulb Remove Dust Cover

Step#3: Find the bulb’s connector, disconnect the bulb by unclip the 2 tabs’ connectors and pull down the connector.

Toyota 4Runner Low Beam LED Headlight Bulb H11 Connector Remove

Step#4: Remove the stock lamp by twist counter clockwise.

Toyota 4Runner Low Beam LED Headlight Bulbs ClockWise Remove

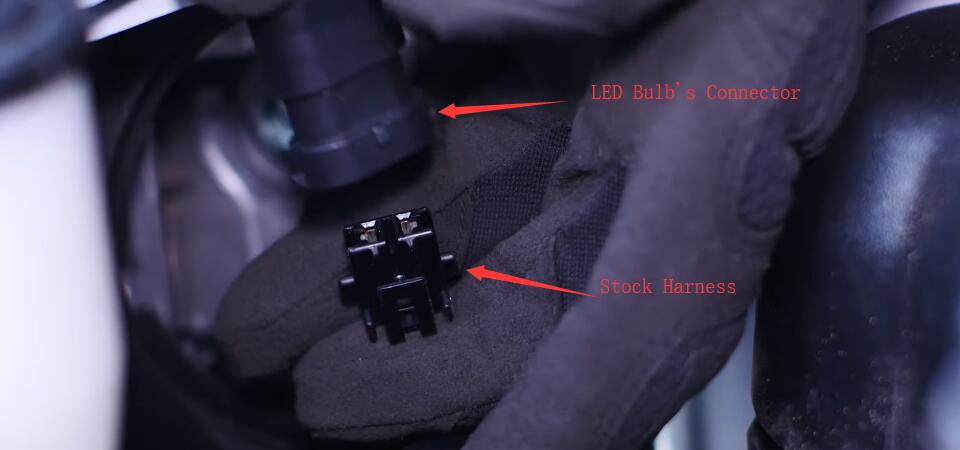

Step#5: Plug LED headlight bulb’s connector into the stock harness

Toyota 4Runner Low Beam LED Headlight Bulb H11 Connector Install

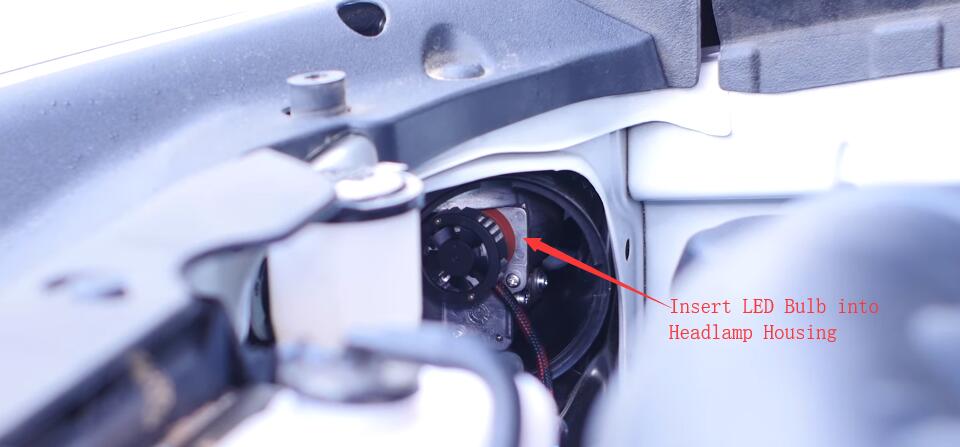

Step#6: Insert LED bulbs into the housing and twist clockwise to lock it. If there is any drivers, put the safer parts into the housing. (The parts can’t melt the plastic part or inside wiring.)

Toyota 4Runner Low Beam LED Headlight Bulb H11 Insert Housing

Step#7: Test the LED headlight bulb by turn on the low beam position to check whether it works, if not, please check whether the wiring connections or if the LED headlight bulbs you purchased are polarity type headlight or not. If it is polarity bulbs, it may not light up, then please remove the LED bulb’s connector from its harness,rotate it and then replug into the harness, and it should work for the polarity LED headlight bulbs.

Toyota 4Runer Low Beam LED Headlight Bulbs Upgrade

Step#8: Install back the dust cover into the housing and that is it, plug and play, easy installation.

If you are looking for other bulb applications’ installation guide like Toyota 4Runner LED headlight, fog lights, signal lights, brake stop lights, tail light, interior lights for Toyota 4Runner, please click Toyota 4Runner LED Lights for more details.

From the video which shows how to install low beam headlight bulb for Toyota 4Runner, the light performance of Toyota 4Runner LED headlights bulbs. Below we also have some photos to show the light’s performance difference between halogen bulb and LED headlight bulbs. They can show you how much safer, brighter and safer to drive with LED headlight bulbs, especially drives with Alla Lighting LED headlight bulbs.

Alla Lighting is short for advanced LED lights for Automotive cars, trucks, motorcycles, SUVs, Vans.. Currently we have promoted the brightest & mini design FL-BH led headlight bulbs with lumens up to 12500lm for both LED headlights bulbs, and working power is 45W per LED headlight bulbs, it covers below bulb sizes:

H1, H7, H4/9003/HB2, H8/H9/H11, H13/9008, 9004/HB1, 9005/HB3/, 9006/HB4, 9007/HB5

Halogen VS LED Headlight Bulbs for Toyota 4Runner Low Beam

For more bulbs’ applications for 2010 – 2019 Toyota 4Runner LED lights, please click below link by choosing different car’s year, submodel and bulb type, and you will find the best LED bulbs options, easy and accurate search: https://allalighting.com/shop/common/listed-by-vehicle/Toyota/4Runner.html

Below we also show the bulb size for different positions for 2010 – 2019 Toyota 4Runner LED lights bulbs at your convenience ( please search below bulb size directly at https://allalighting.com/ for more product details):

Toyota 4Runner Front Exterior Lights:

High Beam Headlight Bulb (halogen): 9005 HB3
Low Beam Headlight Bulb (halogen ): H11
Front Fog Light Bulb (halogen): H11 H16
Front Daytime Running Light Bulb (for 2014-2019 4Runner): 9005 HB3
Front Daytime Running Light Bulb (for 2010-2013 4Runner): 1156NA
Front Side Marker Light Bulb: 168
Front Turn Signal Light Bulb: 7444NA
Parking Light: 7444NA

Toyota 4Runner Rear Exterior Lights:

Back-Up Reverse Light Bulb: 921 W16W
Brake Stop / Tail Lights Bulb (for 2010-2013 4Runner): 7443 (LED for 2014-2019 4Runner)
Stop / Tail and Rear Side Marker Light Bulb for 2010-2013 4Runner: 7443 (LED for 2014-2019 4Runner)
License Plate Light Bulb: 168
Rear Turn Signal Light Bulb: 7440NA WY21W
Center High Mounted Stop Light/3rd Brake Light: LED

Toyota 4Runner Interior Lights:

Dome Light Bulb: DE3175
Trunk Light / Luggage Compartment Light Bulb: DE3175
Map Light Bulb: 168
Vanity Mirror Light Bulb: 175
Interior Door Light Bulb: 168

Please note, for above applications upgrade to LED bulbs, for all interior lights, back-up reverse light, low beam headlight ,fog light, front side marker light, stop light, and license plate light, just plug and play, easy installation.
Yet for turn signal light, extra load resistors maybe required to avoid the signal hyper flash. For high beam share the same bulb with DRL, extra anti-flickering harness maybe required to avoid the DRL flickering. the relay harness link is 9005 relay harness.

4 Comments on “2006 -20 Toyota 4Runner LED Low Beam Headlights Installation

  1. I have a 2021 TRD Off Road Premlum, 4 months old, and my LEDs have started to flicker out so I have to drive with my Fog Lights at night. I don’t see the twist off cap under the hood – any ideas on how to replace the bulbs?

  2. The low beams were a bear to install in my 2017 SR5 4Runner. Driver side barely go in there and the passenger side, I had to remove the bracket off the truck, screw in the LED then re-install the bracket with the light in it. Once that was done, the top part of the LED didn’t fit properly, it was hitting against the metal housing above the slot and I couldn’t reinstall the bracket properly so there’s a small gap. am I the only one who’s had this problem? Definitely not an easy install and there seems to be a sizing issues with the low beams.
