2004-2014 Ford F-150 LED Headlights Bulbs Installation

The Reason for Ford F150 LED Headlights Bulb Replacement

Ford F150 LED headlights bulbs are popular in use on road and off-road driving for its high performance & luxury looking. if you choose to upgrade Ford F150’s stock halogen or HID headlamps to LED headlight bulbs, it will help to enhance much more visibility at night driving, also make your SUVs more luxury and easier noticed by other drivers. (Fast locate Ford F-150 LED Lights Bulbs Guide)

It will make your driving smarter, safer, brighter and better. If your Ford F150 comes with halogen headlamps, you will find the light are quite dim, which make you hard to see in front, especially in bad weather or severe driving conditions. LED headlight bulbs replacement will be necessary if you are looking for safer & better driving at night.

Below we will show you how to install LED headlight bulb for 2004 – 2014 Ford F150 with halogen headlamps (for them, the high and low beam share the same bulb size H13 9008). (If the stock headlamp is HID, then the bulb size is D3S,  the installation will be different)

How to Install LED Headlight Bulbs for 2014 – 2014 Ford F150?

Compatible vehicles for 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 Ford F150 pick-up trucks with halogen headlamps.

Firstly, here is a video to show you the comparison among Halogen vs HID vs LED headlight bulbs, which will tell you the exact differences and help you make smarter decisions.

Secondly, here is a video to show you the installation guide about how to install Ford F150 LED headlights bulbs.


Thirdly, we will show you the installation steps as below by pictures and words, the picture is from 2004 Ford F-150:

Step#1: Open hood, locate the headlamp housing, remove all 3 screws that lock the headlamp housing by using 10mm wrench(some location maybe need extension wrench), one as below picture shown

Ford F150 F-150 High Low Beam Headlights Bulbs Installation Guide

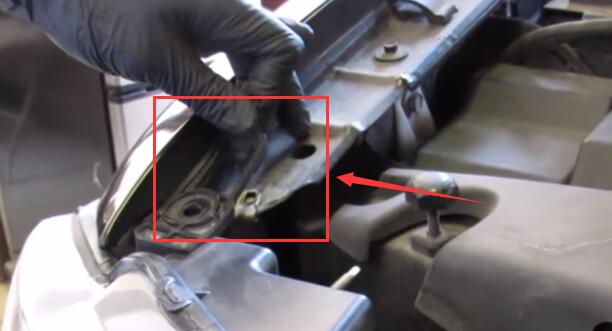

Step#2: Turn up the plastic tab as below, and pull the headlamp housing out.

Ford F150 High Low Bea Headlights Bulbs Installation Guide Removal

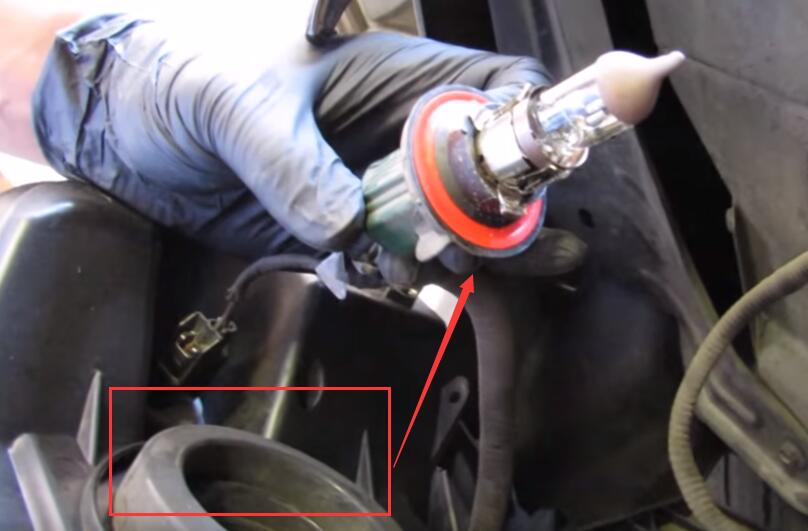

Step#3: Twist the stock bulb counter clockwise to remove out of the headlamp housing.

Ford F150 High Low Beam Headlights Bulbs Installation Guide Change

Step#4: Pull up tab to release stock lamp

Ford F150 High Low Beam Headlights Bulbs Installation Guide Remove Tab

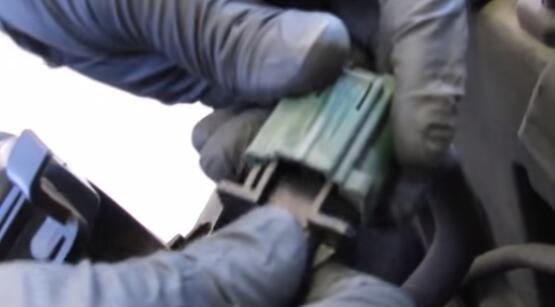

Step#5: Connect LED headlight bulb’s connector to stock harness.

Ford F150 High Low Beam Headlights Bulbs Installation Guide Connector Harness

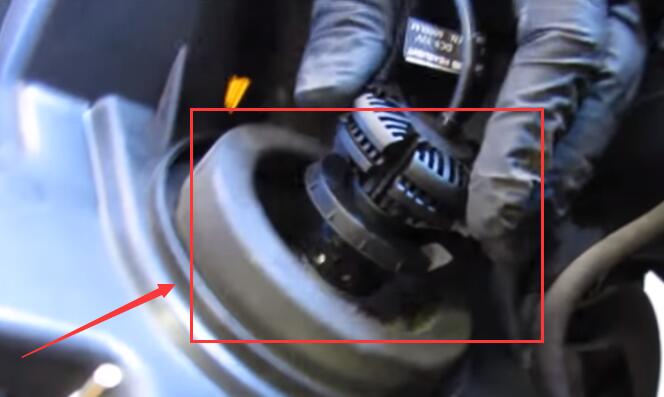

Step #6: Insert LED bulb into the stock headlamp’s housing, twist LED bulb clockwise to lock into vehicle’s headlamp’s housing.

Ford F150 High Low Beam Headlights Bulbs Installation Guide Install

Step#7: Test the Ford F150 LED headlights bulb by turn on the headlight position to check whether it works for both high and low beam, if not, please check whether the wiring connections.

Step#8: Install back the headlamp housing and lock it, also all other screws to make it safe to driving.

Yet if after installing LED headlight bulbs, you meet the Ford F150 LED headlights bulb’s flickering on and off, or there is an error code on the dash board, then it will require to install extra load resistors or decoders to avoid the issue, this happens due to the led bulbs draw much less current than stock lamps.

If you are looking for other bulbs applications’ installation guide like Ford F150 LED fog lights, signal lights, brake stop lights, tail light, interior lights, please click Ford F150 LED Lights for more details. Below we also have some photos to show the light’s performance difference between halogen bulb and LED headlight bulbs.

They can show you how much safer, brighter and safer to drive with LED headlight bulbs, especially drives with Alla Lighting LED headlight bulbs. Alla Lighting is short for advanced LED lights for Automotive cars, trucks, motorcycles, SUVs, Vans..

Currently we have promoted the brightest & mini design FL-BH led headlight bulbs with lumens up to 12500lm for both LED headlights bulbs, and working power is 45W per LED headlight bulbs, it covers below bulb sizes: H1, H7, H4/9003/HB2, H8/H9/H11, H13/9008, 9004/HB1, 9005/HB3/

For more vehicle’s positions’ led bulbs options for Ford F150, please click below Ford F150 by choosing different car’s year, submodel and bulb type, and you will find the best LED bulbs options, easy and accurate search.

Below are the bulb size guide for 2004-2014 Ford F150 trucks lights bulbs based on the applications for your reference.

Exterior Lights:
Headlight Bulb ( Hi/Lo beam halogen headlamp): H13 / 9008
Fog Light Bulb: H10 / 9145 / 9140
Front Turn Signal Light Bulb: 3157NAK / 3157-SCK
Front Side Marker Light Bulb: 168
Back-up Reverse Light Bulb: 912 / 921 or 3156, please check the stock lamp’s part number before purchasing for 912 led bulbs are different with 3156 led bulbs
Rear Turn Signal Light Bulb:
4057K / 3157
Brake (Stop) / Tail Light Bulb: 4057K / 3157
Center High-Mounted Stop Light ( 3rd Brake Light ) Bulb: 912 / 921
License Plate Light Bulb: 194

Interior Lights:
Festoon Dome Light Bulb: 578
Map Light Bulb: 194
Trunk Cargo Light/Luggage Compartment Light Bulb: 912

Please note, for above applications upgrade to LED bulbs, for all interior lights, back-up reverse light, dual high and low beam headlight ,fog light, front side marker light, and license plate light, just plug and play, easy installation.
Yet for turn signal light, extra load resistors maybe required to avoid the signal hyper flash.
