2007 – 2014 Toyota Camry Fog light LED upgrade and easy installation

2007 - 2014 Toyota Camry Fog light LED upgrade and easy installation 1

How to install

You may find your halogen bulbs are quite dim, which may make it hard to see in front, especially in bad weather or severe driving conditions. Upgrading your old halogen bulbs of your Toyota Camry to new aftermarket LED bulbs can add a great new look to your vehicle as well as  enhance  visibility at night for safer driving experience.

If choose to upgrade your old halogen bulbs to new LED bulbs, it is best to confirm you have the correct LED replacement bulb by referencing the original stock halogen bulb part number located in the vehicles direct owner’s manual or directly on the original bulb. You are always welcome to call us directly for assistance in confirming the bulb size or for any bulb suggestions.

Below we will show you how to install your new ALLA Lighting LED bulbs to your Camry’s fog light.

Bulb Sizes for 2007 – 2014 Toyota fog light is H11.

The following information is a step by step instructions on how to install your new H11-S-HCR Fog light bulbs.

Compatible Vehicles: 2007, 2008 , 2009 , 2010 , 2011 , 2012 , 2013 , 2014

Tools Required: The following will be the recommended tools required for your installation.

-10MM Wrench/socket

-Flathead Screwdriver

Lets Get Started!!!

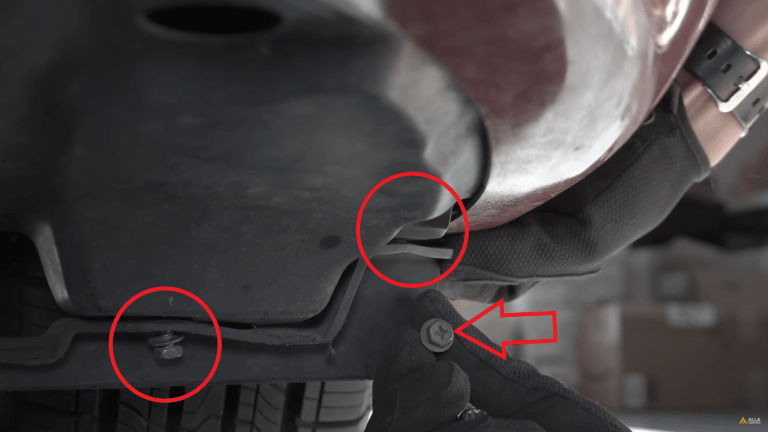

Step: 1) Start by removing the 3 bolts located underneath the bumper on the skid plate.

camry

Step: 2) Once the bolts are removed pull the skid plate back and you should be able to have enough clearance to remove the bulb.

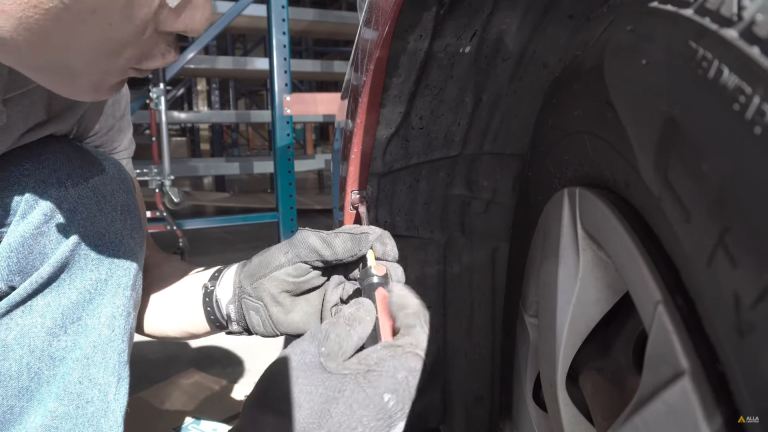

For the purpose of getting clear images we have removed the fender liner to allow for a clear line of sight.

2007 - 2014 Toyota Camry Fog light LED upgrade and easy installation 3

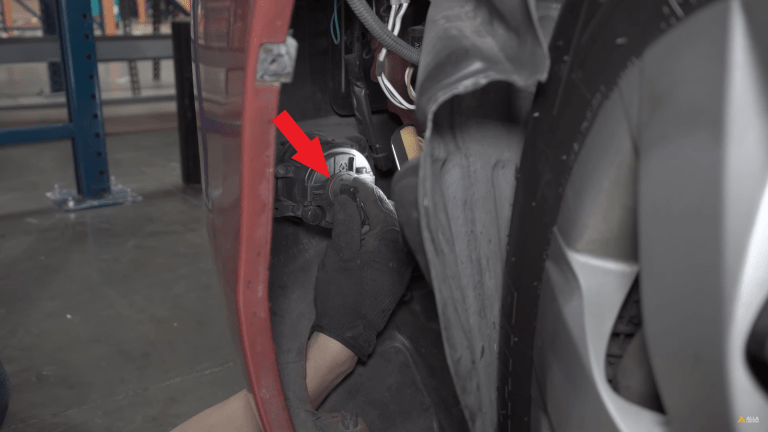

Step: 3) Remove the bulb by twisting counter clockwise until you can remove the bulb completely from the housing and unplug the bulb from the vehicle harness by pressing the retention clip and pulling the connections apart.

2007 - 2014 Toyota Camry Fog light LED upgrade and easy installation 4
2007 - 2014 Toyota Camry Fog light LED upgrade and easy installation 5
2007 - 2014 Toyota Camry Fog light LED upgrade and easy installation 6

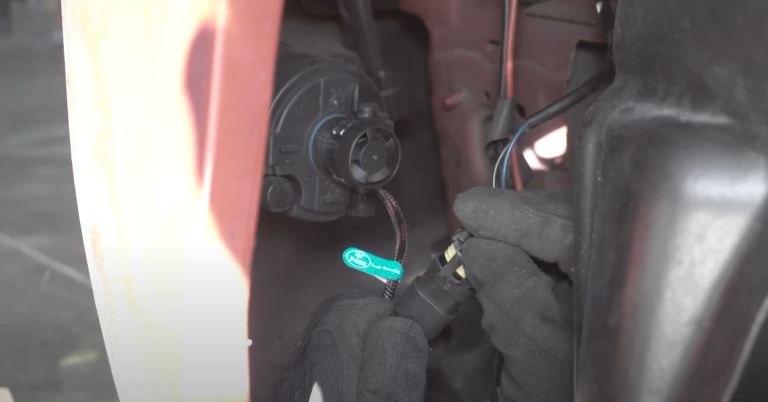

Step: 4) To install the new LED bulb simply plug the new LED bulb to the vehicle connector and place the bulb into the light fixture by lining up the tabs until you no longer feel a gap between the bulb  and headlight housing and twist clockwise to lock into place.

2007 - 2014 Toyota Camry Fog light LED upgrade and easy installation 7
2007 - 2014 Toyota Camry Fog light LED upgrade and easy installation 8

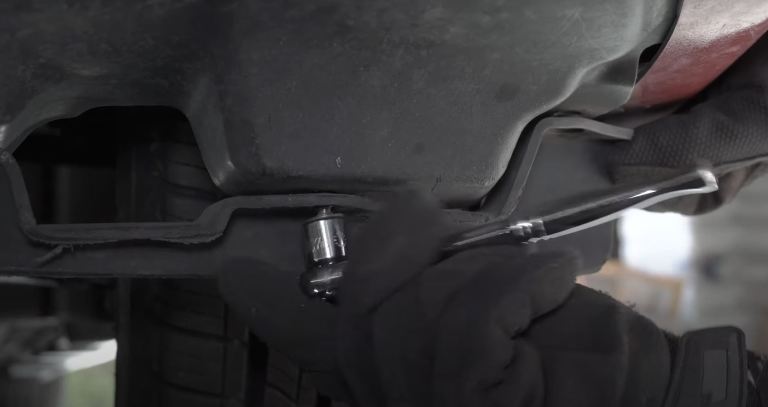

Step: 5) Reinstall the skid plate and bolts and you’re all set.

2007 - 2014 Toyota Camry Fog light LED upgrade and easy installation 9

Check out our Step by Step installation video!

Congratulations!! Your installation is now complete. If you experienced any issues in which unable to complete installation please contact us for assistance. If the  LED bulbs are experiencing hyper-flashing, flickering, an error code issues, then load resistors for this application will be required to be installed. These issues occur due to the LEDs low current nature which draws much less current than original stock halogen bulbs.

Please feel free to contact us at service@allalighting.com for assistance. Our team of highly trained representatives will be available to assist and provide best solution. May also visit us at www.allalighting.com

Looking for more LED upgrades for your vehicle. Check out the below bulb guide!  For your reference only. All information below is not 100% guaranteed accurate. Please check the vehicle owner’s manual before purchasing.

Exterior Lights:

  • Headlight Low Beam: H11
  • Headlight Low beam (If Factory HID): D4S
  • Headlight High Beam: 9005
  • Front Fog Light Bulb: H11
  • Front Turn Signal Light: 7443
  • Front Side Marker Light: T10
  • Rear Tail Light: 7443
  • Rear Turn Signal Light: 7440
  • Rear Brake Light: 7443
  • Rear Reverse Light: 921
  • Center High Mount Stop Light: (Factory LED)
  • License Plate Light: T10

Interior Lights:
