This blog is intended to show you how to replace a stock flasher relay to avoid or remove common hyper-flashing turn signal issue when upgrading to LEDs (LED turn signal bulbs). It is not intended to show how to fix a replay problem or repair a flasher. It is recommended to contact us for any questions or to obtain further flasher information.

Pros of replacing a thermal relay with an electronic flasher relay

For most vehicles, one relay will fix all four turn signal LED bulbs from hyper-flashing, plus it is cost effective. A ALLA Lighting LED relay flasher costs about $10.

Cons of replacing a thermal relay with an electronic flasher relay

Not every vehicle has a replaceable thermal (turn signal relay flasher) and it can be a lot of labor for some vehicles. Some vehicle may require you to disassemble the dashboard which is usually a lot of labor and or may have some difficulty locating the stock flasher.

Lets get started!! The Following Information shows step by step the installation instructions on how to install an electronic flasher relay

Step #1 Find out if your vehicle  has a physical flasher relay that can be replaced

Can reference the vehicle owner’s manual. At times, vehicle dealer or online forums can also provide information if vehicle is equipped with a stock turn signal relay flasher.

How to locate Electronic Signal Flasher Relay and Replace with LED Flasher 2

Step #2 Activate the turn signal and trace the tick tock sounds

This is a common method to locate the turn signal flasher.

How to locate Electronic Signal Flasher Relay and Replace with LED Flasher 3

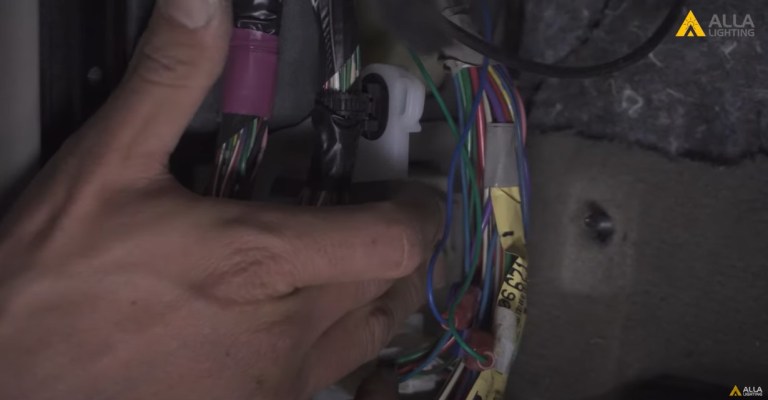

Step #3 Once you have narrowed down a few possible targets, touch and feel them one by one. Usually you should be able to feel the click from the relay itself

Tip: some online forums can provide information on location of flasher relay.

How to locate Electronic Signal Flasher Relay and Replace with LED Flasher 4

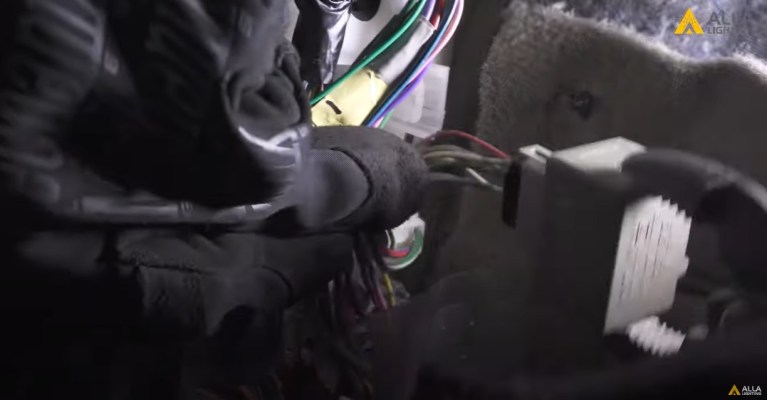

Step #4 Turn off the power to the car and remove the target relay

Don’t forget this step!

How to locate Electronic Signal Flasher Relay and Replace with LED Flasher 5

Step #5 Turn back on the power to verify. If you removed the correct relay, then there will not be clicking sound or a dash indicator (may appear as turn signal out message)

How to locate Electronic Signal Flasher Relay and Replace with LED Flasher 6

Step #6 Turn off the power one more time and install the new electronic LED relay Flasher

How to locate Electronic Signal Flasher Relay and Replace with LED Flasher 7

Step #7 Plug in relay into the wire connector

How to locate Electronic Signal Flasher Relay and Replace with LED Flasher 8

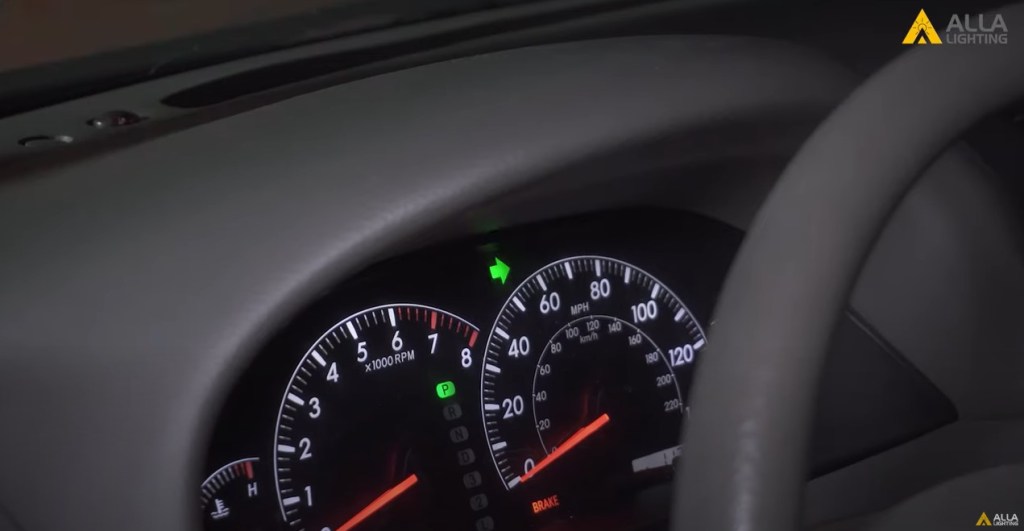

Step #8 Turn the power on and test the electronic relay flasher

How to locate Electronic Signal Flasher Relay and Replace with LED Flasher 9

Check out the step by step Video below

Congratulations!! Your installation of replacing your stock flasher relay with an all new LED relay flasher is now complete.  If you experienced any issues during your installation and unable to complete installation, please contact us for assistance.

Please feel free to contact us at service@allalighting.com for assistance. Our team of highly trained representatives will be available to assist and provide best solution. May also visit us at www.allalighting.com

Looking for some LED upgrades for your vehicle. Visit us online and use our Shop by Vehicle Tool or message us your vehicle YEAR MAKE and MODEL. Our helpful highly trained team members can assist in locating best compatible LED bulbs for your vehicle here at ALLALighting.com

ELECTRONIC FLASHER RELAYS AVAILABLE ON THE MARKET

Please confirm the relay diagram on LED relay matches the stock relay. May also use the stock relay flasher part number as reference to locate compatible LED flasher or contact our customer service team here at allalighting.com
