How to Change | Install | Replace 2018-2023 Ford EcoSport Fog Light Bulb | H8 LED replacement Upgrade halogen fog lamps.
Ready to upgrade your old halogen bulbs? Learn how to replace and complete the installation for LED Fog light bulbs in your 2018 Ford Ecosport. Easy installation and tips!
Upgrading the old halogen bulbs on your 2018 Ford EcoSport with new aftermarket LED bulbs can add a great new look to your vehicle and improve visibility for a safer driving experience.
If you choose to upgrade your old halogen bulbs to new LED bulbs, it is best to confirm you have the correct replacement LED bulb by referencing the original halogen bulb part number found in the OEM bulb or in the vehicle’s direct owner’s manual.
We will show you how to install your new ALLA Lighting LED bulbs in your low beam.
Bulb sizes for the 2018 Ford EcoSport fog light bulb is # : H8Â
Compatible Vehicles:
- 2018 Ford EcoSportÂ
Tools Needed for Installation:Â
- Slotted screwdriver
- Flat trim tool
- Curved trim tool
The following information is step by step instructions on how to install your new H8 (H11) LED Fog Light Bulbs.
Step #1
We will begin on the passenger side.

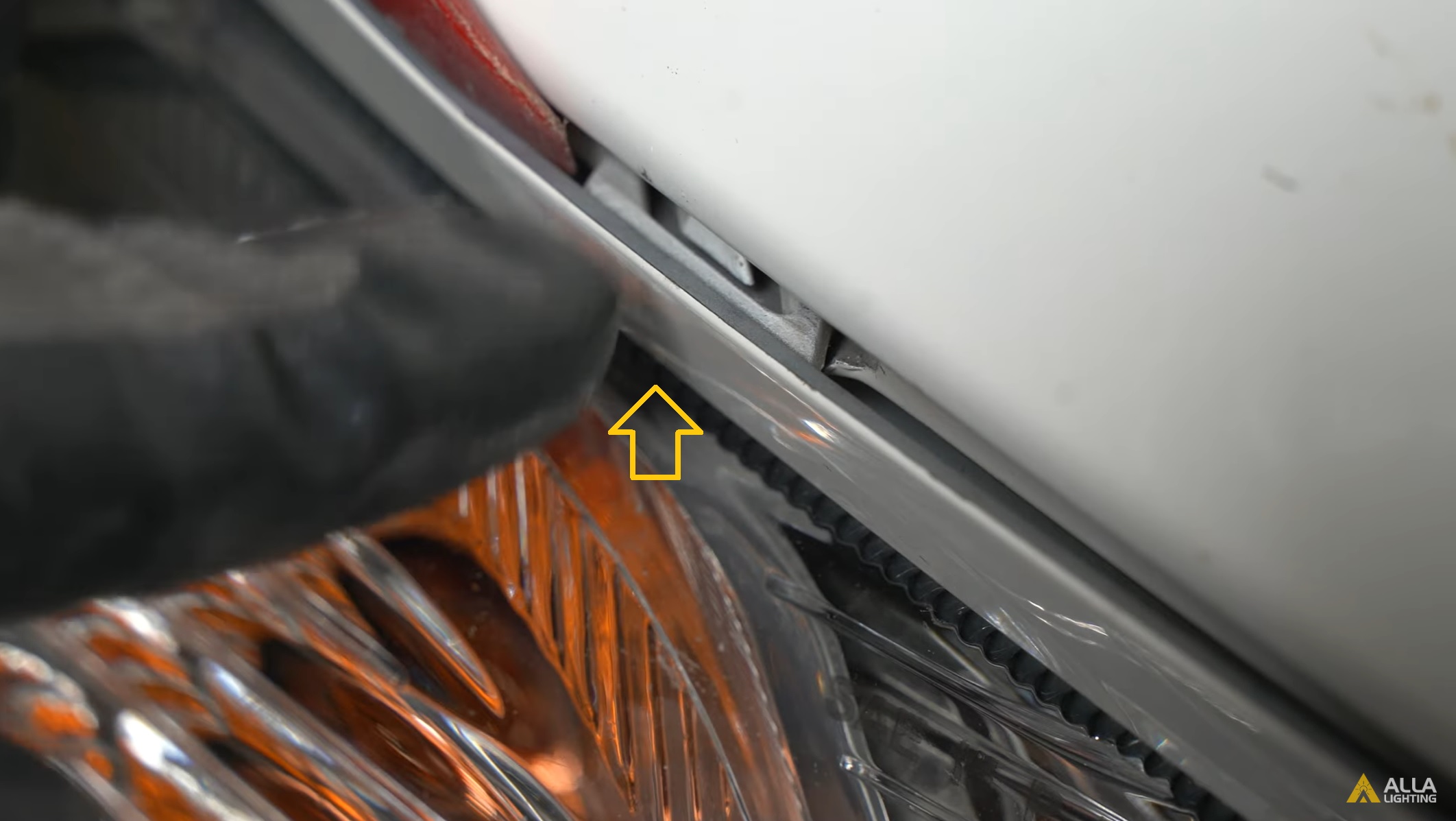

Step #2

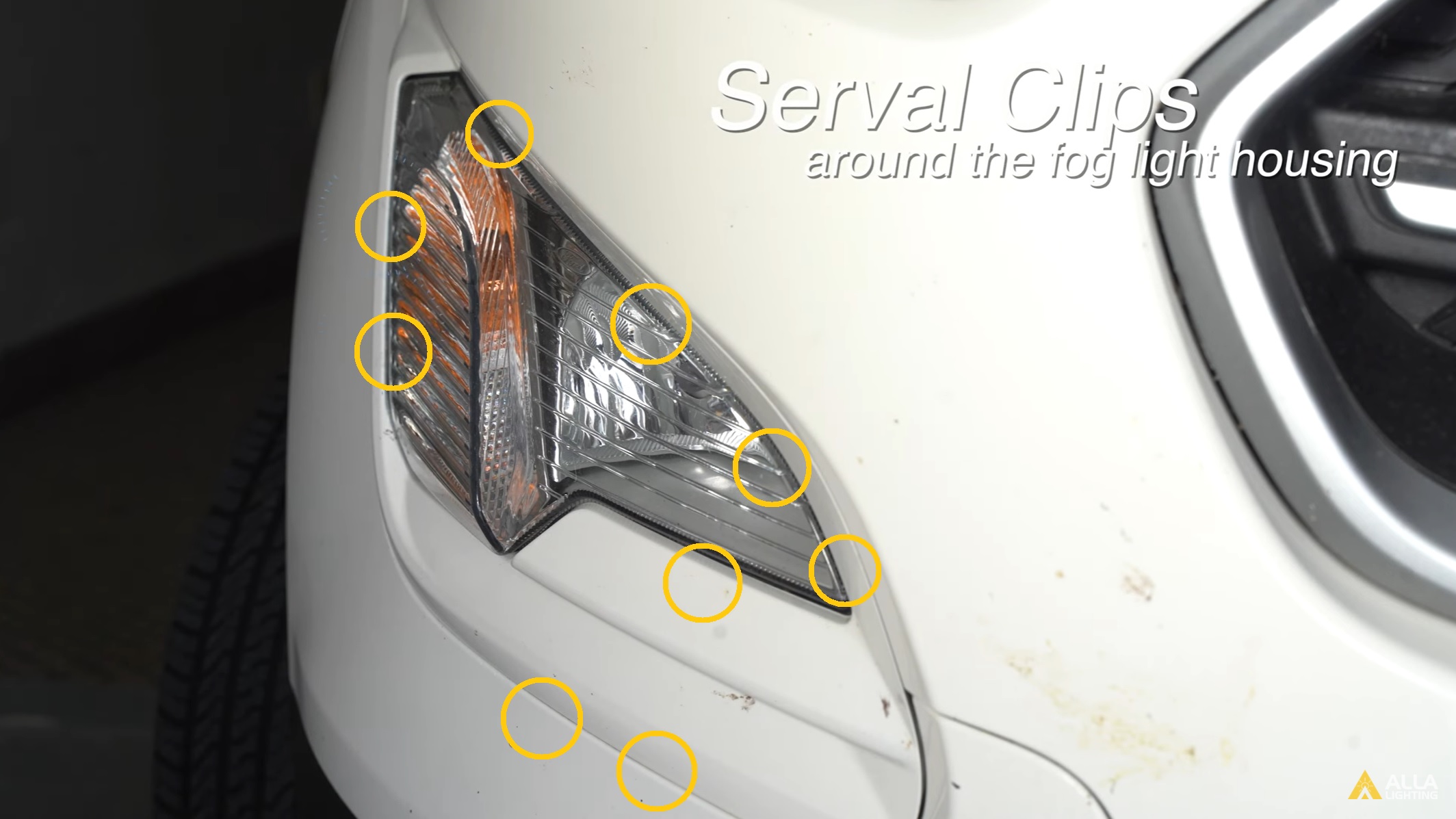

 There are several clips holding in the fog light housing. Use your flat trim tool to gently pry open the gap, and then push the clip down to pry it free.
Step #3
Repeat that around the edge for the other clips.

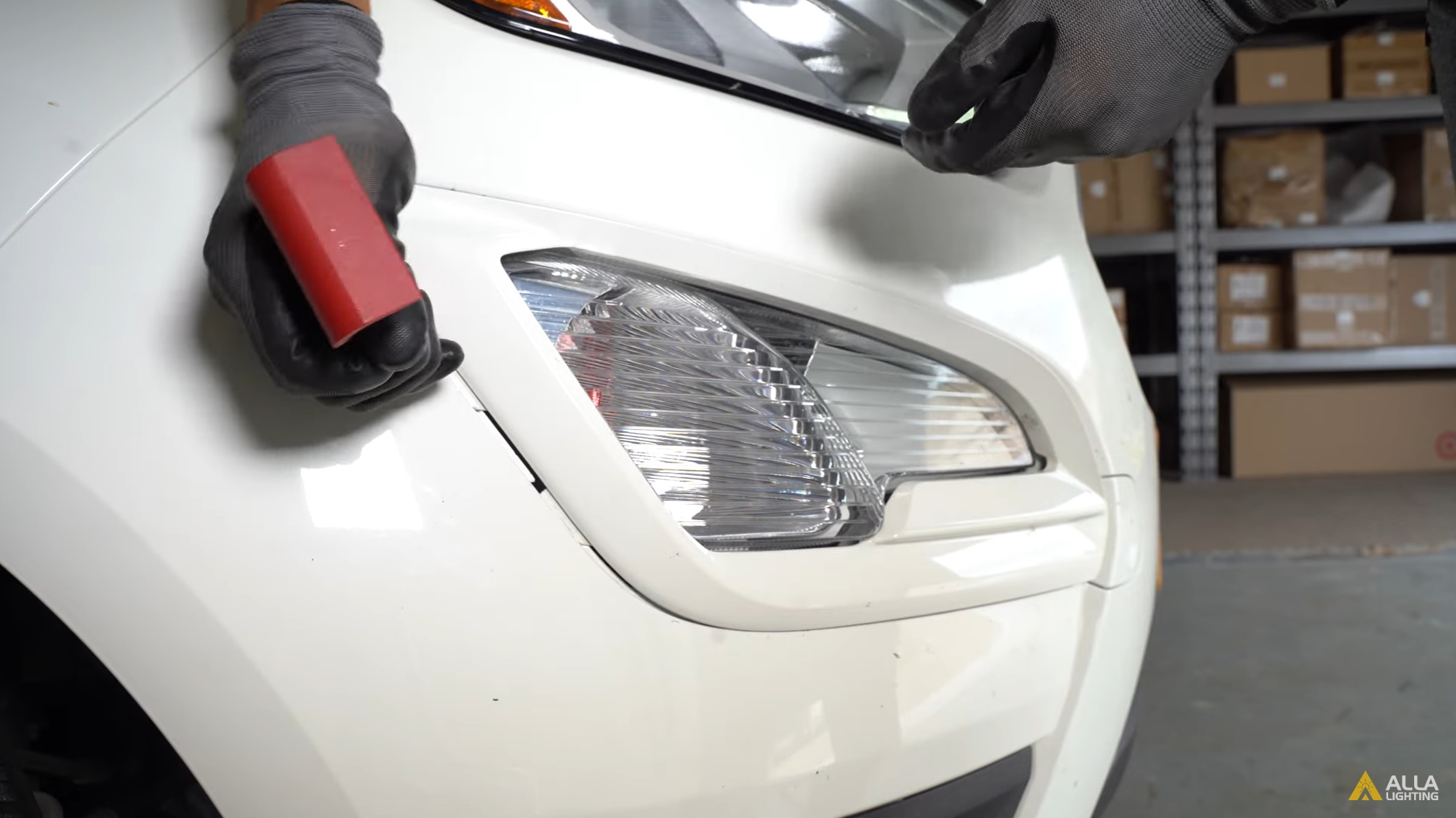

Step #4

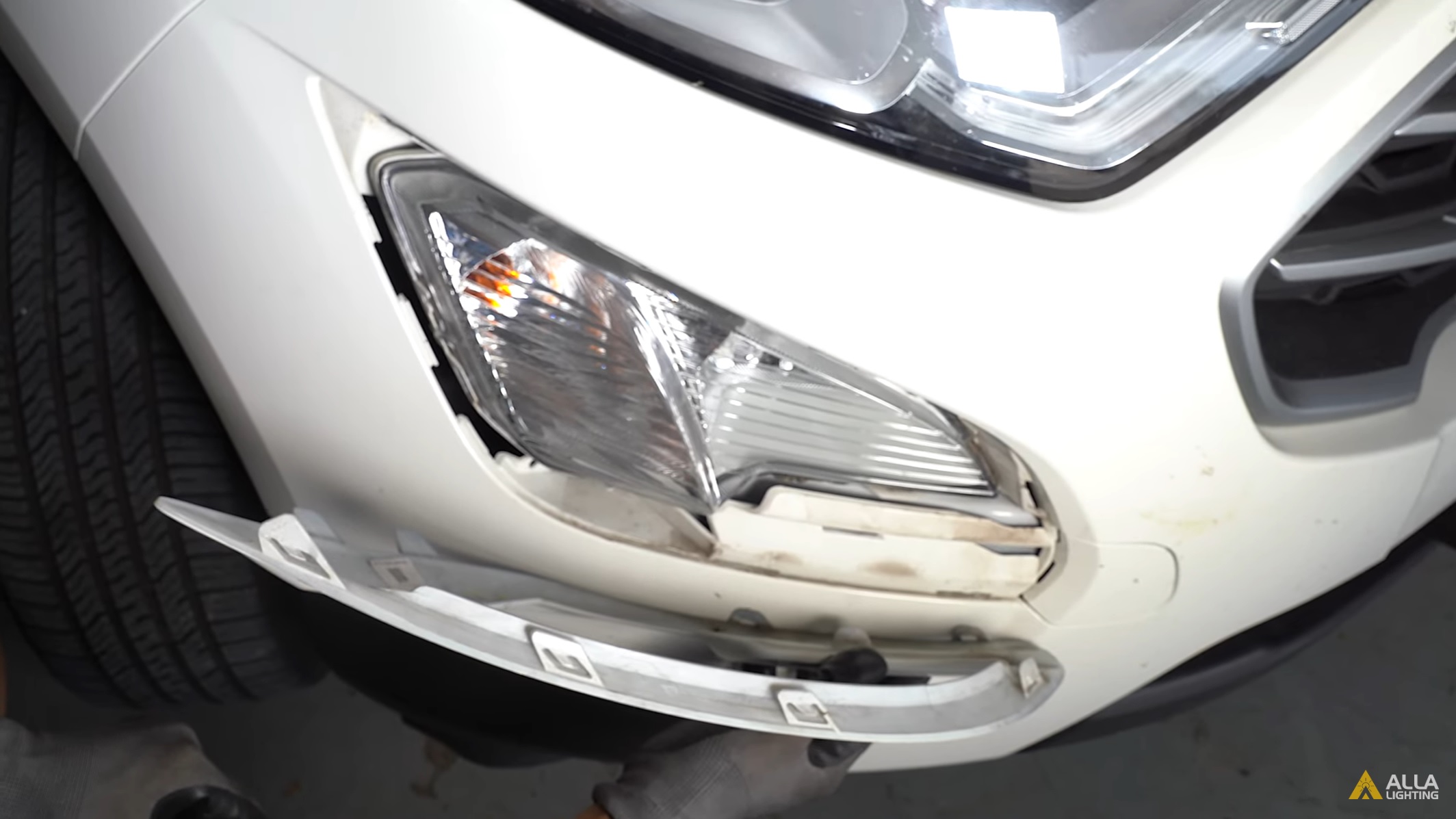

Now use the curved trim tool to free the clips on the opposite side to pry out the trim
Step #5

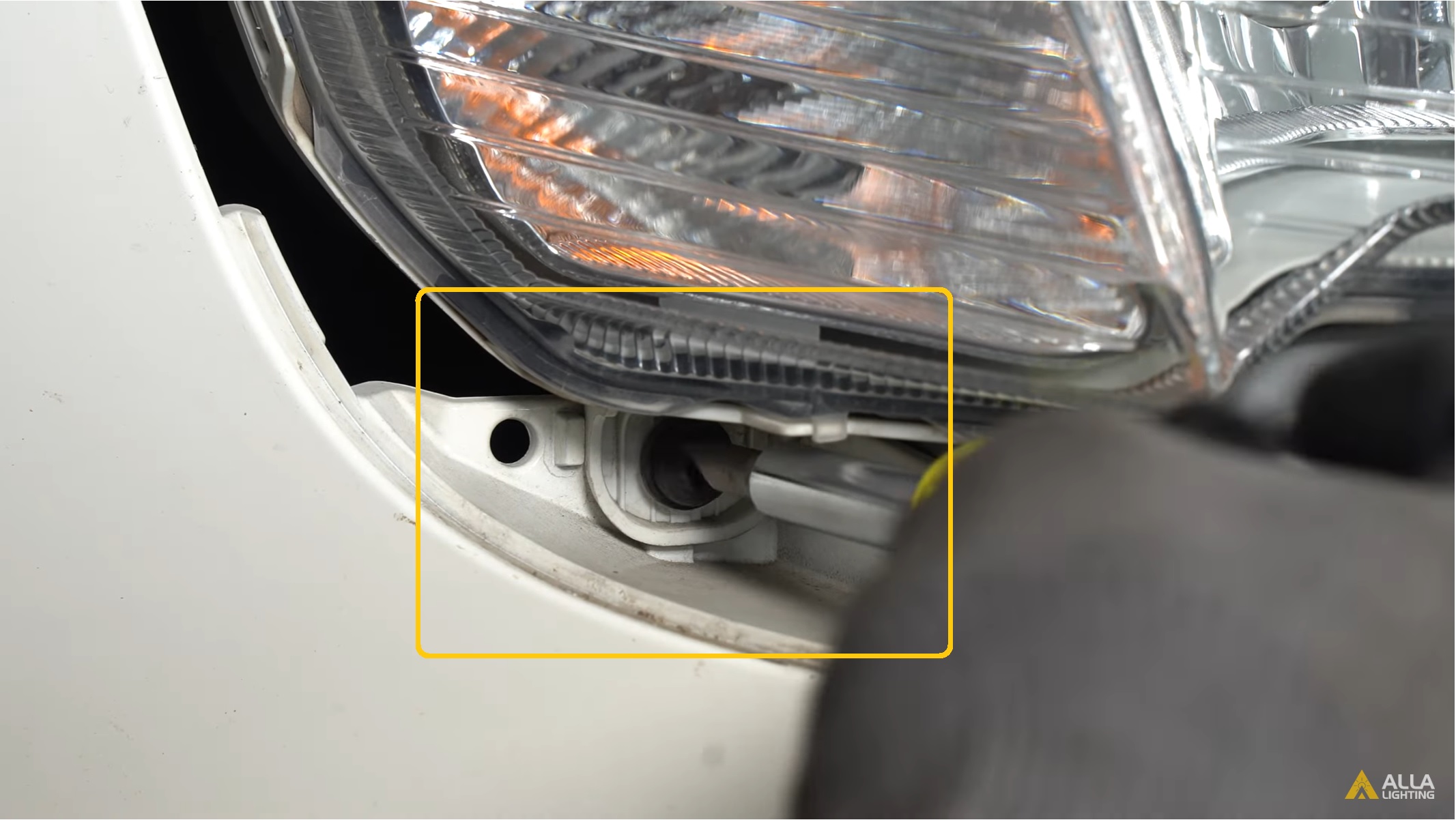

Used your slotted screwdriver to remove the screw at the bottomÂ

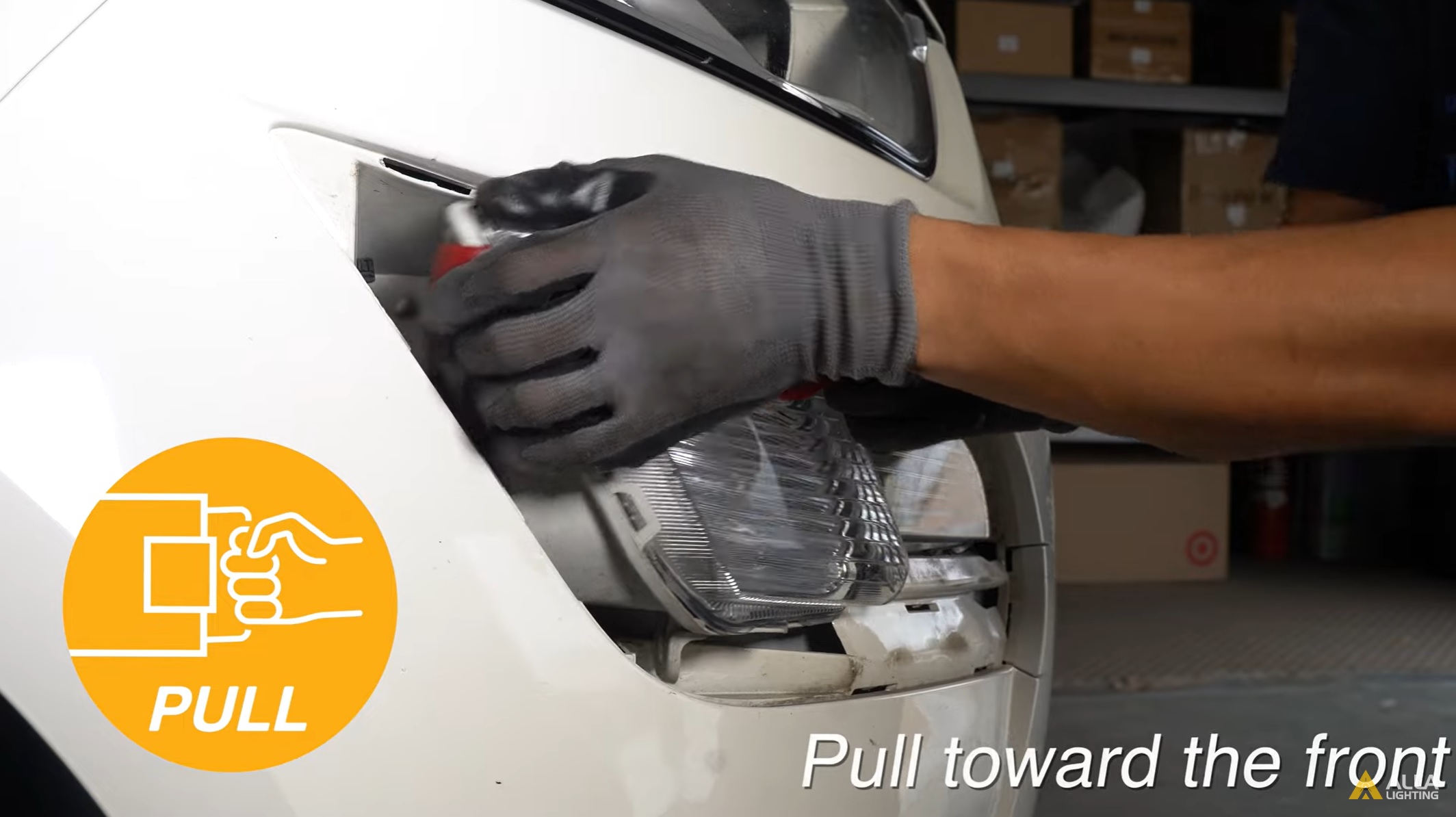

Step #6
With the curved end of your trip tool, pull the socket back to front and you can see the bullet socket joints that locks it in place
Step #7

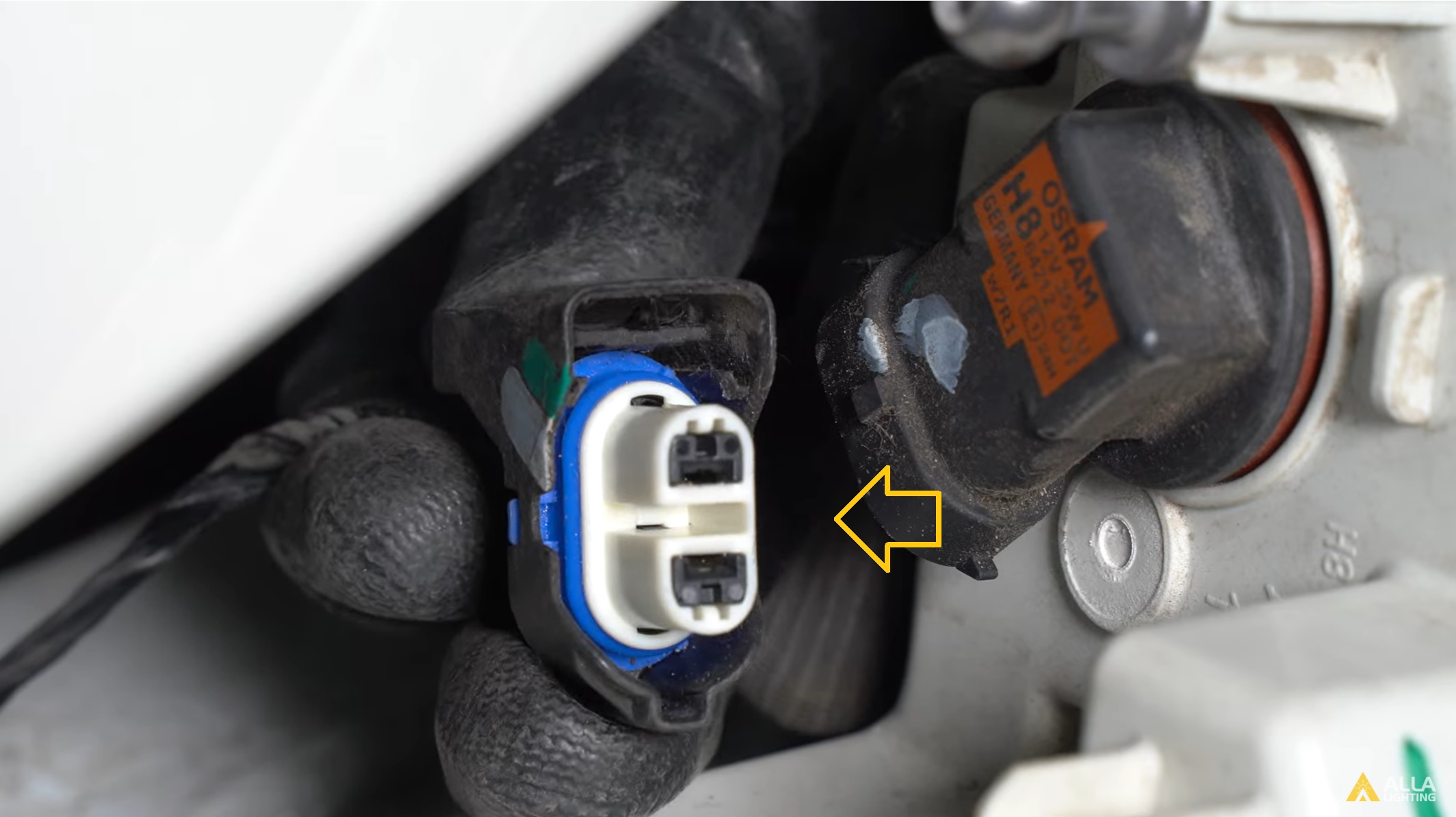

Push on the side tab on the wire harness connector and pull it to disconnect the bulb

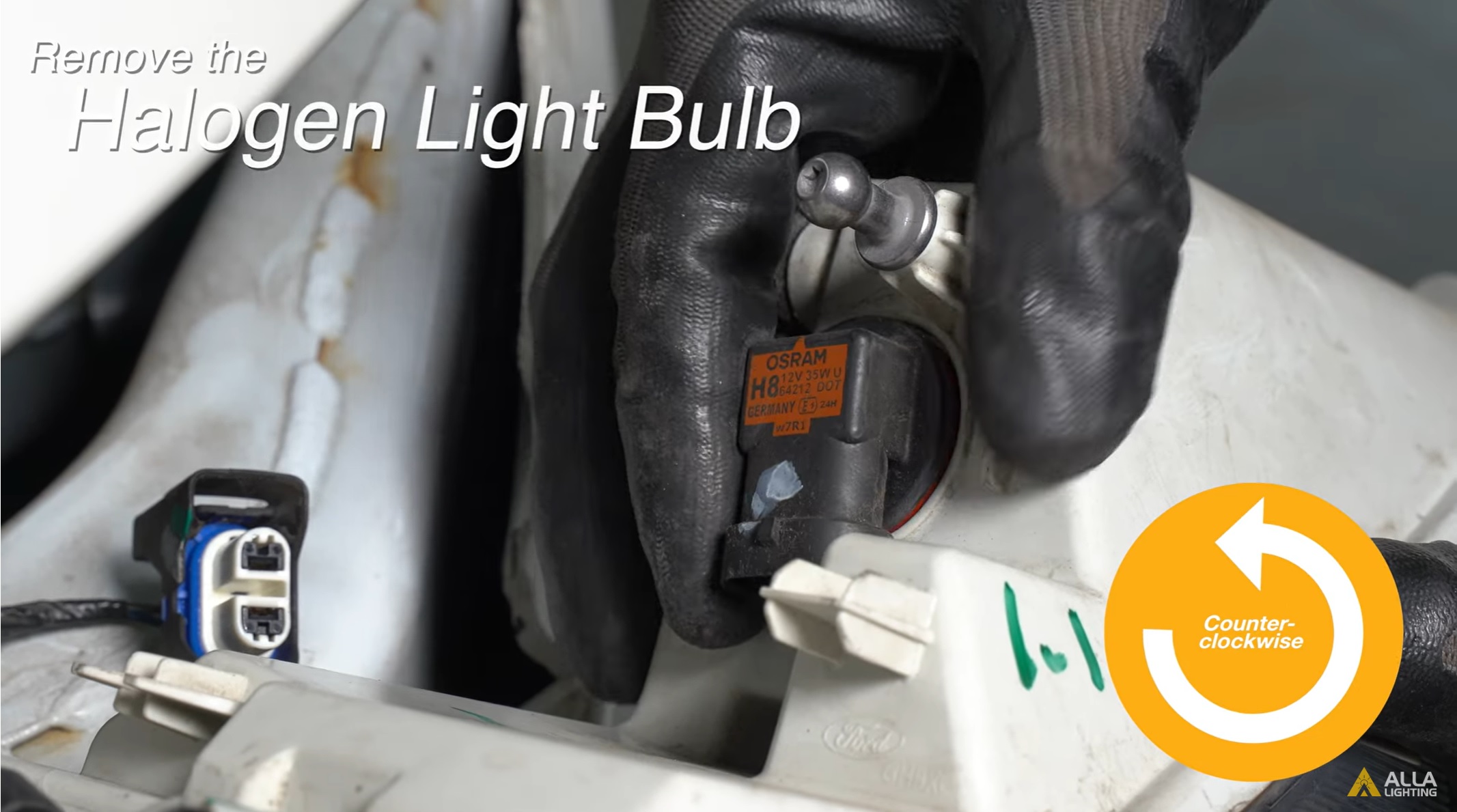

Step #8

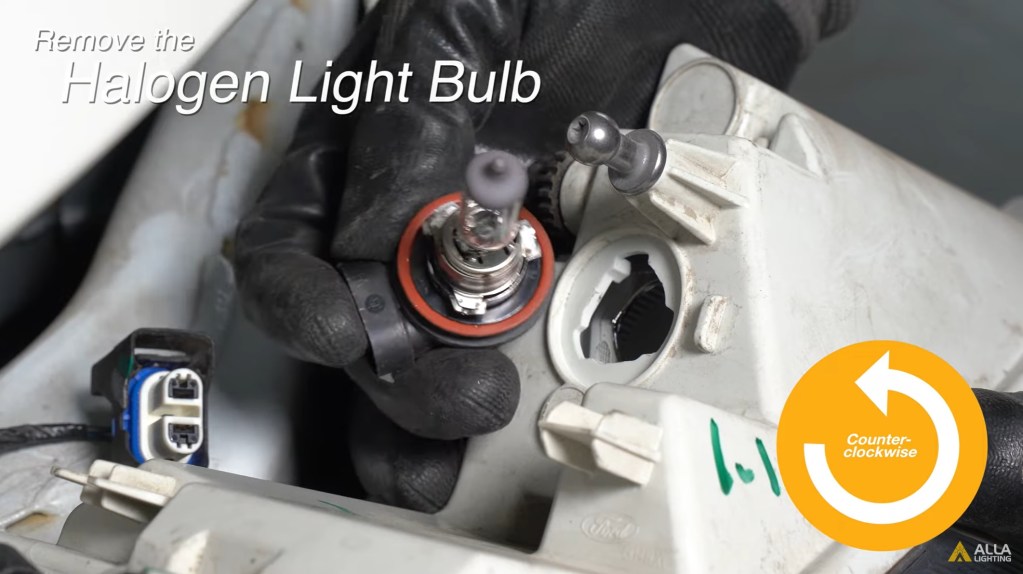

Rotate the bulb counterclockwise to remove it
Step #9
Plug the New LED bulb in and test it
Step #10

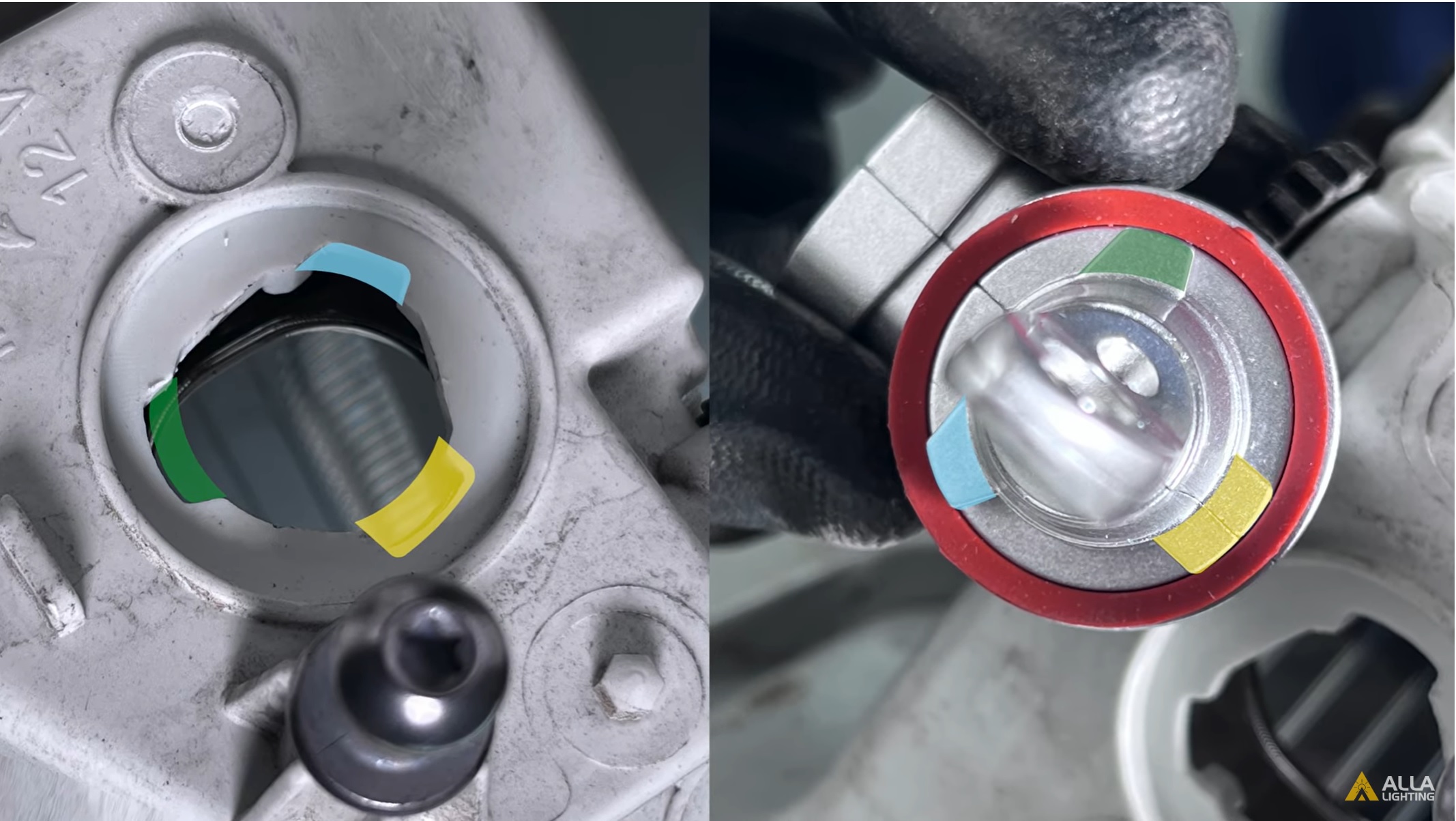

Align the locking tabs of the LED bulb with the housing opening to insert bulb.Â
Step #11
Push in the new LED bulb and rotate clockwise to lock it in place

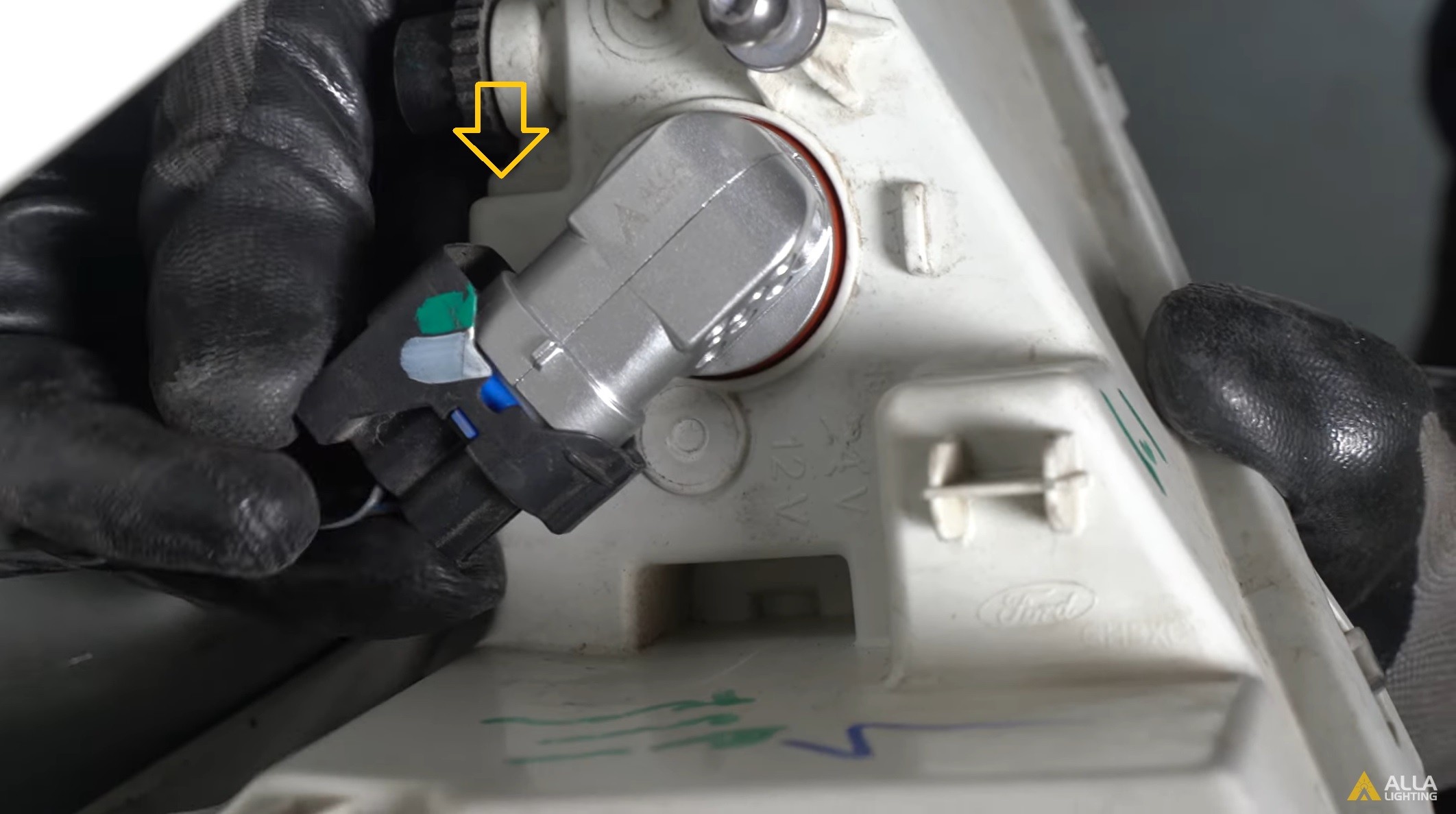

Step #12
Secure wire harness connector to the LED bulb

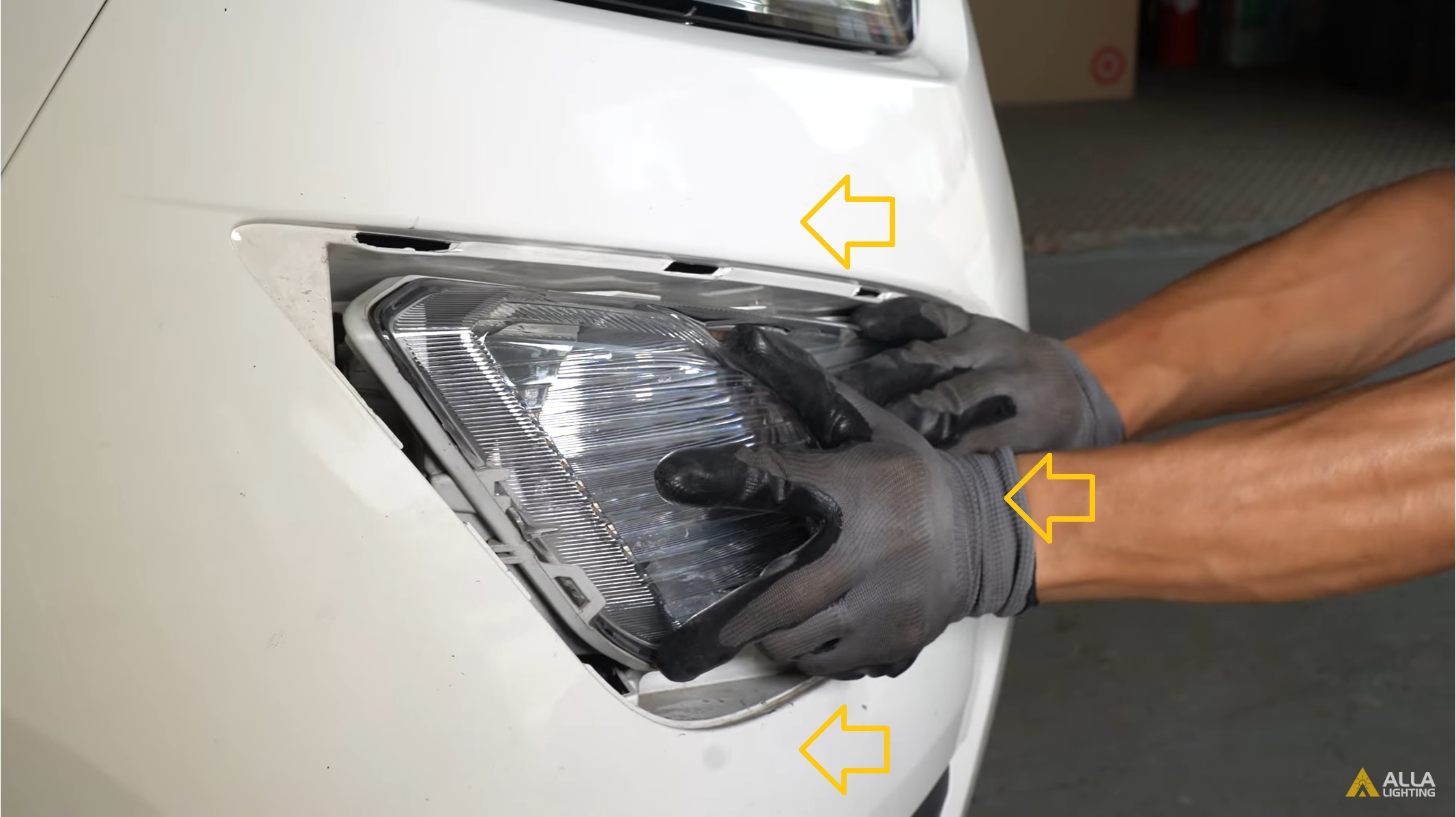

Step #13

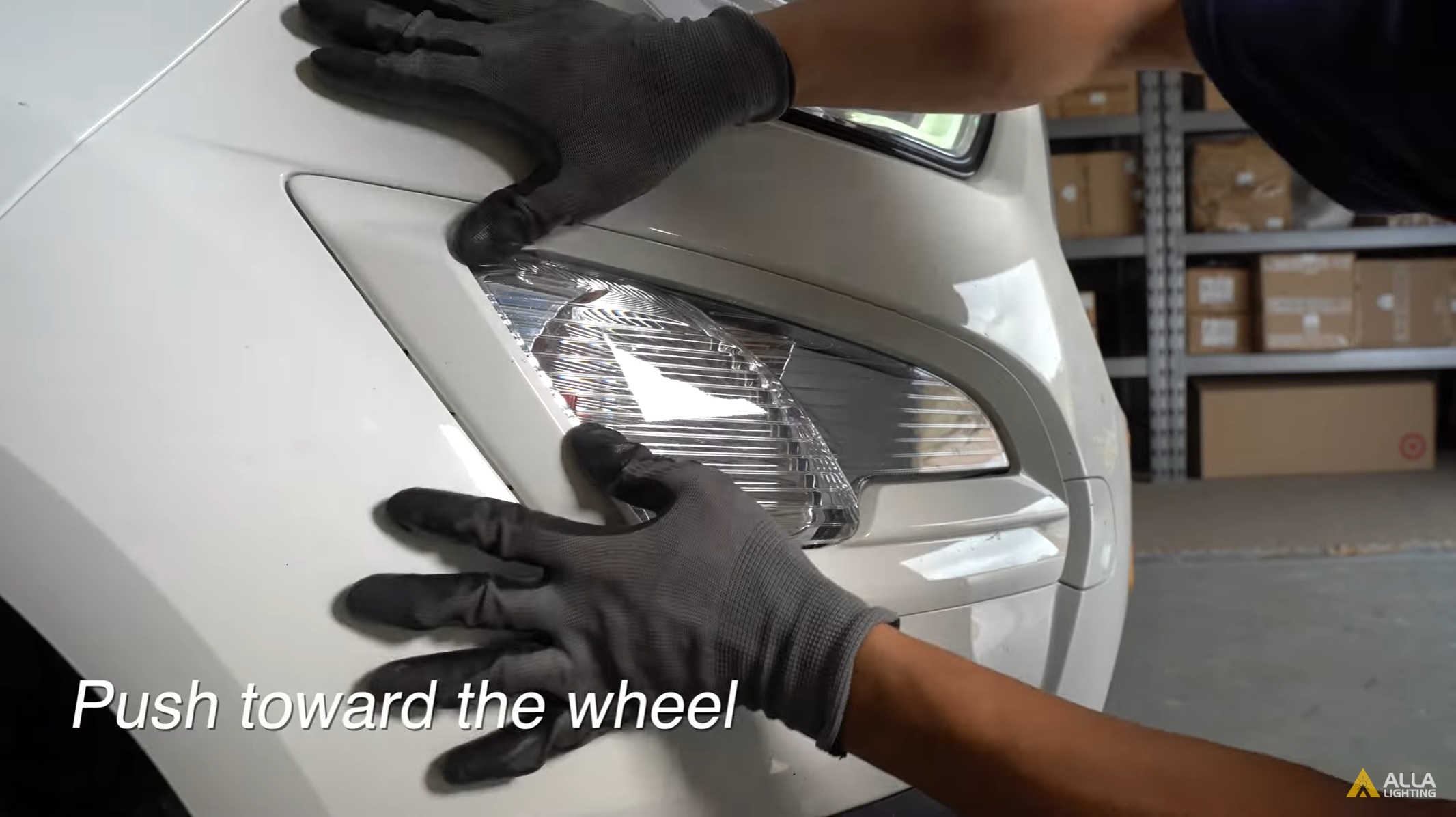

Slide the housing back in, you might have to give it a pretty big push to lock in the bullet socket joints.
Step #14

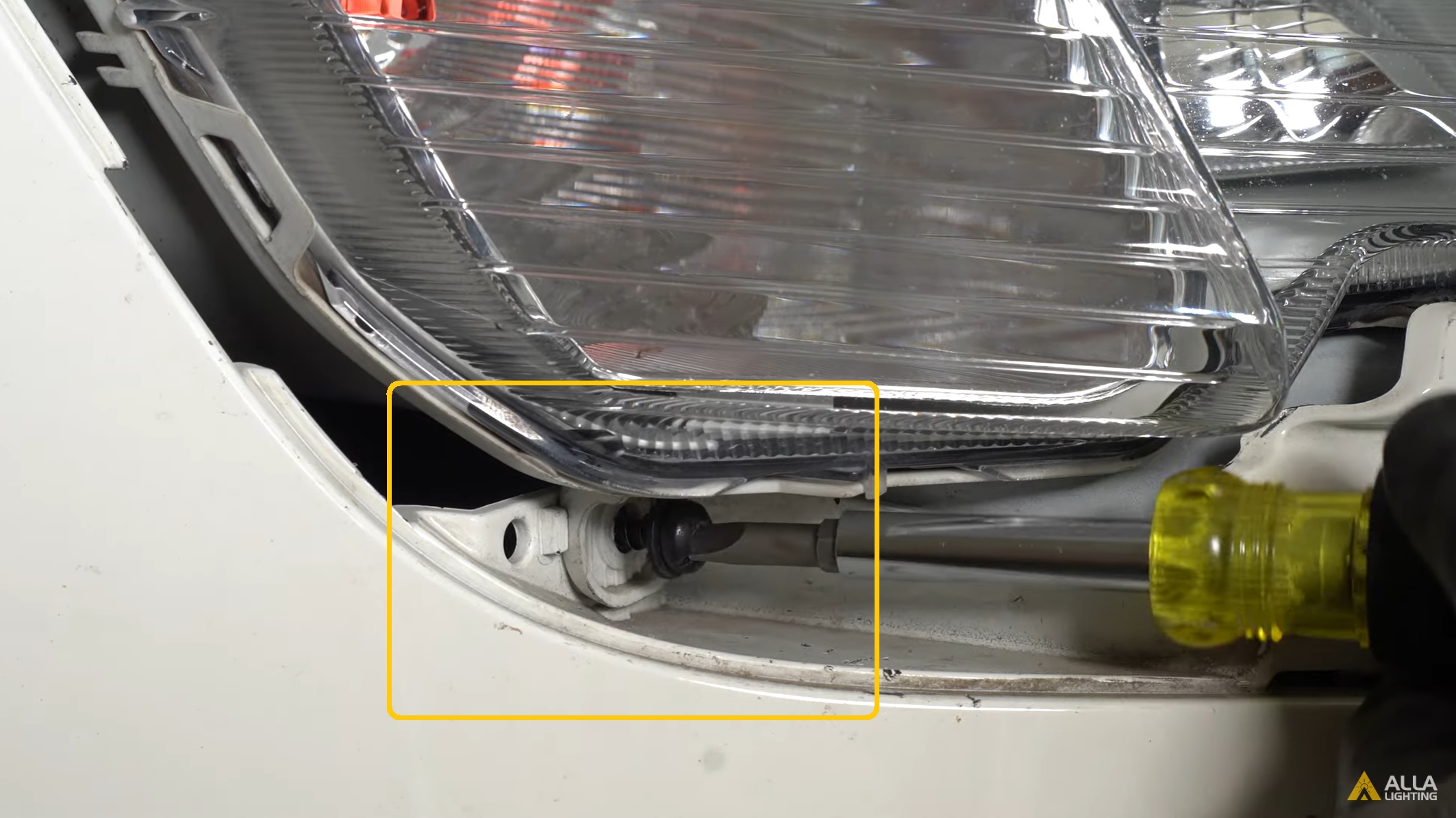

Insert the screw at the bottom and twist screw until secured
Step #15

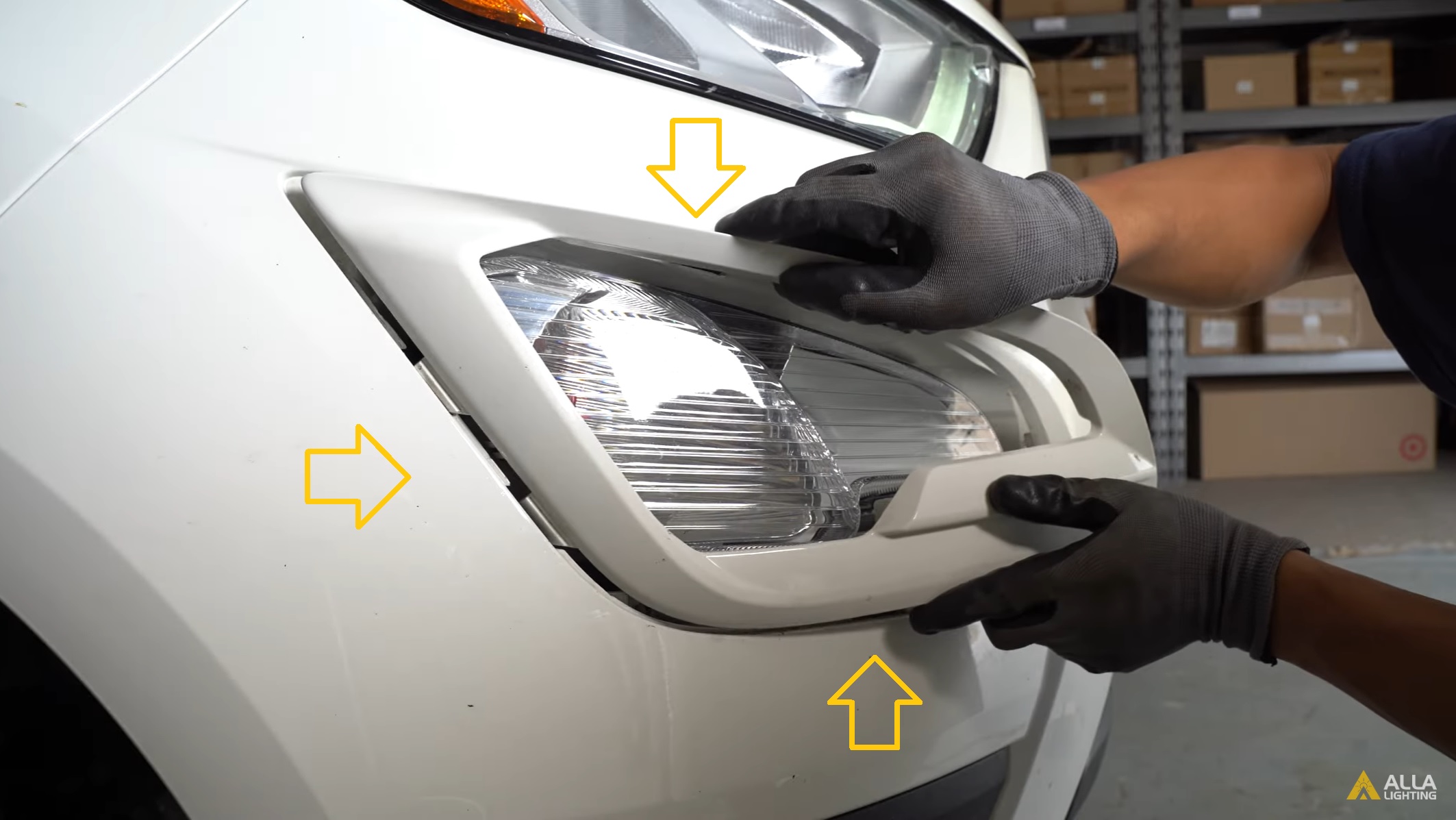

Line up the clips at the trim all the way around the housing and push it in all around until you hear them click into place
Step #16

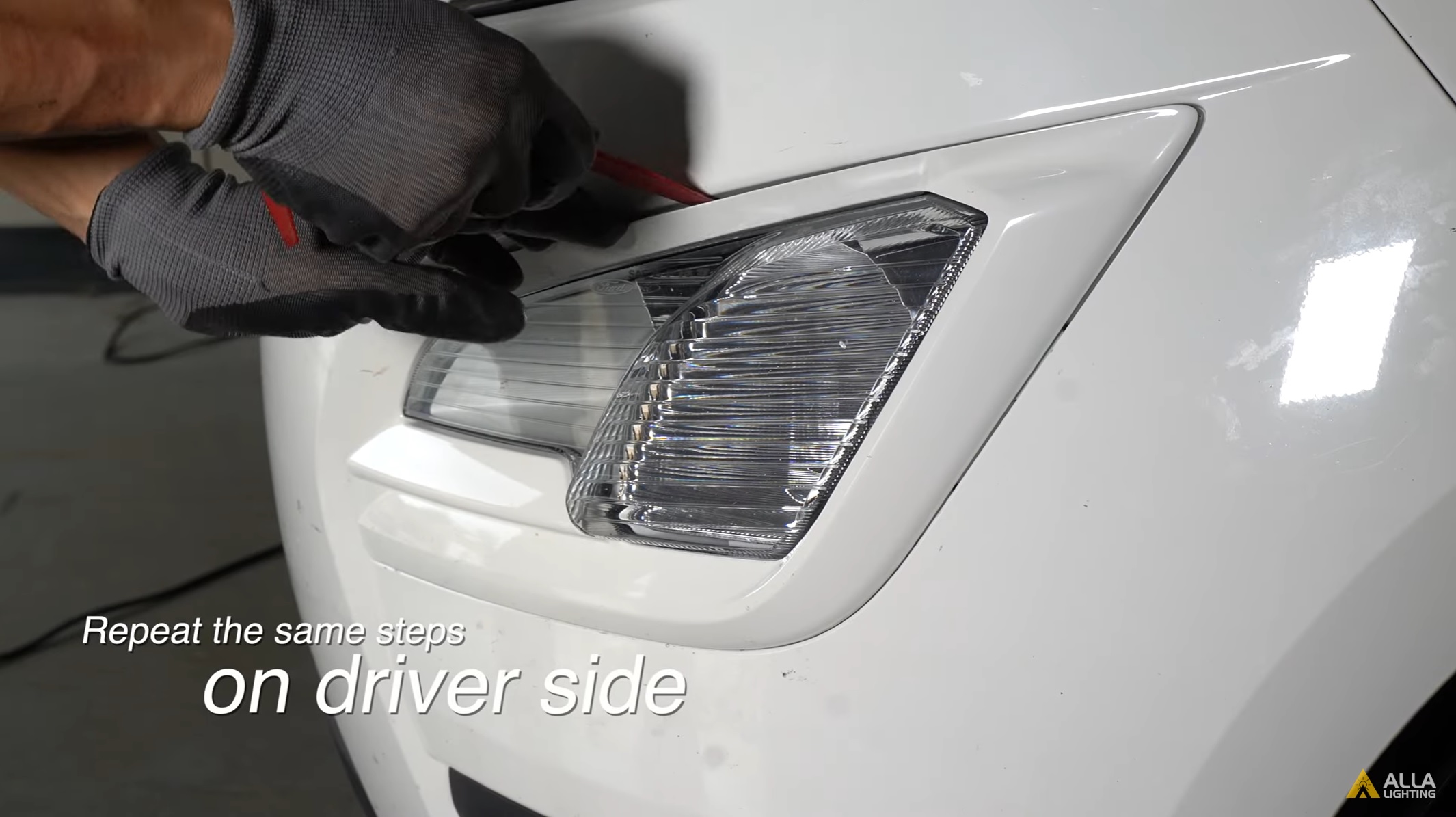

Now we will repeat the same steps for the driver side

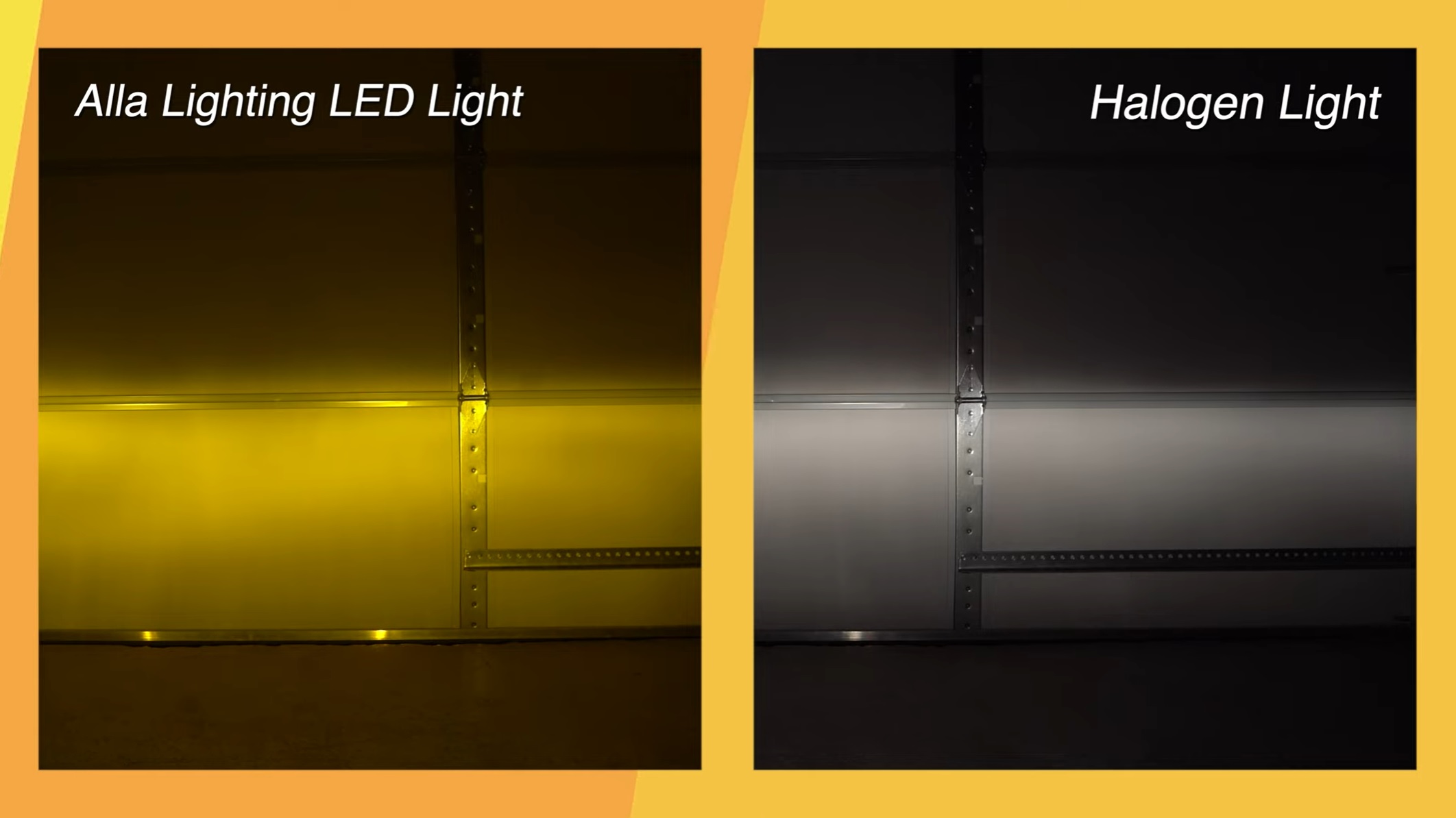

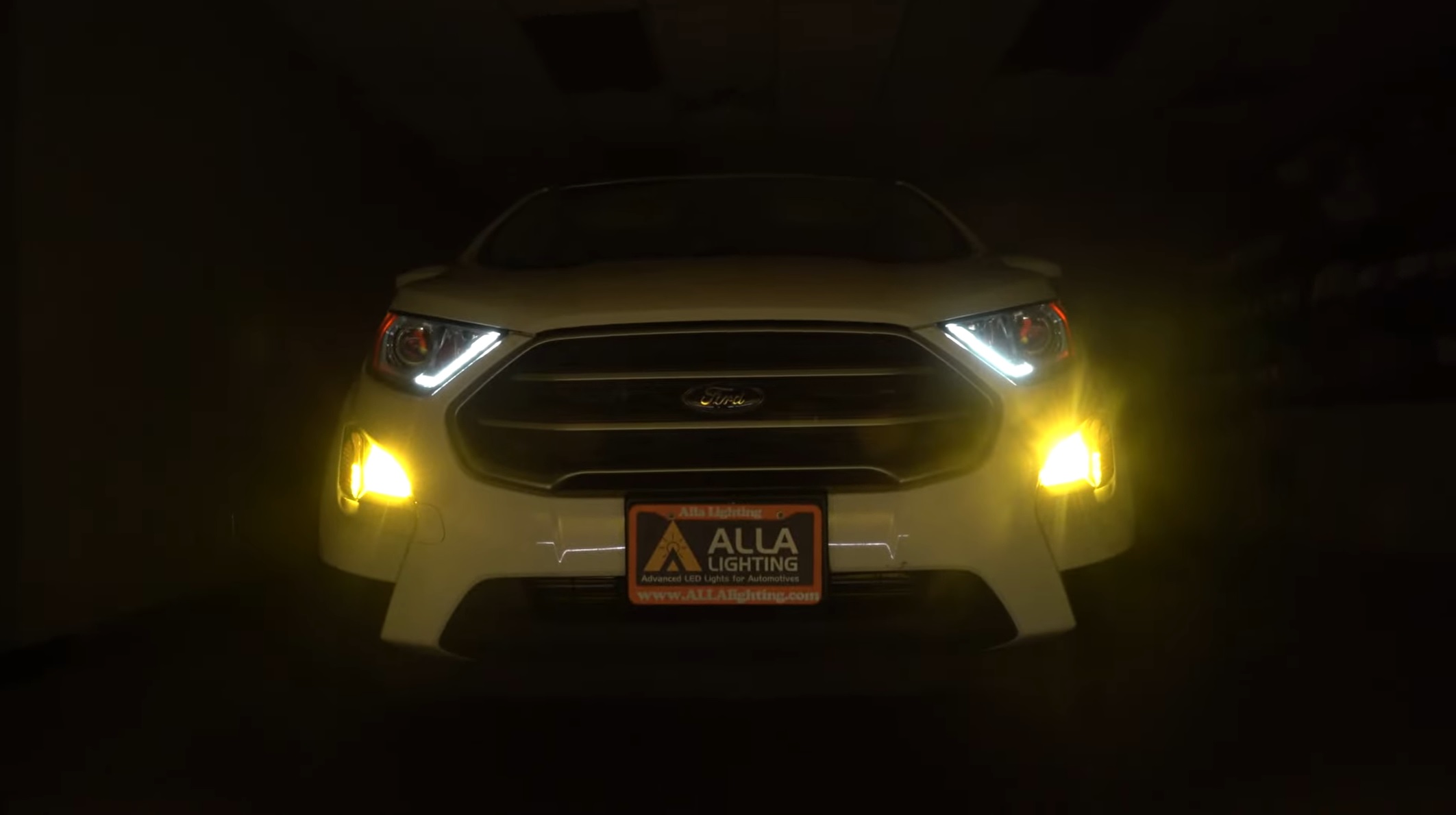

These yellow bulbs are a huge upgrade from the halogen bulbs. They are significantly brighter.
Check out our Step by Step installation video!
Congratulations! Your installation is now complete in your 2018 Ford EcoSport . If you experienced any issues during your installation and unable to complete installation, please contact us for assistance. If the LED bulbs are experiencing hyper-flashing, flickering, an error code issues, then load resistors for this application will be required to be installed. These issues can occur due to the LEDs low current nature, which draws much less current than original stock halogen bulbs.
Please feel free to contact us at service@allalighting.com for assistance. Our team of highly trained representatives will be available to assist and provide the best solution. May also visit us at www.allalighting.comÂ
Looking for more LED upgrades for your vehicle. Check out the below bulb guide! For your reference only. All information below is not 100% guaranteed accurate. Please confirm the original bulb part numbers by referring to the original bulb or the vehicle’s direct owner’s manual prior to purchase.
2018 Ford Ecosport Vehicle Information Exterior Lights
High Beam: Stock Bulb size # HB3/9005Â
Daytime Running Lightt: Stock Bulb size # LED
Fog Light: Stock Bulb size # H8Â
Front Turn Signal Light: Stock Bulb size # 7444NA
Front Side Marker Light: Stock Bulb size # W5W/2825
Rear Turn Light: Stock Bulb size # 7440NA/WY21W
Brake Light: Stock Bulb size # 7443
Tail Light: Stock Bulb size # 7443
Back-Up Reverse Light: Stock Bulb size # 1156
Center High Mount/ 3rd Brake Light: Stock Bulb size # LED
2018 Ford EcoSport Vehicle Information Interior Lights
Interior Dome Light: Â Stock Bulb # DE3175
