Replace Low Beam Headlight bulbs on 2023 Chevy Trailblazer
Introduction:
Thinking of upgrading those stock halogen dim headlights to all new LED bulbs but don’t know where to start? Or don’t know how to replace the bulbs? This blog will explain step by step easy how to replace stock low beam headlight in a 2023 Chevy Trailblazer with all new LED bulbs from ALLA Lighting. Amazing upgrade, easy with minimal tools required.Â
Compatible Vehicles:
2023 Chevy Trailblazer
Tools Needed for Installation:Â
A trim tool
The Following Information shows step by step the installation instructions on how to install low beam headlights in a 2023 Chevrolet Trailblazer (2023 Chevy Trailblazer) .
Step #1: Open the hood
Step #2: Remove the dust cover by twisting it counterclockwise

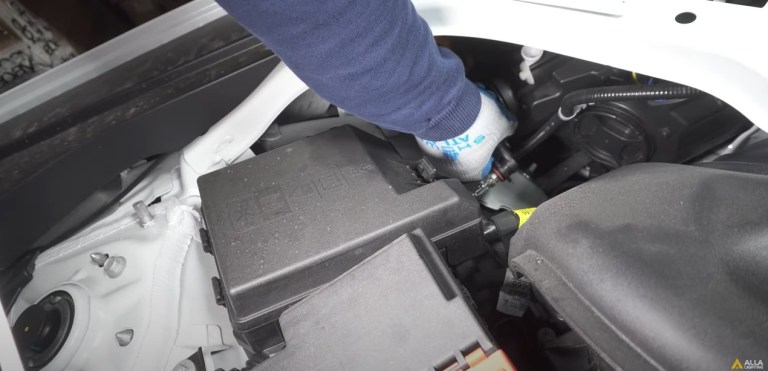

Step #3: Twist the stock bulb counterclockwise
Step #4: Disconnect the halogen bulb using the trim tool

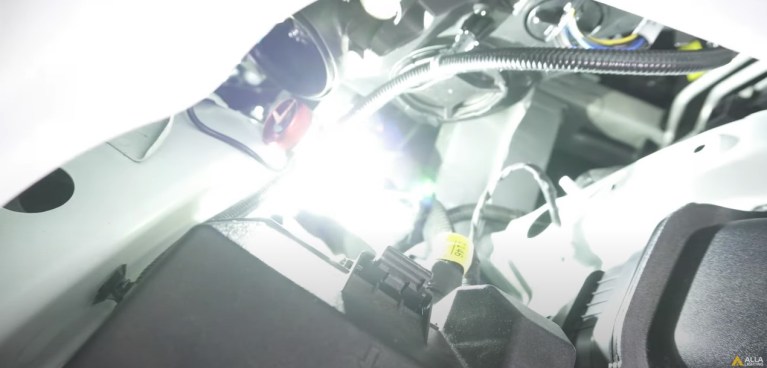

Step #5: Connect LED plug to stock harness and test it
Suggested headlight bulbs are polarity sensitive. If LED bulbs don’t turn on, flip the connection 180 degrees and retest the LED bulb.

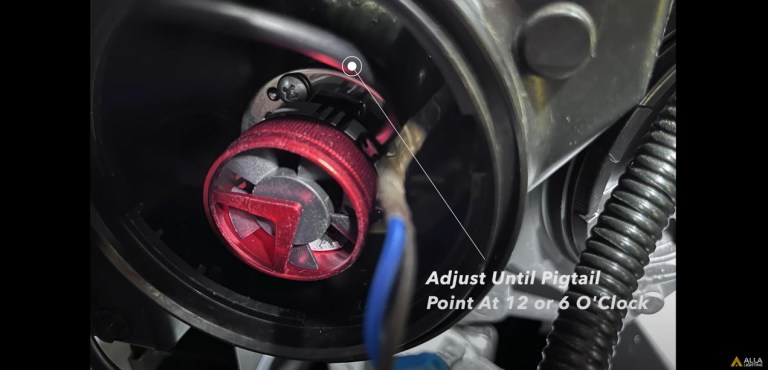

Step #6:Â Install the LED bulb and turn clockwise all the way until fully locked

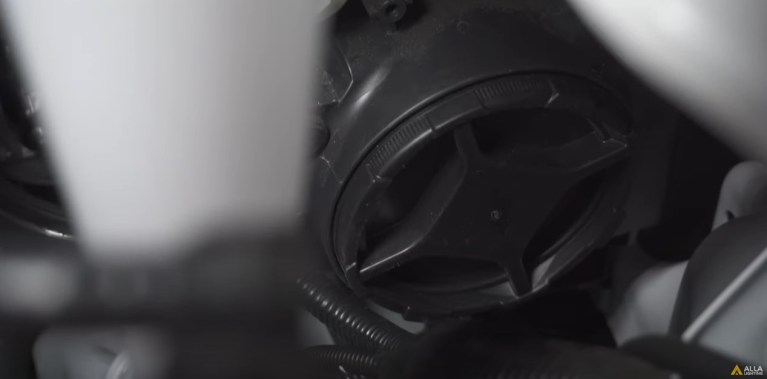

Step #7:Â Put the cord and dust cover back in the housing

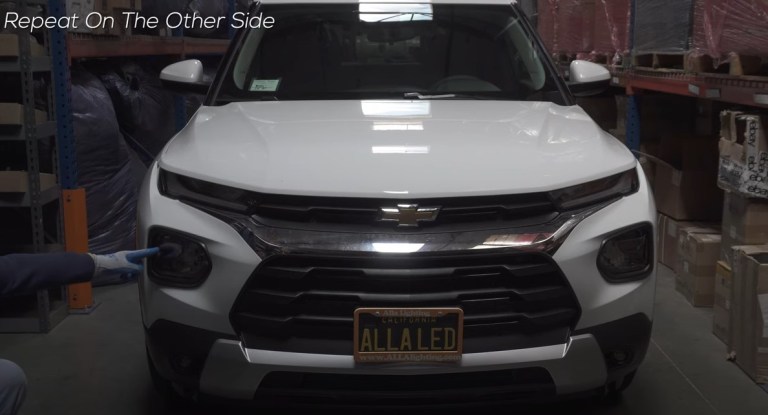

Step #8: Repeat on the other side
Optional: remove the windshield washer fluid filler neck for more space during installation.Â
Item used in Video from ALLA Lighting
Item Title: AG1 HB3 9005 LED Headlights Conversion Kits BulbsÂ
Item Sku:Â 9005-AG1-HL
Check out Installation Video
Congratulations!! Your installation for all new LED Low beam Headlight bulbs is now complete in your 2023 Chevy Trailblazer. If you experienced any issues during your installation and unable to complete installation, please contact us for assistance. If the LED bulbs are experiencing hyper-flashing, flickering, an error code issues, then load resistors for this application will be required to be installed. These issues occur due to the LEDs low current nature which draws much less current than original stock halogen bulbs.
Please feel free to contact us at service@allalighting.com for assistance. Our team of highly trained representatives will be available to assist and provide best solution. May also visit us at www.allalighting.comÂ
Looking for more LED upgrades for your vehicle. Check out the below bulb guide! For your reference only. All information below is not 100% guaranteed accurate. Please check original halogen bulb size before purchasing.Â
2023 Chevy Trailblazer Vehicle Information Exterior Lights
Low Beam: Stock Bulb size #Â : LEDÂ Â (not replaceable with our LEDs)Â or halogen 9005Â https://allalighting.com/products/hb3-9005-led-headlights-conversion-kits-bulbs-6500k-xenon-white
High Beam: Stock Bulb size # : H9Â https://allalighting.com/products/ag1-h8-h9-h11-led-headlights-conversion-kits-bulbs-6500k-xenon-white
Fog Light: Stock Bulb size # : LED (not replaceable with our LEDs)Â
Front Side Marker Light: Stock Bulb size # : LEDÂ Â (not replaceable with our LEDs)Â
Back-Up Reverse Light: Stock Bulb size # : LED (not replaceable with our LEDs) or halogen 921Â https://allalighting.com/products/912-921-led-lights-bulbs-backup-reverse-signal-3rd-brake-stop-lights-rv
