2013 Chevy Sonic High Beam LED Upgrade
How to install 9005 LED bulbs in 2012 - 2019 Chevy Sonic
You may find your halogen bulbs are quite dim, which may make it hard to see in front, especially in bad weather or severe driving conditions. Upgrading your old halogen bulbs of your “insert vehicle” to new aftermarket LED bulbs can add a great new look to your vehicle as well as enhance visibility at night for safer driving experience.
We strongly suggest to confirm all bulb sizes required in your 2012 – 2019 Chevy Sonic by checking stock bulbs for part number. The part number required will be located on original halogen bulb from 2012 – 2019 Chevy Sonic housing directly.
Below we will show you how to install your new ALLA Lighting LED bulbs to your “ insert vehicle and application”Â
Bulb Sizes for “insert vehicle and bulb size part number and application”
The following information is a step by step instructions on how to install your new “insert LED bulb item”
Compatible Vehicles: 2012 – 2019 Chevy Sonic
No tools required for installation of LED high beams in this vehicle
Step 1:

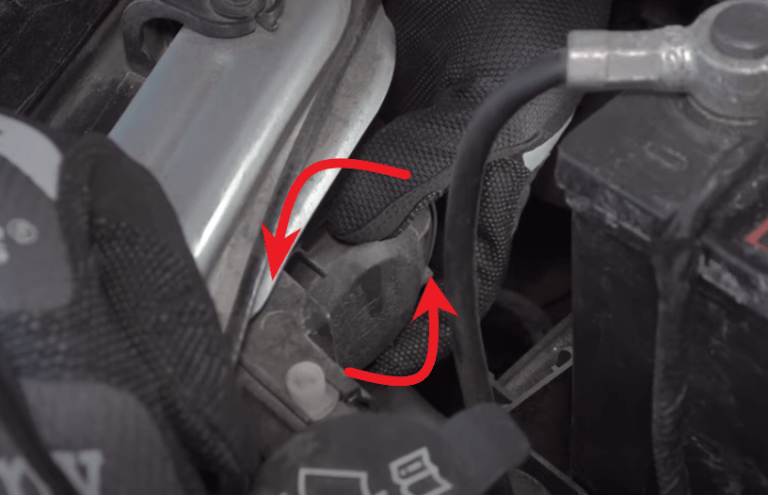

Twist dust cap counter clockwise and remove
Step 2:
Twist halogen bulb counter clockwise to unlock and remove from housing
Step 3:
Unclip halogen bulb from Chevy Sonic socket

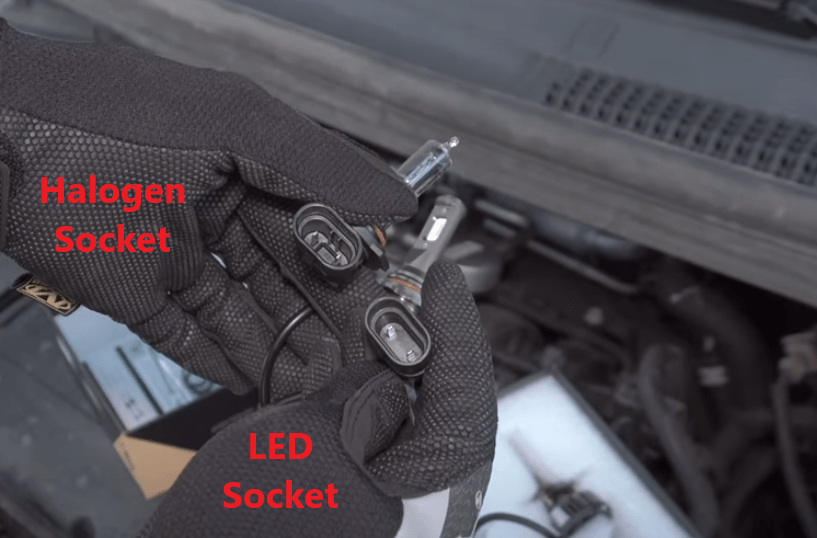

Matching Tabs
Matching Sockets
Step 4:

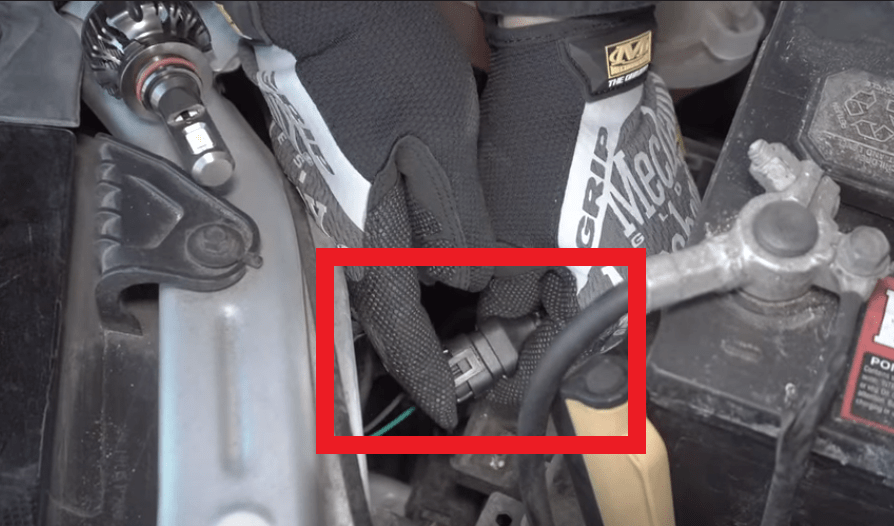

Connect LED bulb socket to vehicle socket until click
Step 5:Â Â

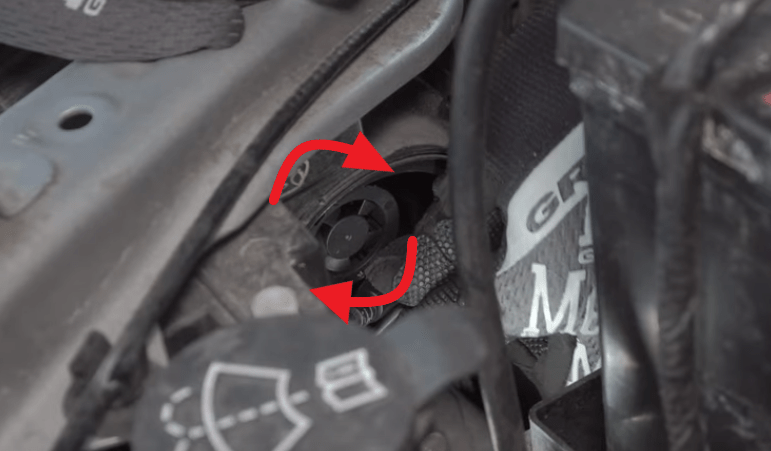

Twist LED bulb clockwise in housing to lock in place *beam adjustment varies*

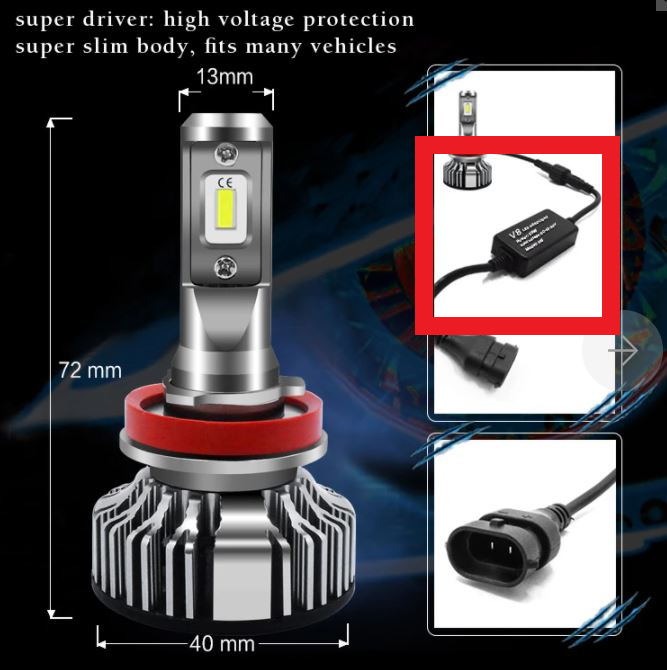

Side note: If LED model has an LED driver (see below) place wiring harness and LED driver in housing with LED bulb
Step: 6)
Twist dust cap clockwise to lock over vehicle housing
Check out our Step by Step installation video!Â
Congratulations!! Your installation is now complete. If you experienced any issues in which unable to complete installation please contact us for assistance. If the LED bulbs are experiencing hyper-flashing, flickering, an error code issues, then load resistors for this application will be required to be installed. These issues occur due to the LEDs low current nature which draws much less current than original stock halogen bulbs.
Please feel free to contact us at service@allalighting.com for assistance. Our team of highly trained representatives will be available to assist and provide best solution. May also visit us at www.allalighting.comÂ
Looking for more LED upgrades for your vehicle. Check out the below bulb guide! For your reference only. All information below is not 100% guaranteed accurate. Please check the vehicle owner’s manual before purchasing.Â
2012 – 2019 Chevy Sonic Exterior Lights:
- Low Beam with H11 Bulb Size: https://allalighting.com/products/h8-h9-h11-led-bulbs-replacement-upgrade-halogen-lamp
- High Beam with 9005 Bulb Size: https://allalighting.com/products/9005-hb3-led-bulbs-replacement-upgrade-halogen-lamp
- Fog Light with H8/H11 Bulb Size: https://allalighting.com/products/al-r-h8-h11-led-fog-lights-bulbs-replacement-drl-for-cars-trucks
- Front Turn Signal with 7443 Bulb Size: https://allalighting.com/products/canbus-t20-7440-7443-led-bulbs-amber-yellow-turn-signal-lights-7444na
- Rear Turn Signal with 3157 Bulb Size: https://allalighting.com/products/can-bus-t25-3156-3157-led-bulbs-amber-yellow-turn-signal-lights-3457na
- Front/ Rear Side Marker with 7443 Bulb Size: https://allalighting.com/products/t20-7440-7443-led-turn-signal-brake-stop-tail-reverse-lights-bulbs
- Tail/ Brake Light with 7443 Bulb Size: *Strobe Model* https://allalighting.com/products/7440-7443-led-strobe-brake-lights-flashing-stop-bulbs-7441-w21w
- Reverse Light:
- Â If replacing 921 bulb size: https://allalighting.com/products/912-921-led-lights-bulbs-backup-reverse-signal-3rd-brake-stop-lights-rv
- If replacing 3157 bulb size: https://allalighting.com/products/t25-3156-3157-led-turn-signal-brake-stop-tail-reverse-lights-bulbs
- License Plate Light with 2825/T10 bulb size: https://allalighting.com/products/w2-1-9-5d-base-t10-wedge-168-194-led-bulbs-interior-lights-replacement
2012 – 2019 Chevy Sonic Interior Lights:
- Dome Light 6411/39MM festoon bulb size: https://allalighting.com/products/de3415-6486x-led-bulbs-festoon-license-plate-interior-map-dome-lights
- Map Light and Cargo Light 2825/175 bulb size: https://allalighting.com/products/w2-1-9-5d-base-t10-wedge-168-194-led-bulbs-interior-lights-replacement
