How to Change 2018-2023 Chevrolet Equinox Hi/Low Beam HID Headlights
Table of Contents
How to Install 2018-2023 Chevrolet Equinox Hi/Low Beam HID Headlights
Ready to upgrade your old halogen bulbs? Learn how to replace and complete the installation for LED headlight bulbs. Easy installation and tips!
The halogen exterior bulbs may be too dim in your 2018-2023 Chevrolet Equinox, which can make vision difficult, especially in bad weather or severe driving conditions. Upgrading the old halogen bulbs on your 2018-2023 Chevrolet Equinox with new aftermarket LED bulbs can add a great new look to your vehicle and improve visibility at night for a safer driving experience.
If you choose to upgrade your old halogen bulbs to new LED bulbs, it is best to confirm you have the correct replacement LED bulb by referring to the original bulb or 2018-2023 Chevrolet Equinox direct owner’s manual.
We will show you how to install your new Hi/Low Beam HID Headlights application. Bulb sizes for the 2018-2023 Chevrolet Equinox Hi/Low Beam HID Headlights application is # D3S
Tools Needed for Installation:Â
- 10mm Wrench
The following information is step by step instructions on how to install your new D3S D3R HID Headlights.
Step #1

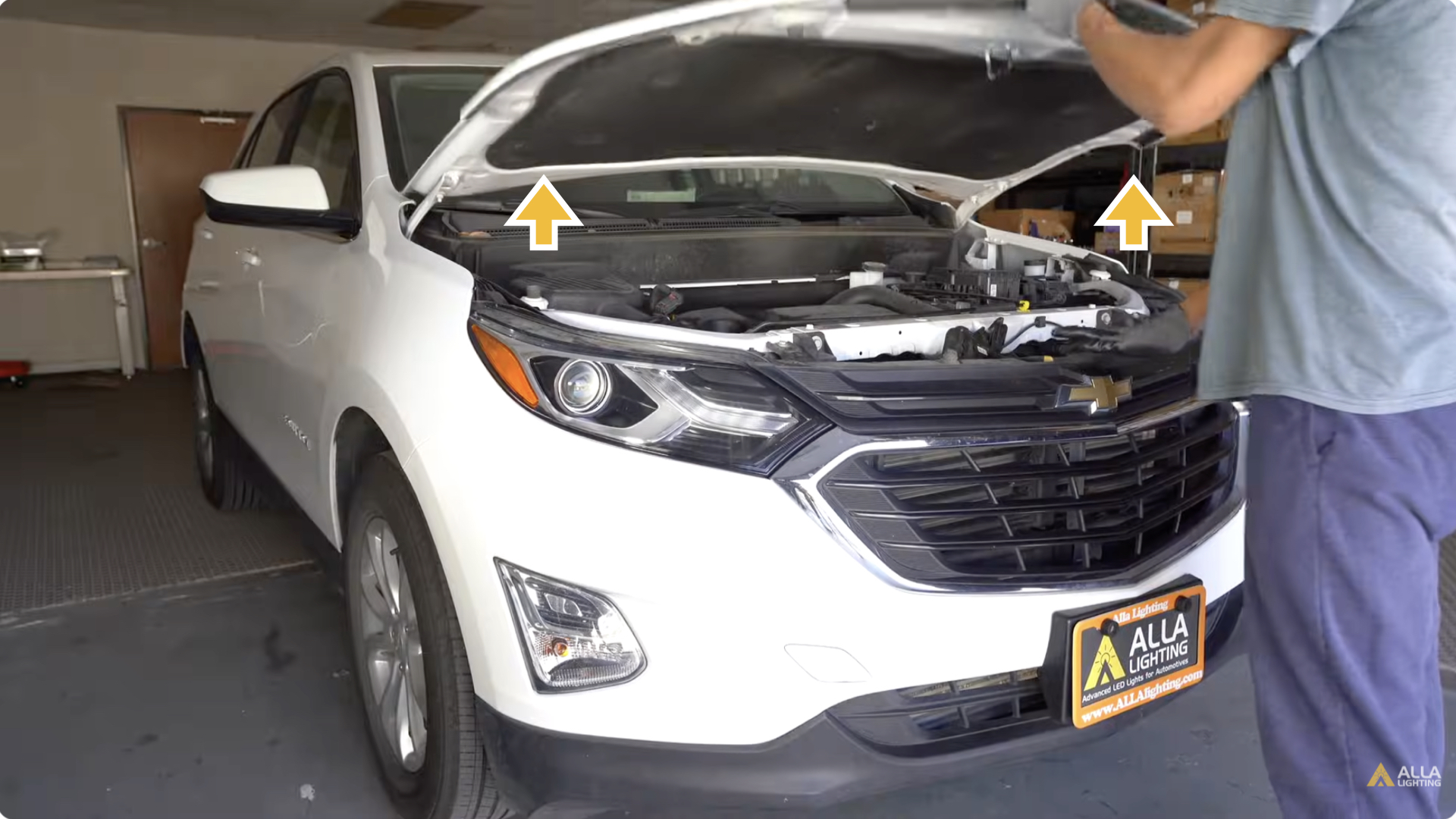

We’ll begin under the hood.Â
Step #2

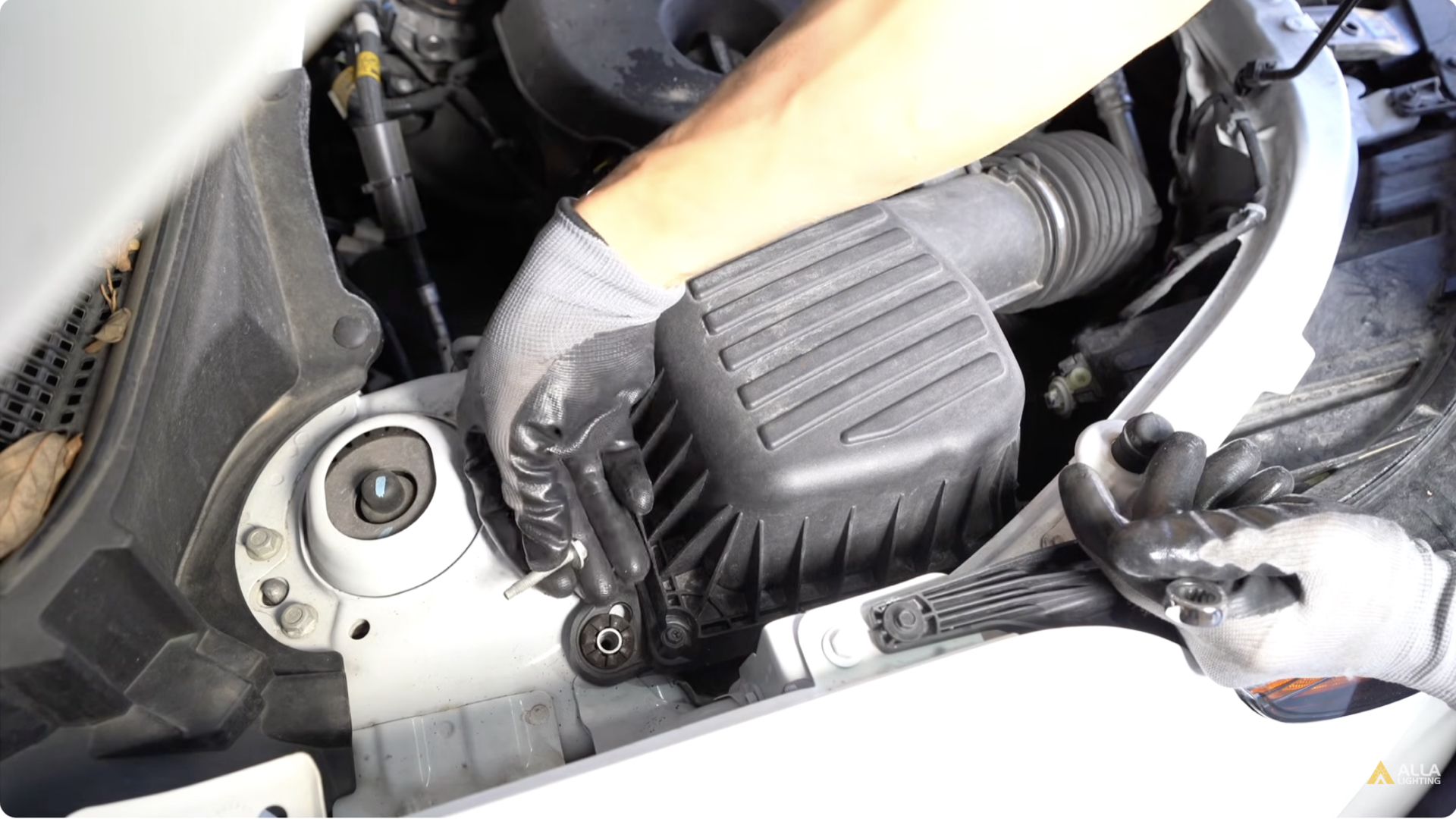

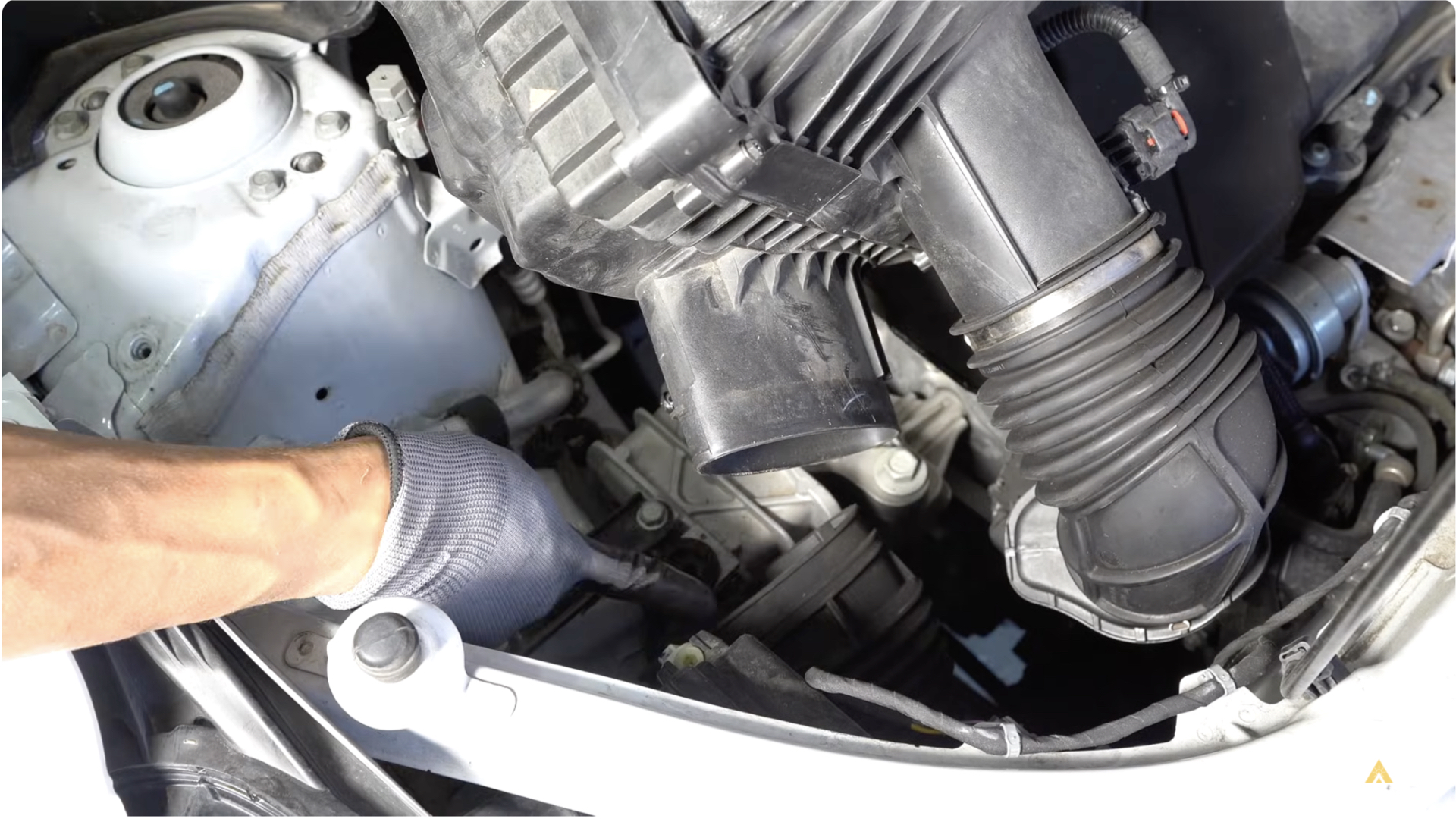

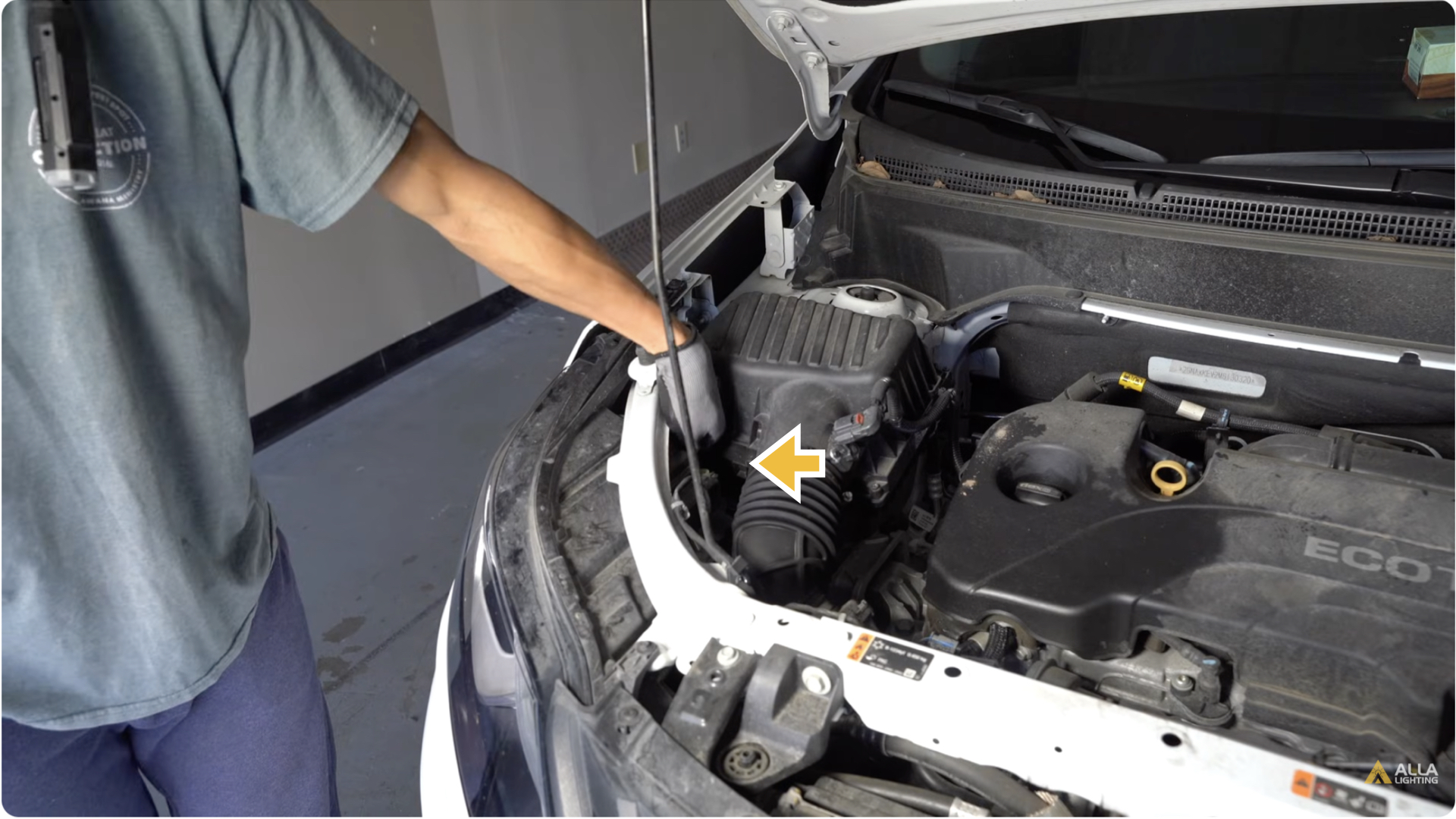

There isn’t enough space to access the headlights, so we’ll have to remove the air filter.Â
Step #3

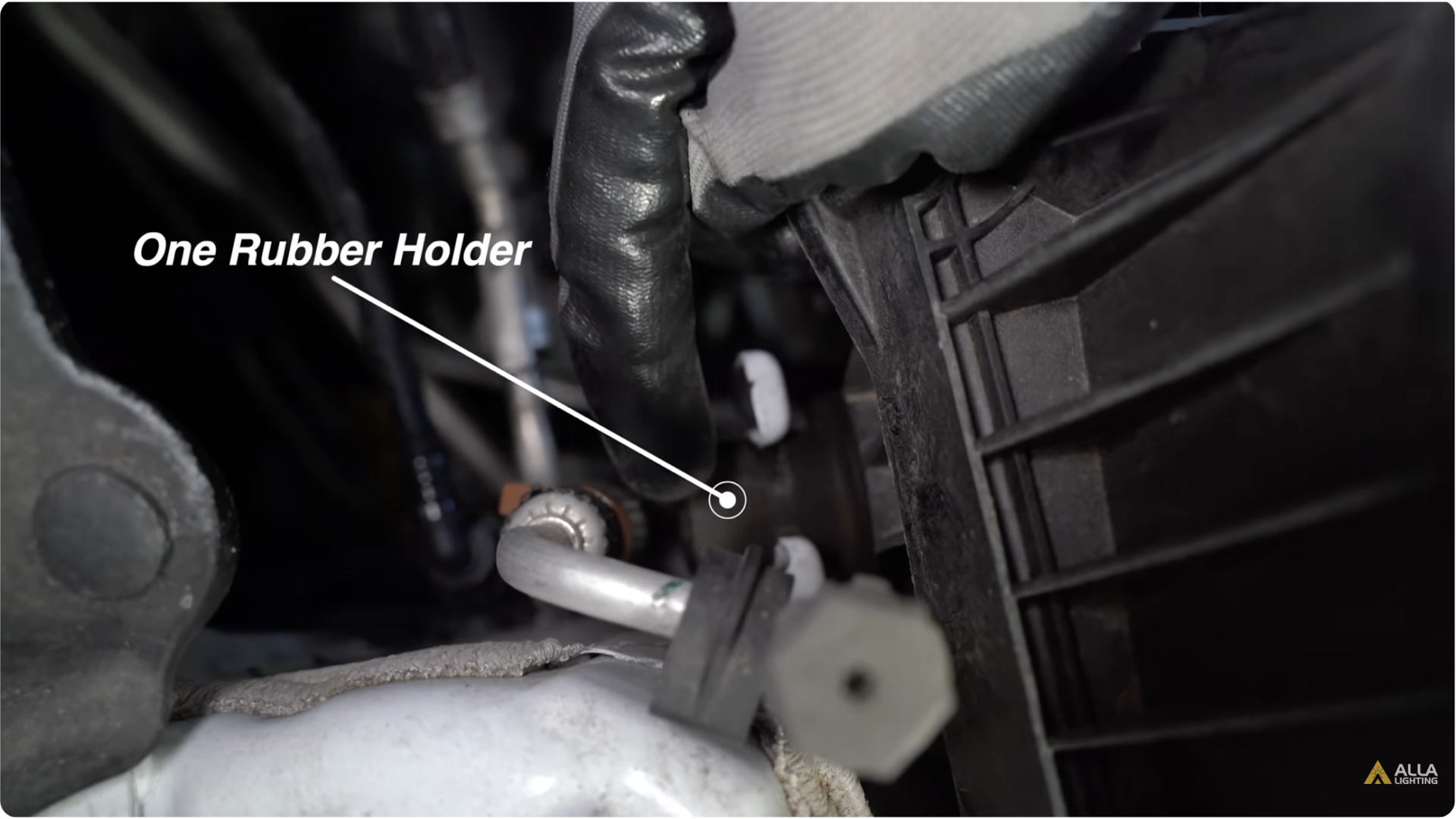

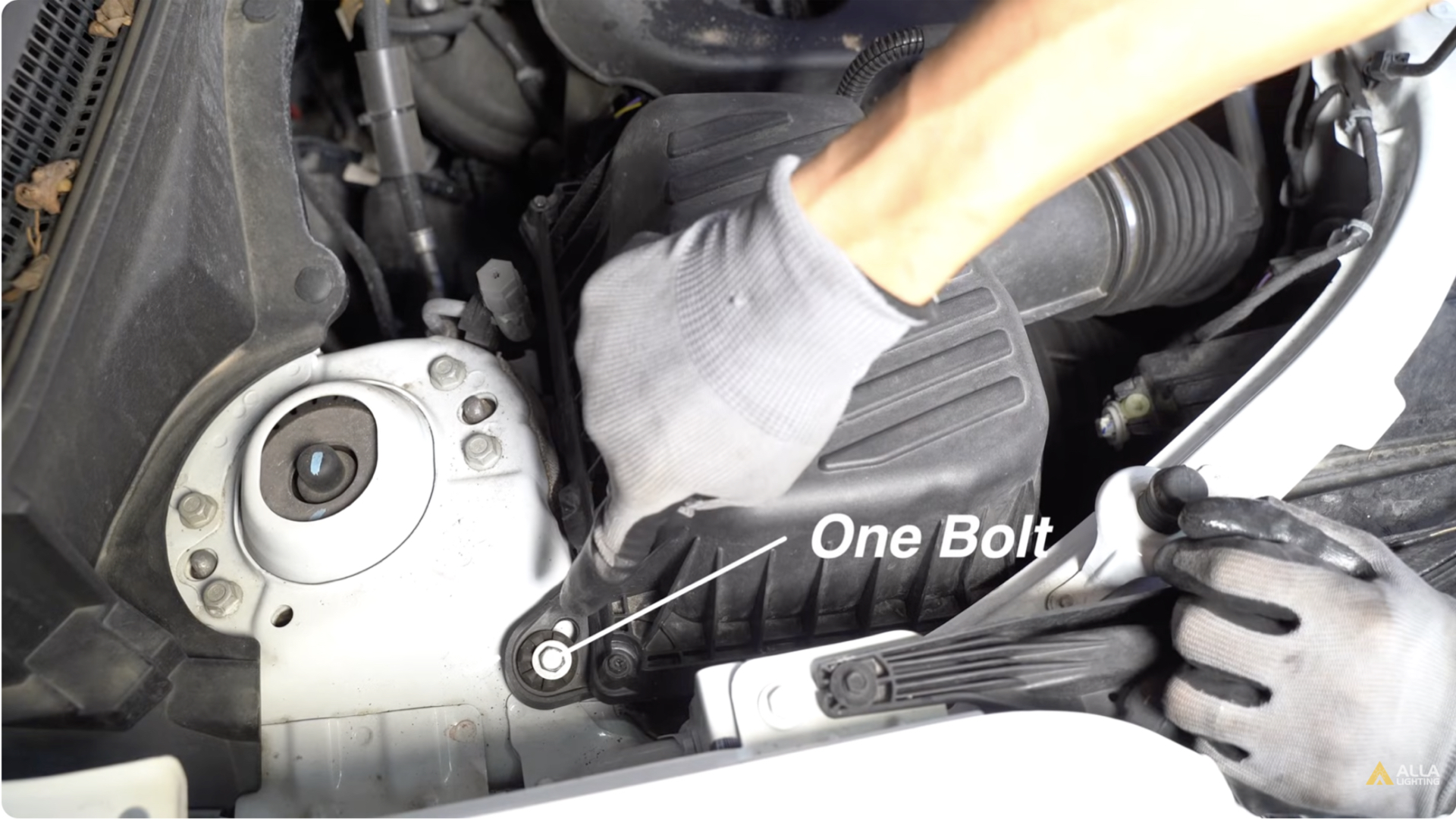

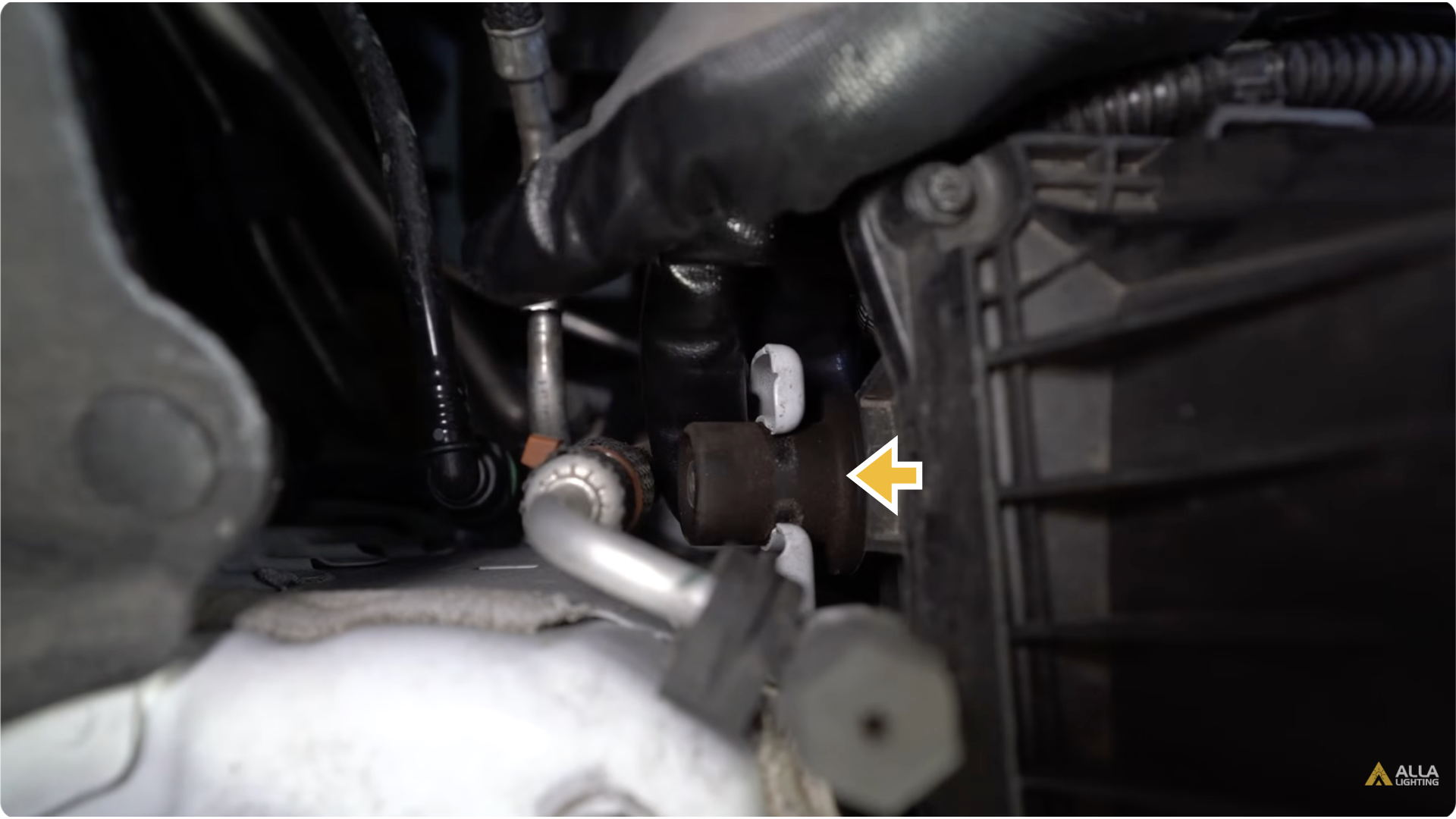

There’s one bolt on the top to remove and a rubber socket to remove along the side, plus one more we can’t see on the bottom side.
Step #4

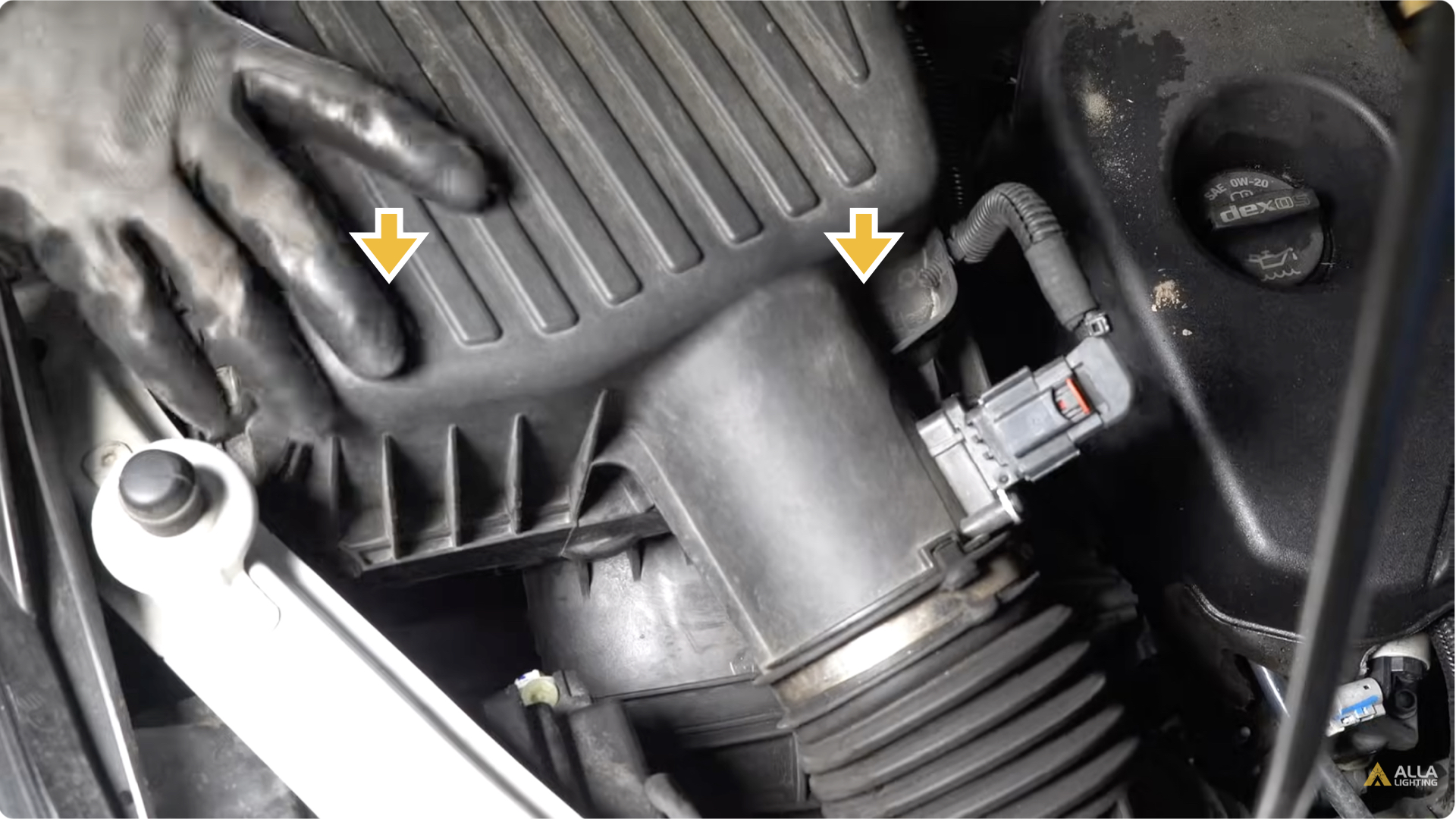

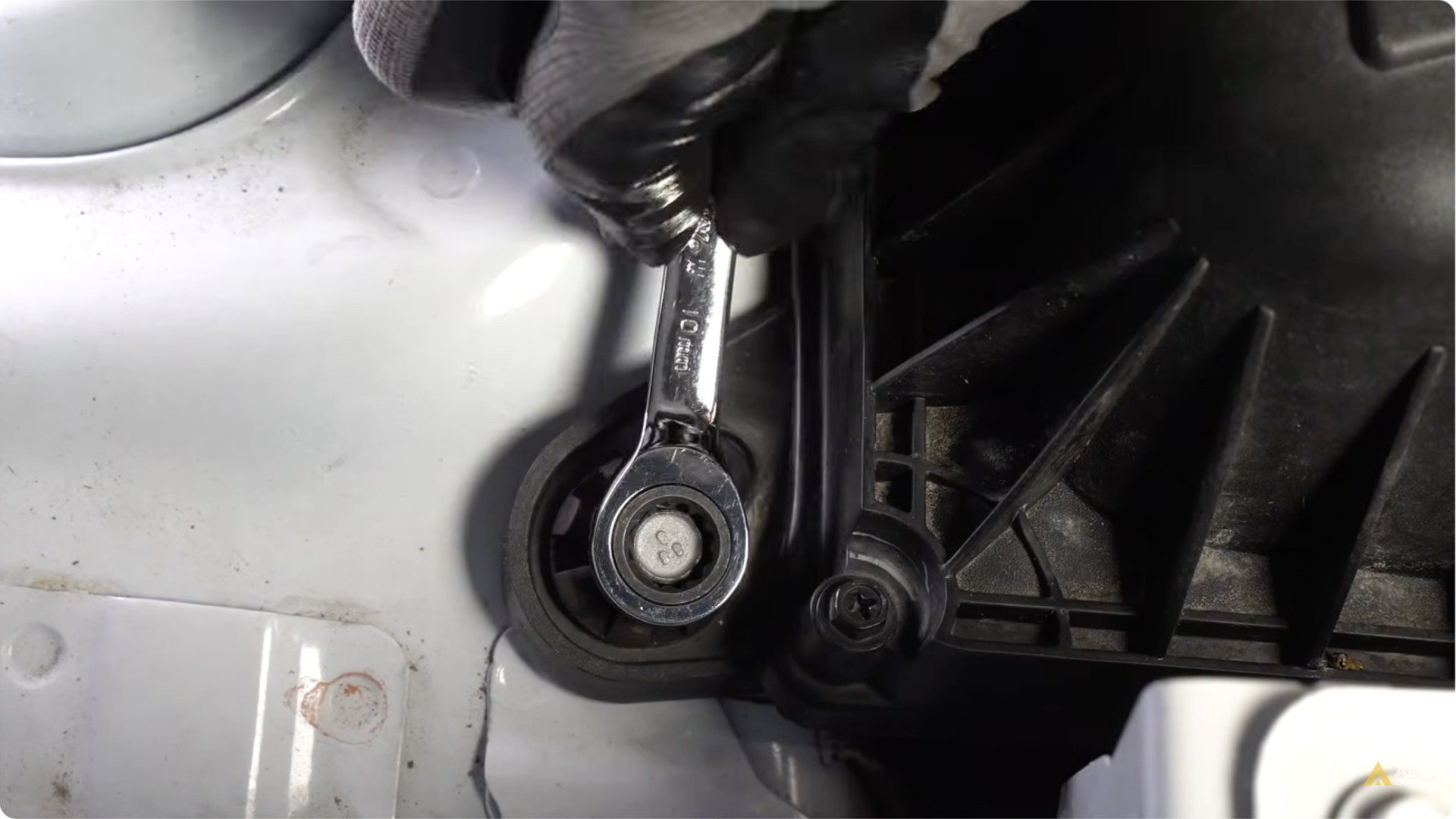

Remove the bolt and lift up the filter to free the two sockets.
Step #5

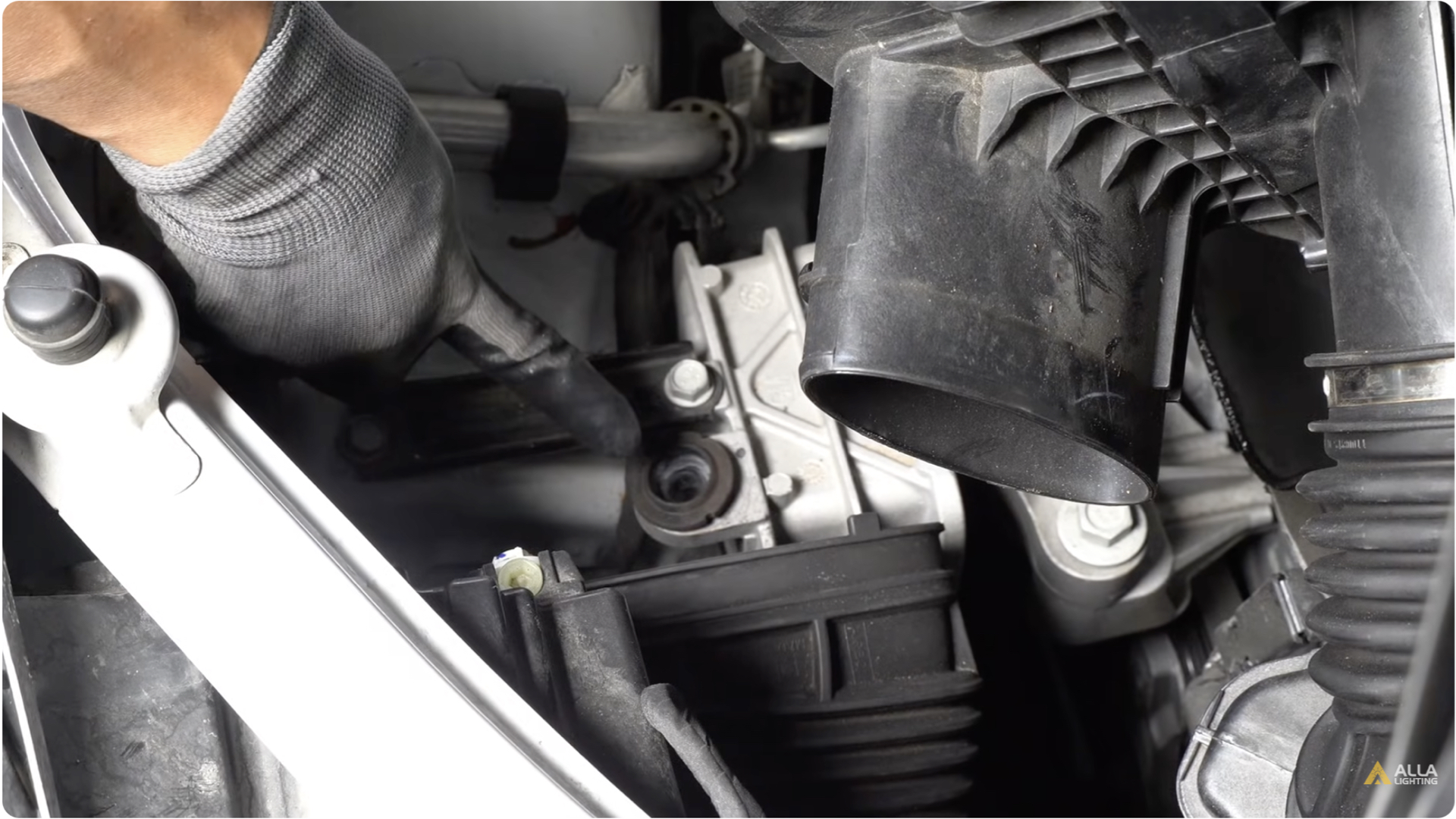

Pull the air filter from the hose.Â
Step #6

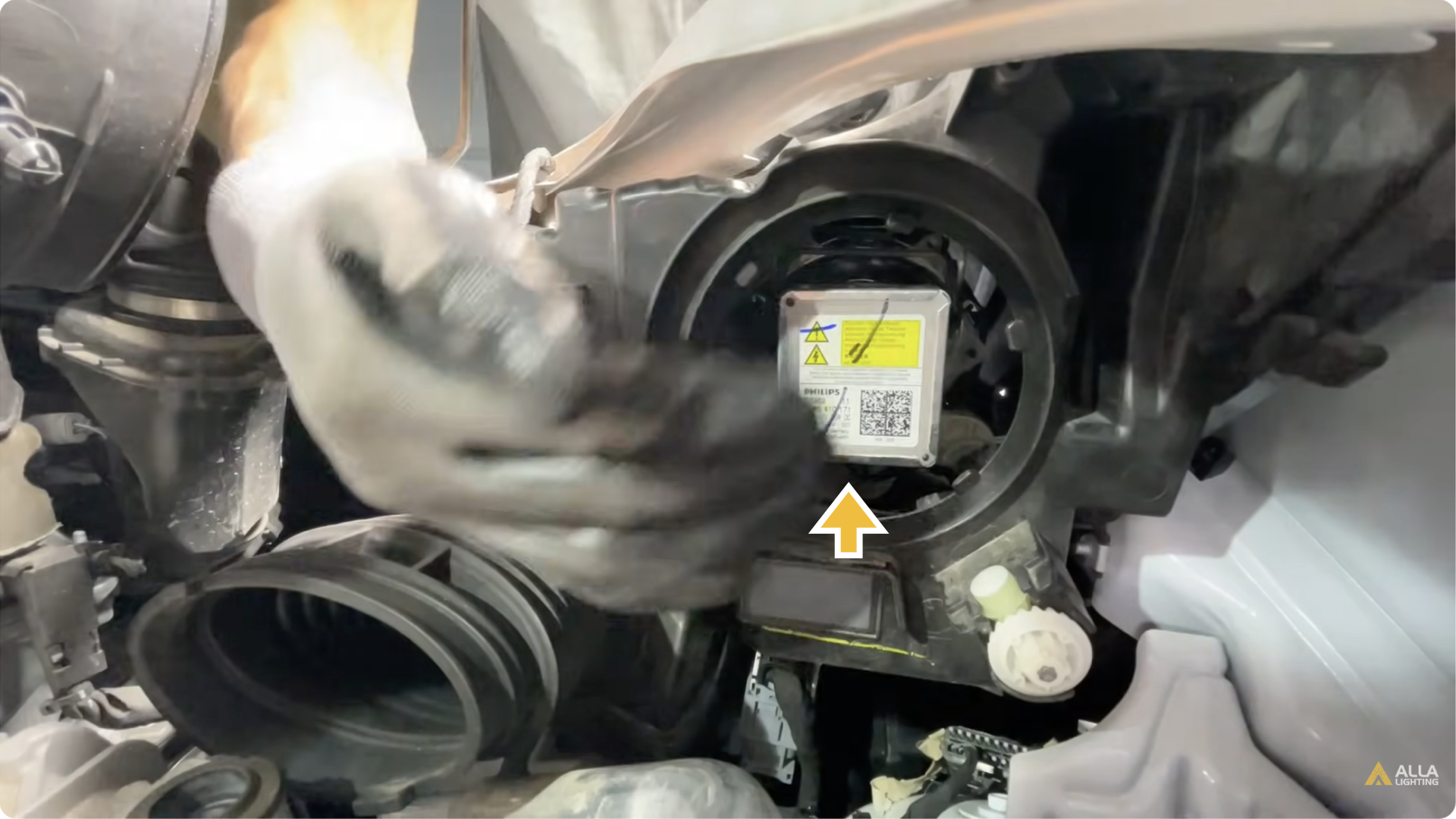

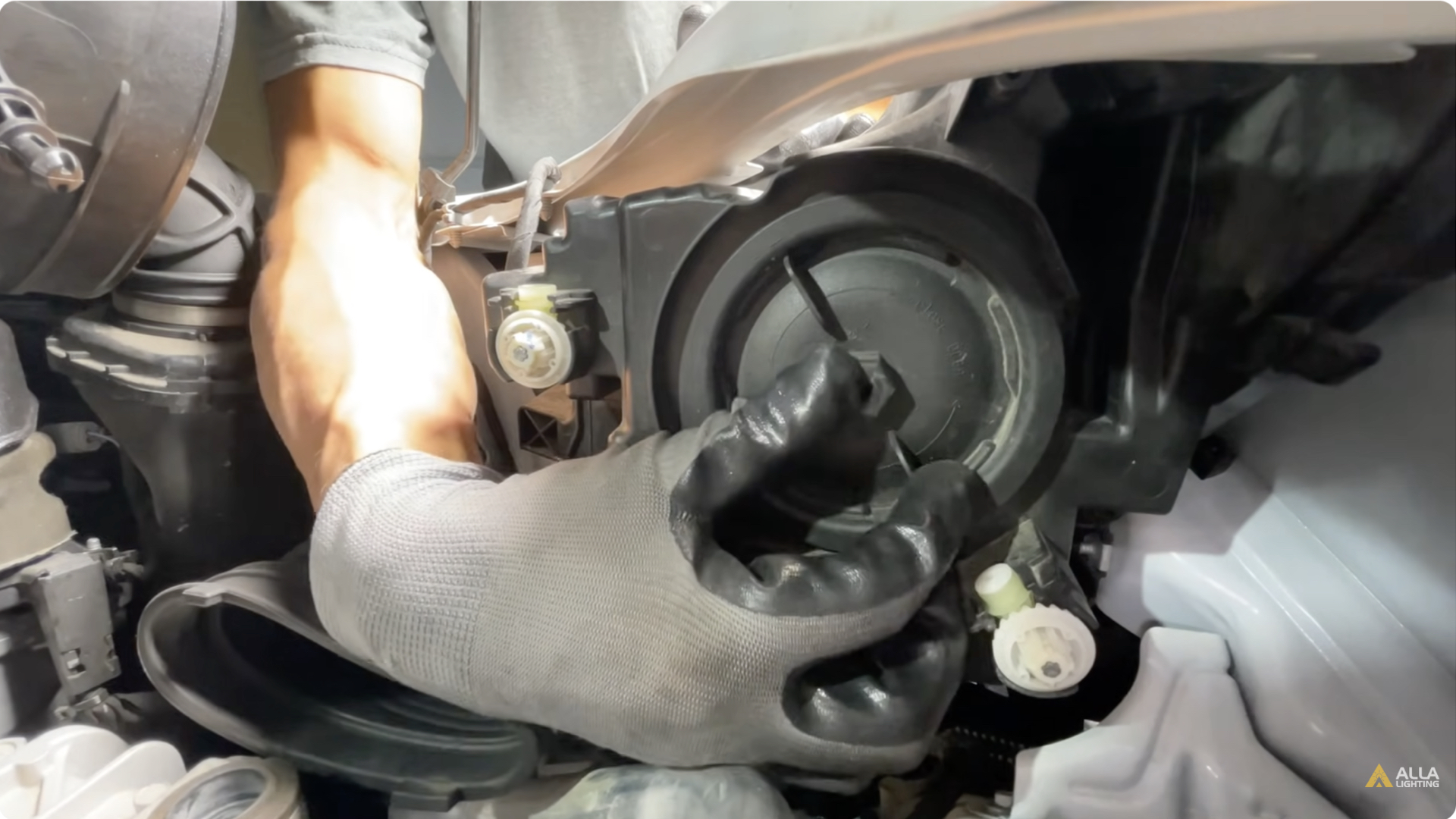

You can now access the dust cover, turn it counterclockwise to remove it.
Step #7

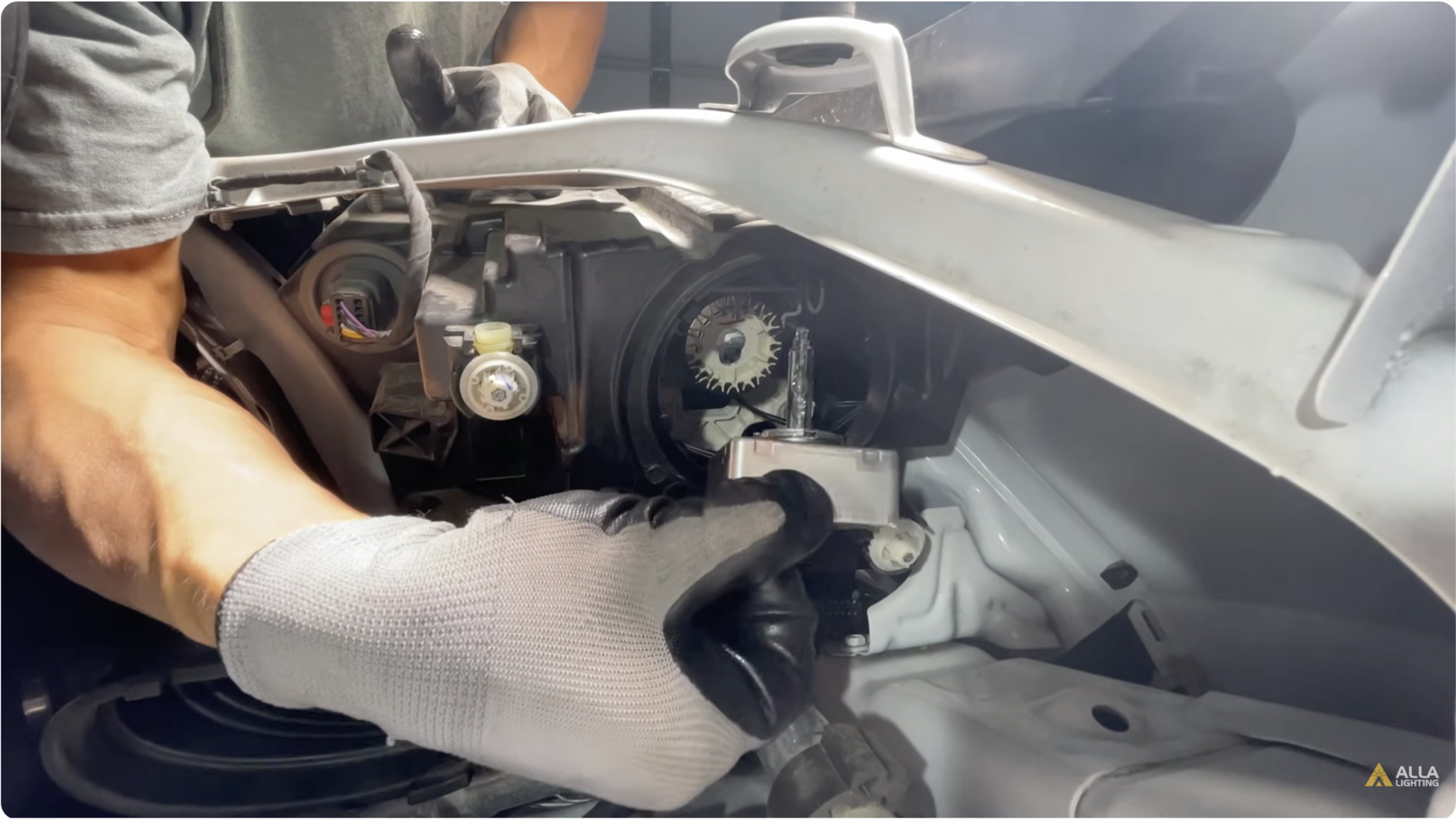

Step one to remove the HID bulb is to pull out the top bar. Step two is to flip up the bottom bar. Step three is to pull the bulb out.Â
Step #8

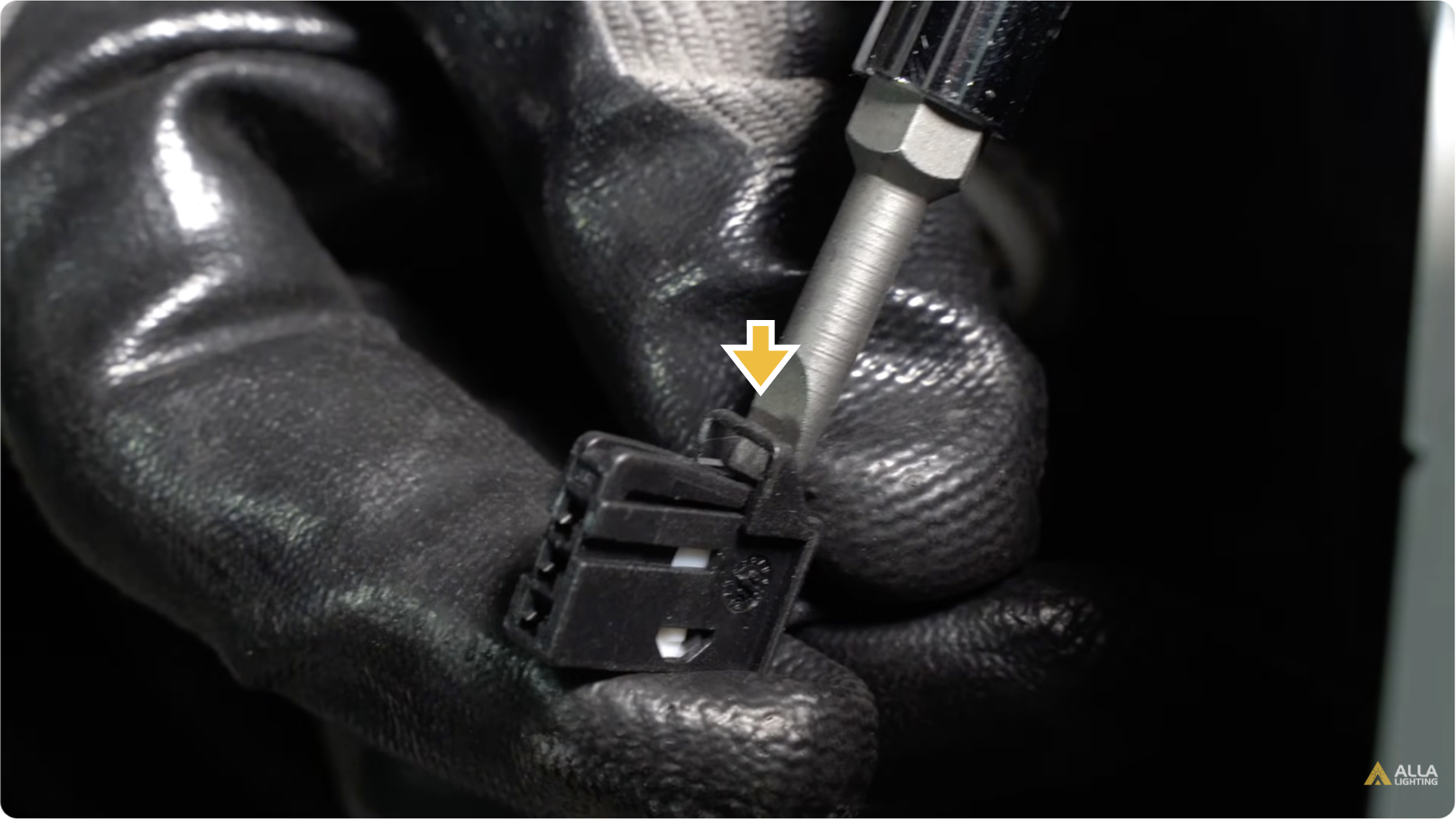

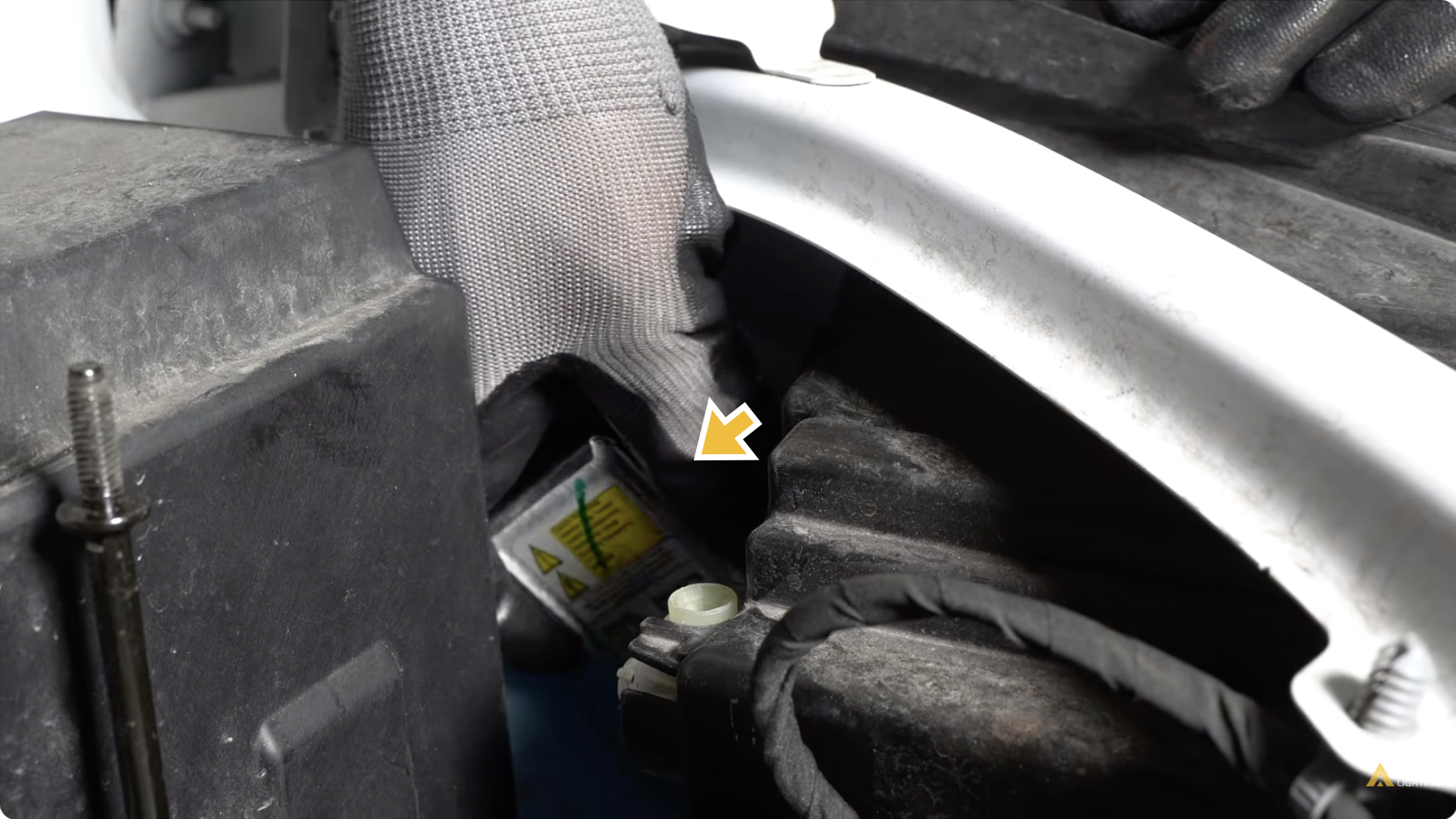

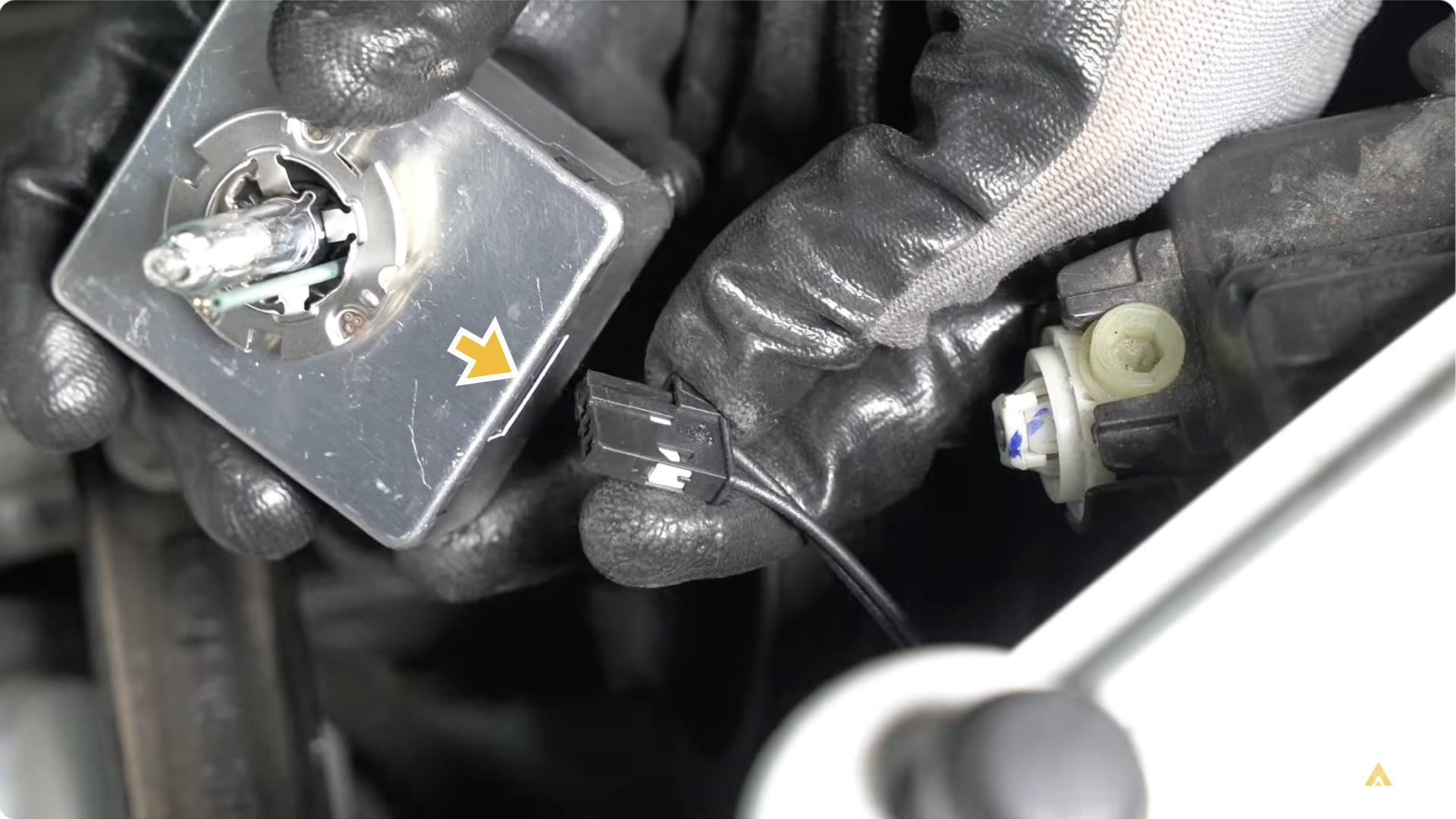

Push down on the tab on the wire connector and pull it off the bulb.
Step #9
Now plug the wire connector into the new HID bulb.
Step #10

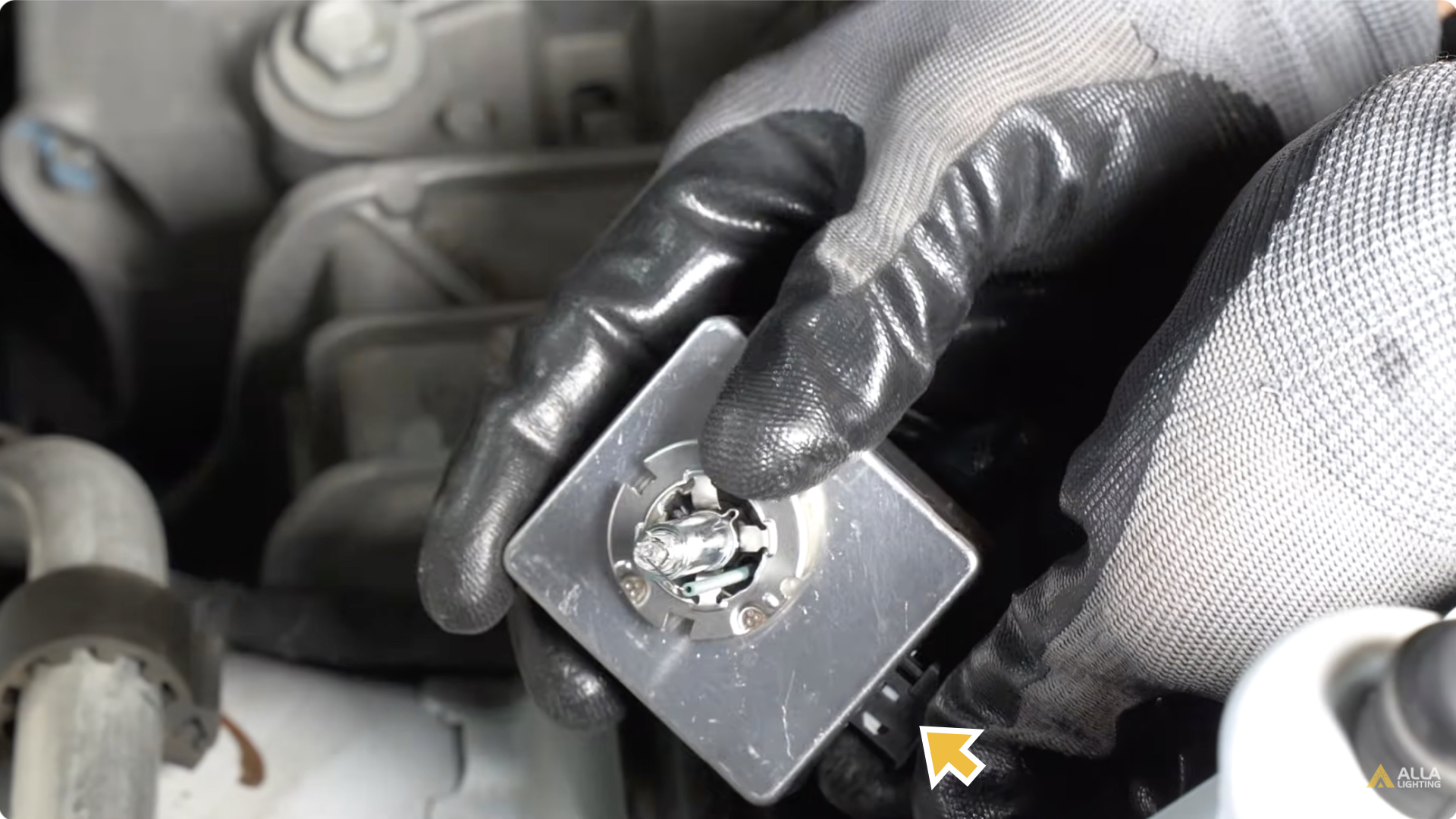

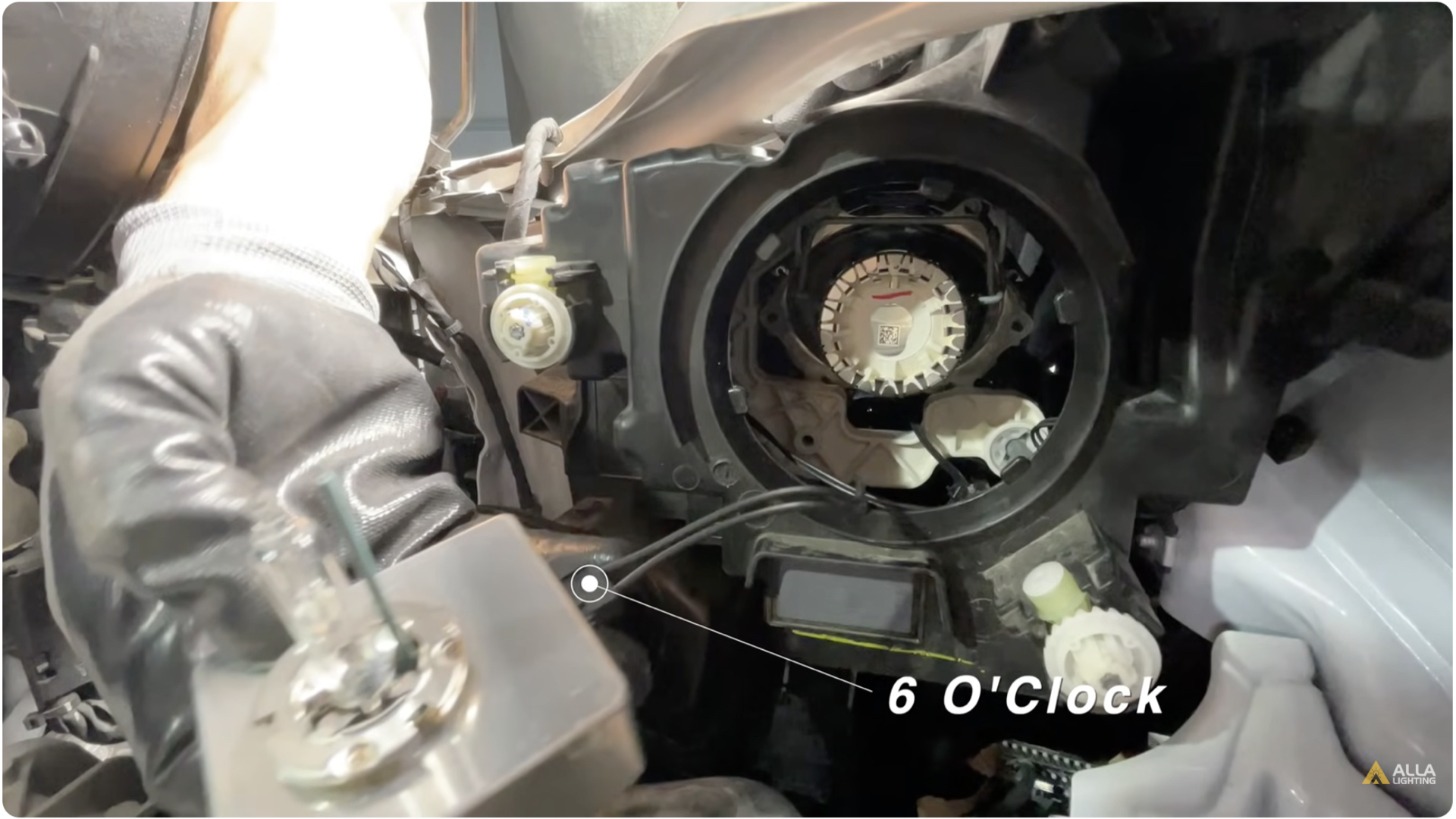

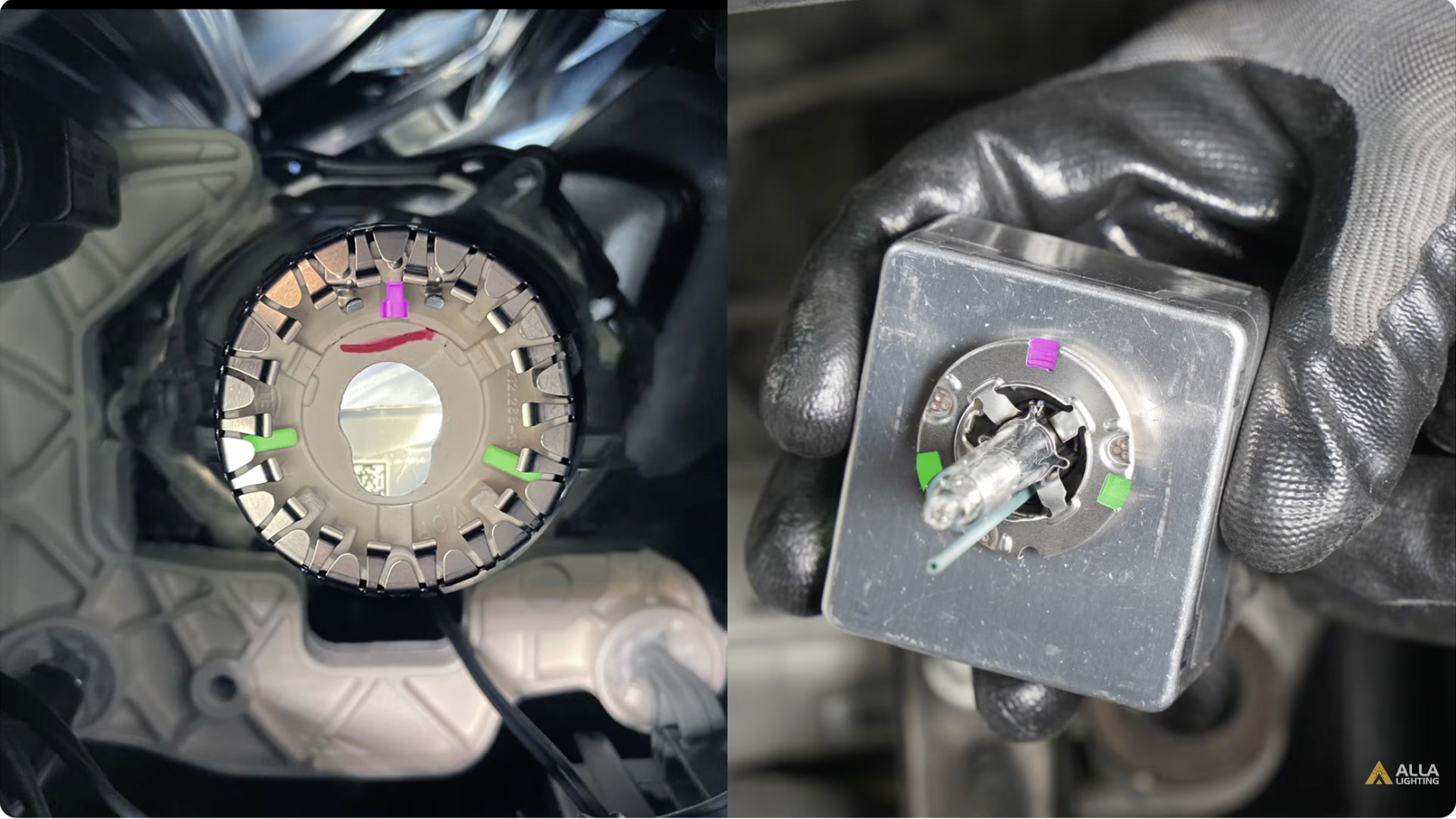

Line up the top notch on the bulb with the tab in the housing. When installed, the wire will hang down at the 6:00 position.
Step #11

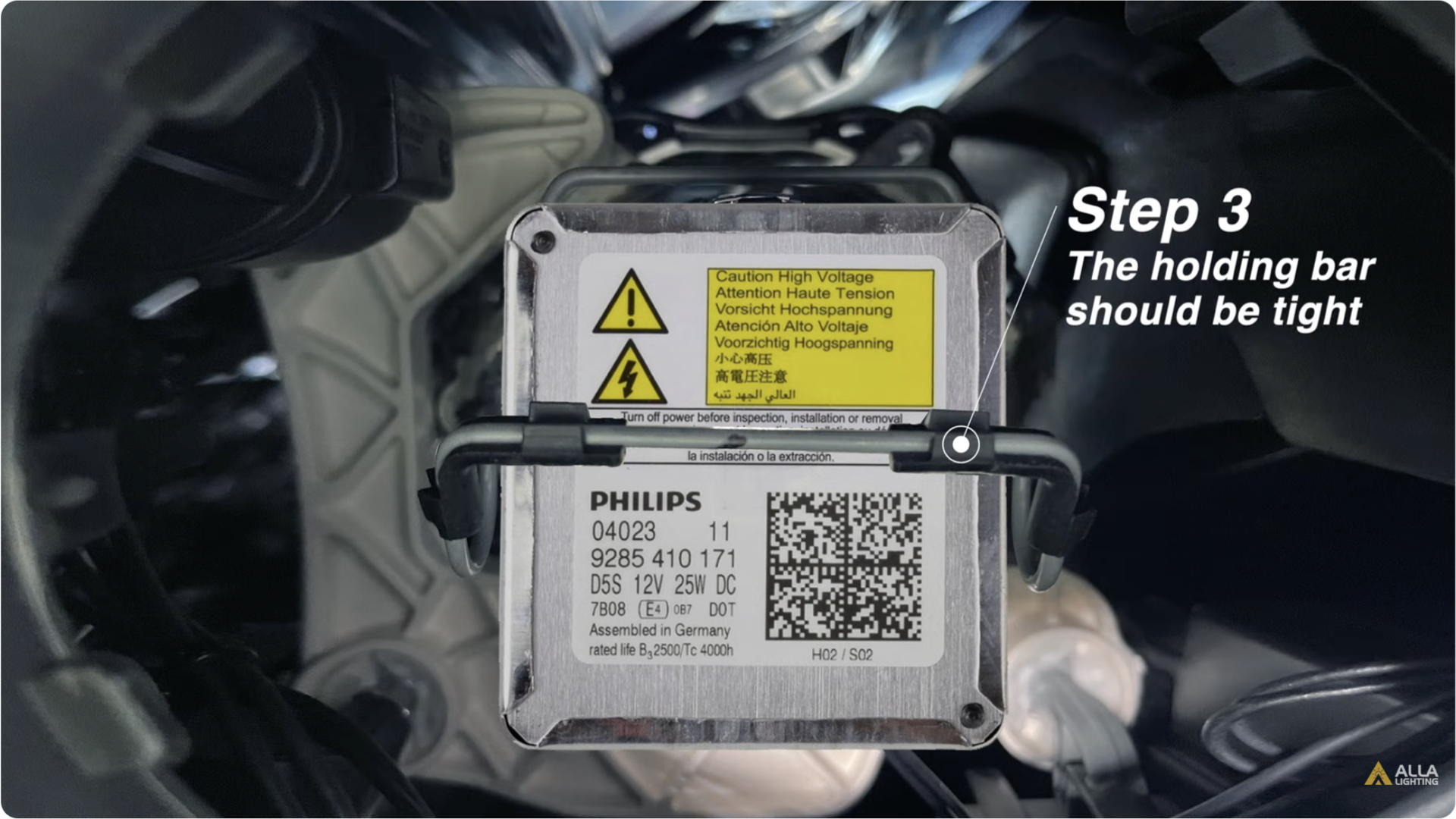

Secure the HID Headlights bulb by first flipping down the bar. Next, push the top bar back into place. Be sure to check that the bar is holding tight.
Step #12
Replace the dust cap and turn it clockwise to lock it.Â
Step #13

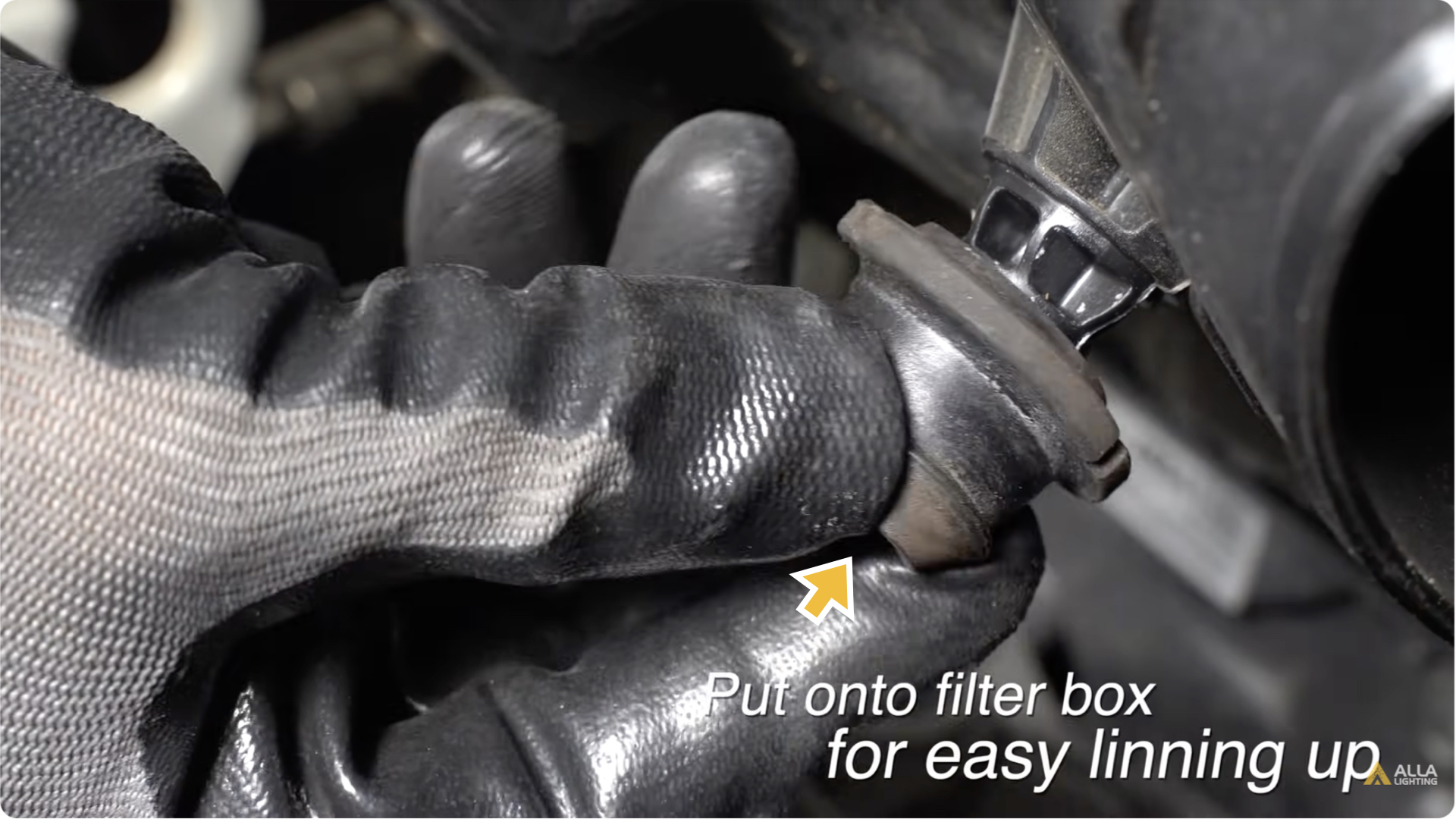

To make the air filter installation easier, pull out the rubber grommet and slide it onto the filter.Â

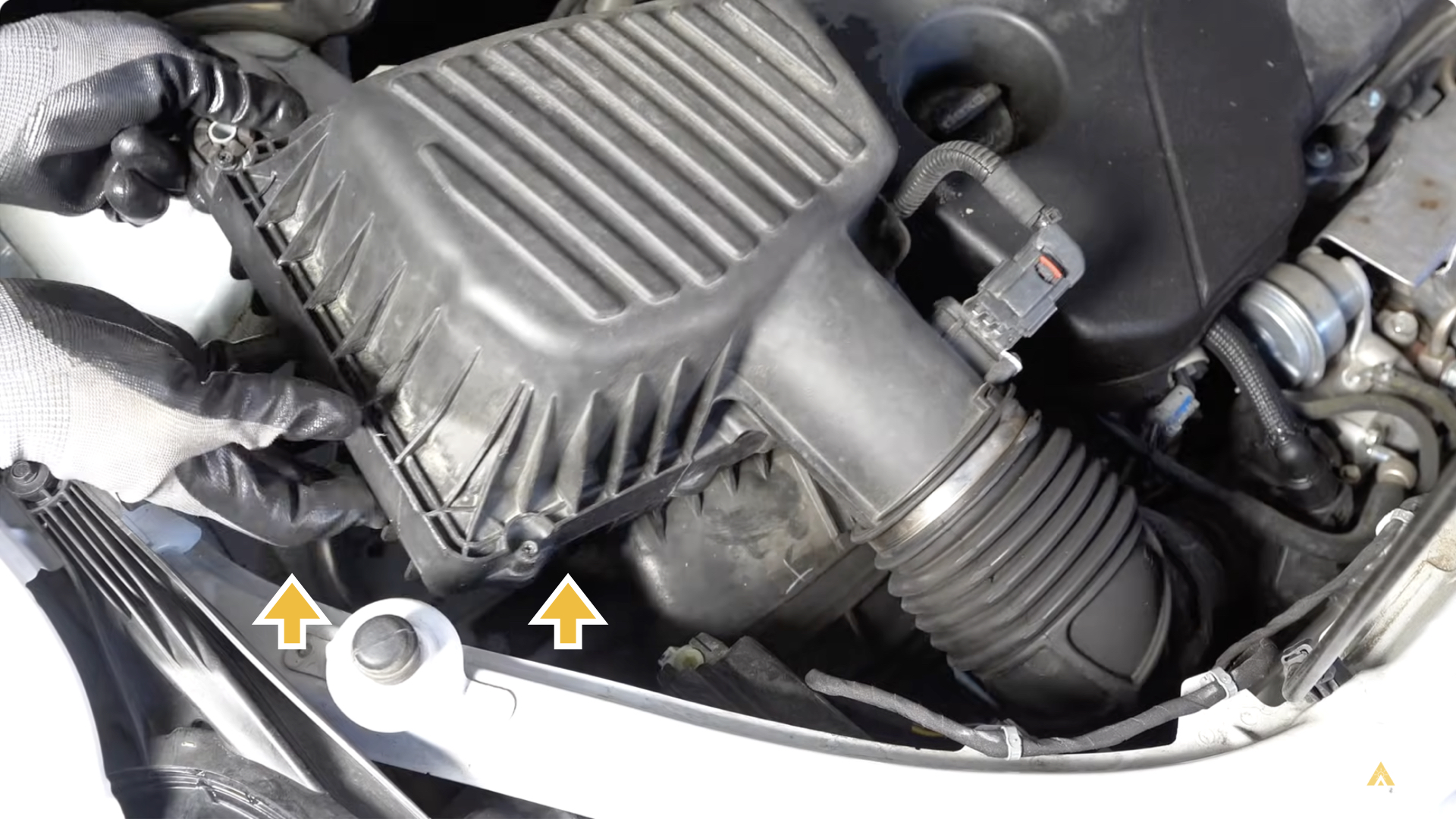

Step #14
Line up the filter and push it down into place, locking in the rubber sockets and replace the bolt on top
Step #15

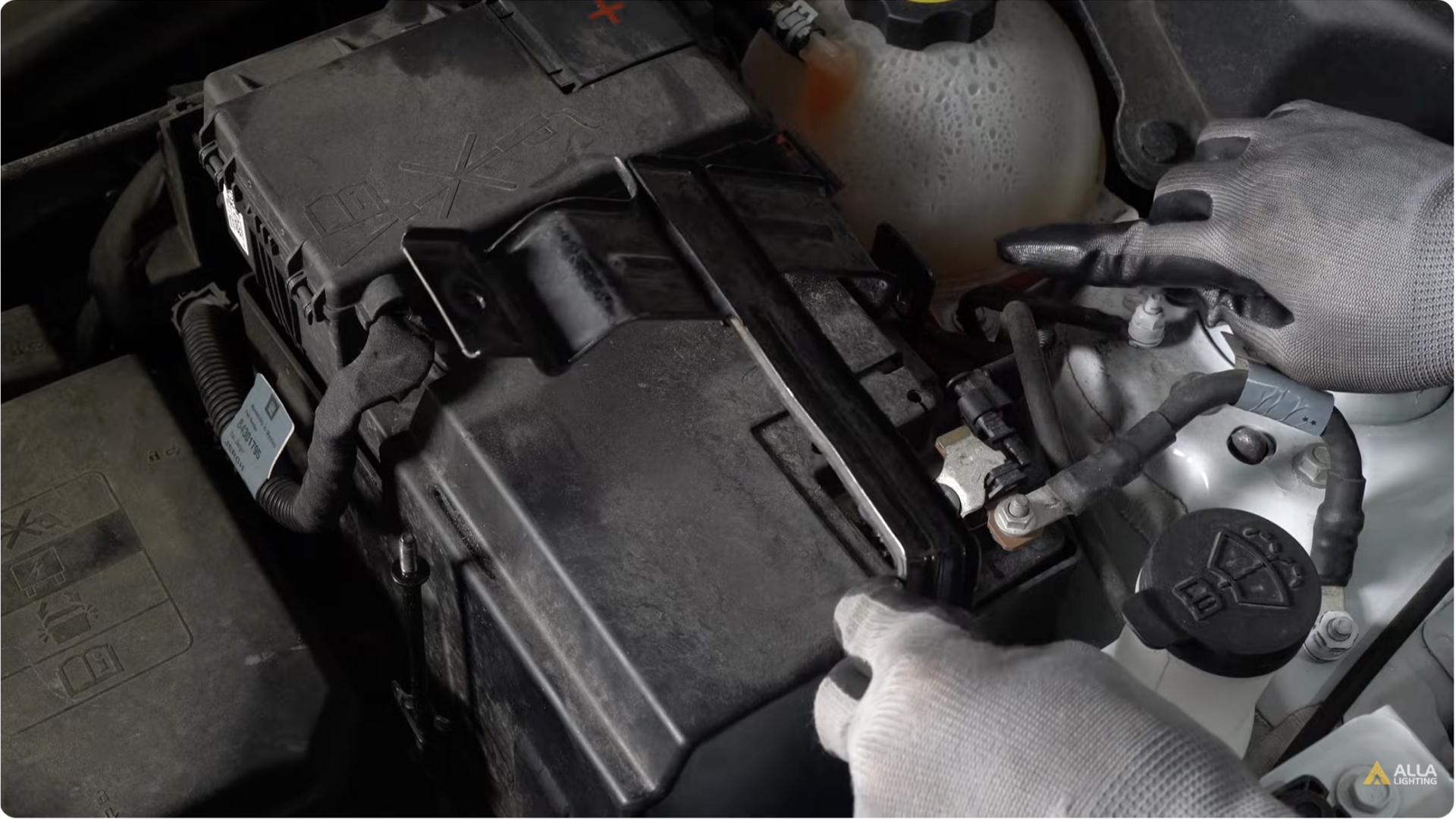

For the driver side, we need to remove the battery bracket.Â
Step #16

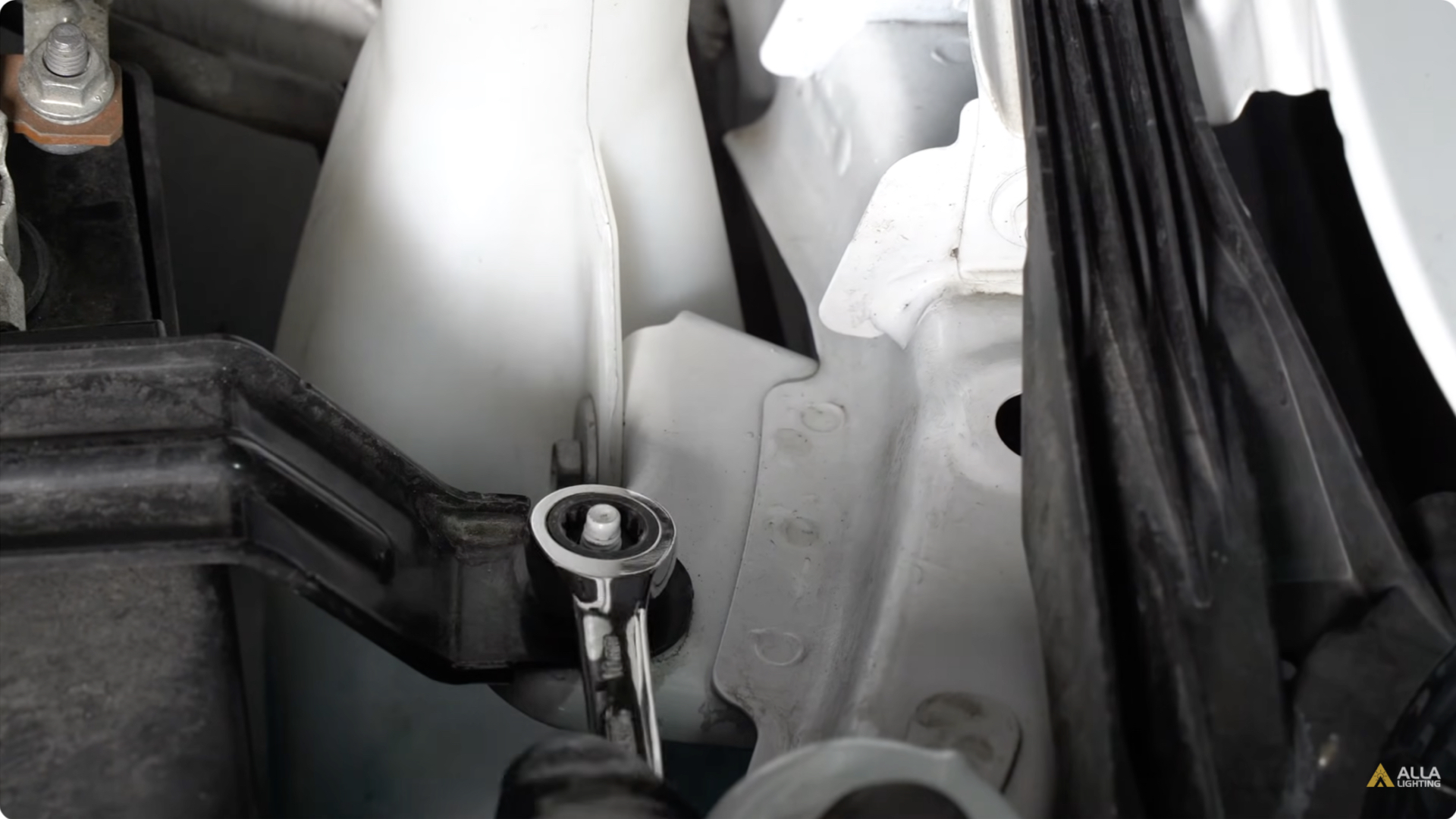

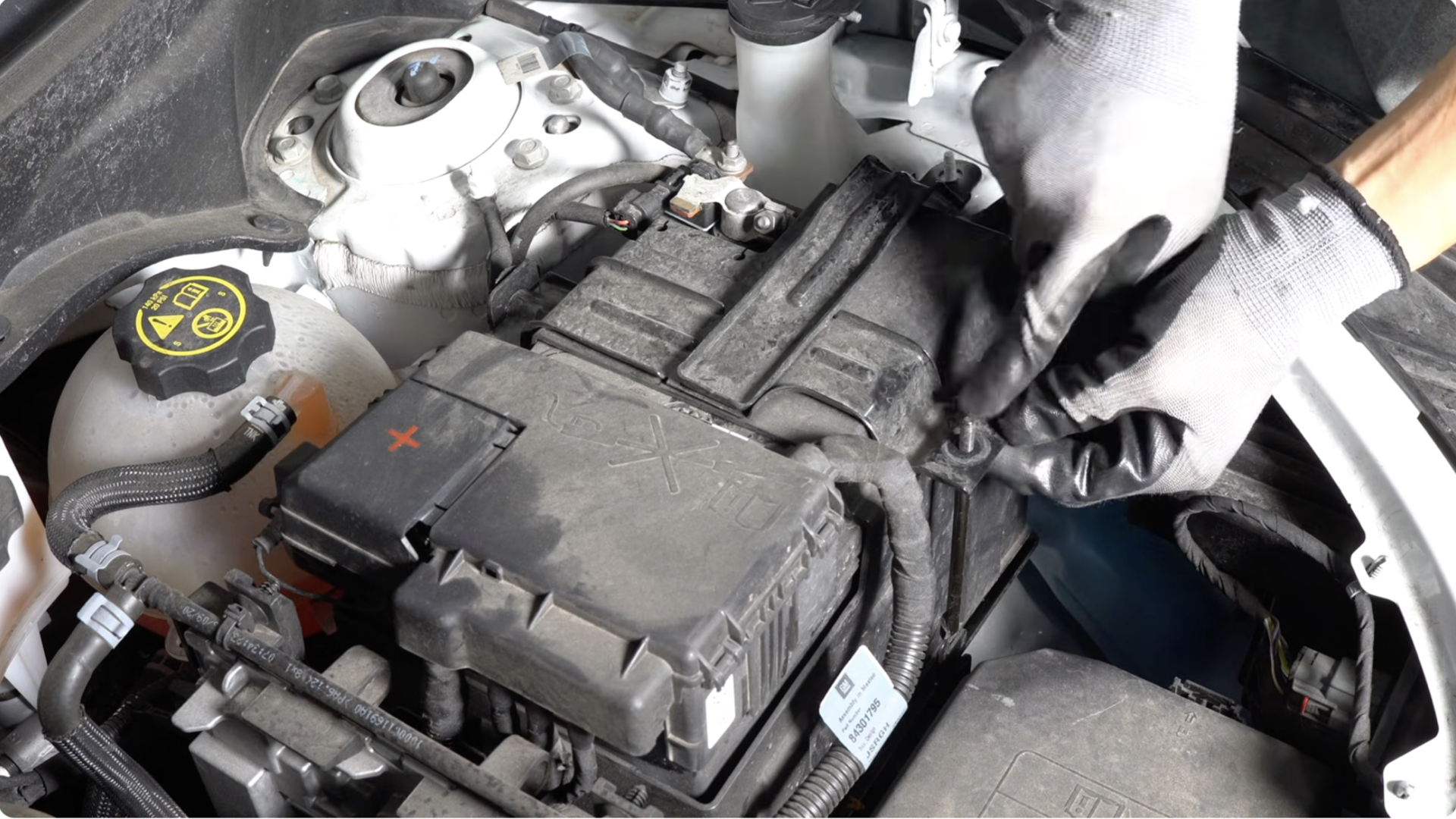

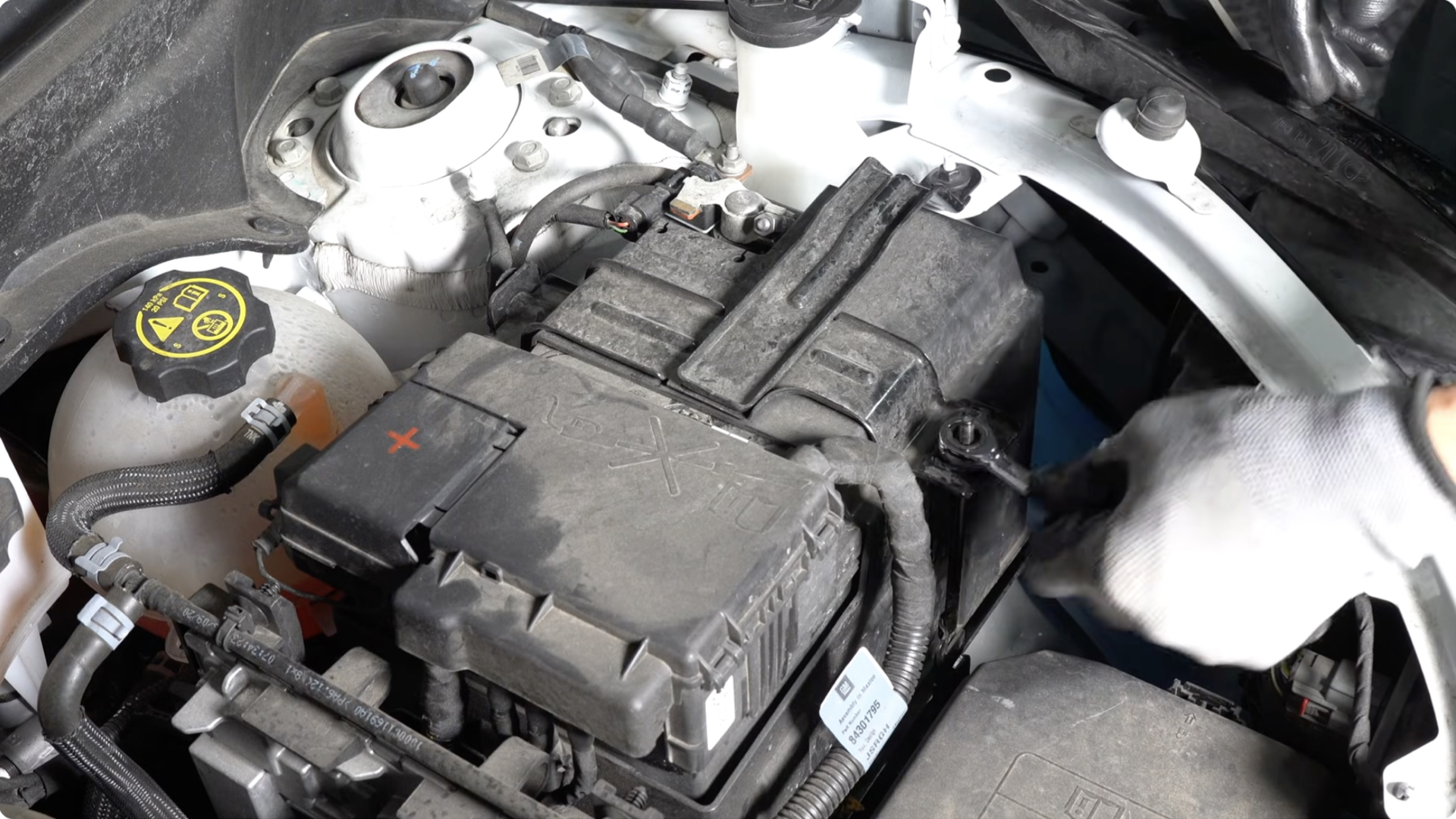

Remove the two nuts on the top.
Step #17

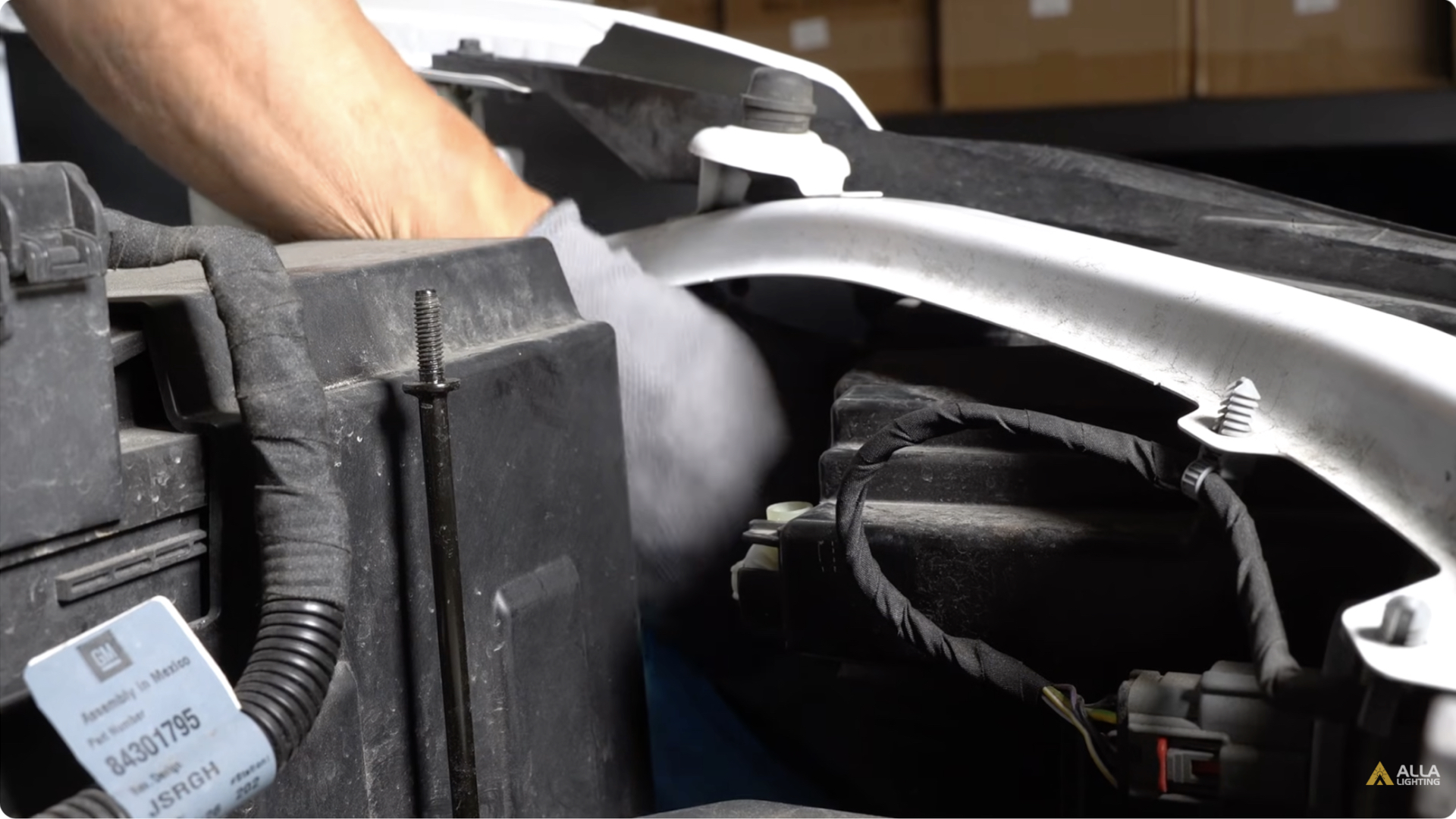

Tilt the bracket up and pull it out.
Step #18

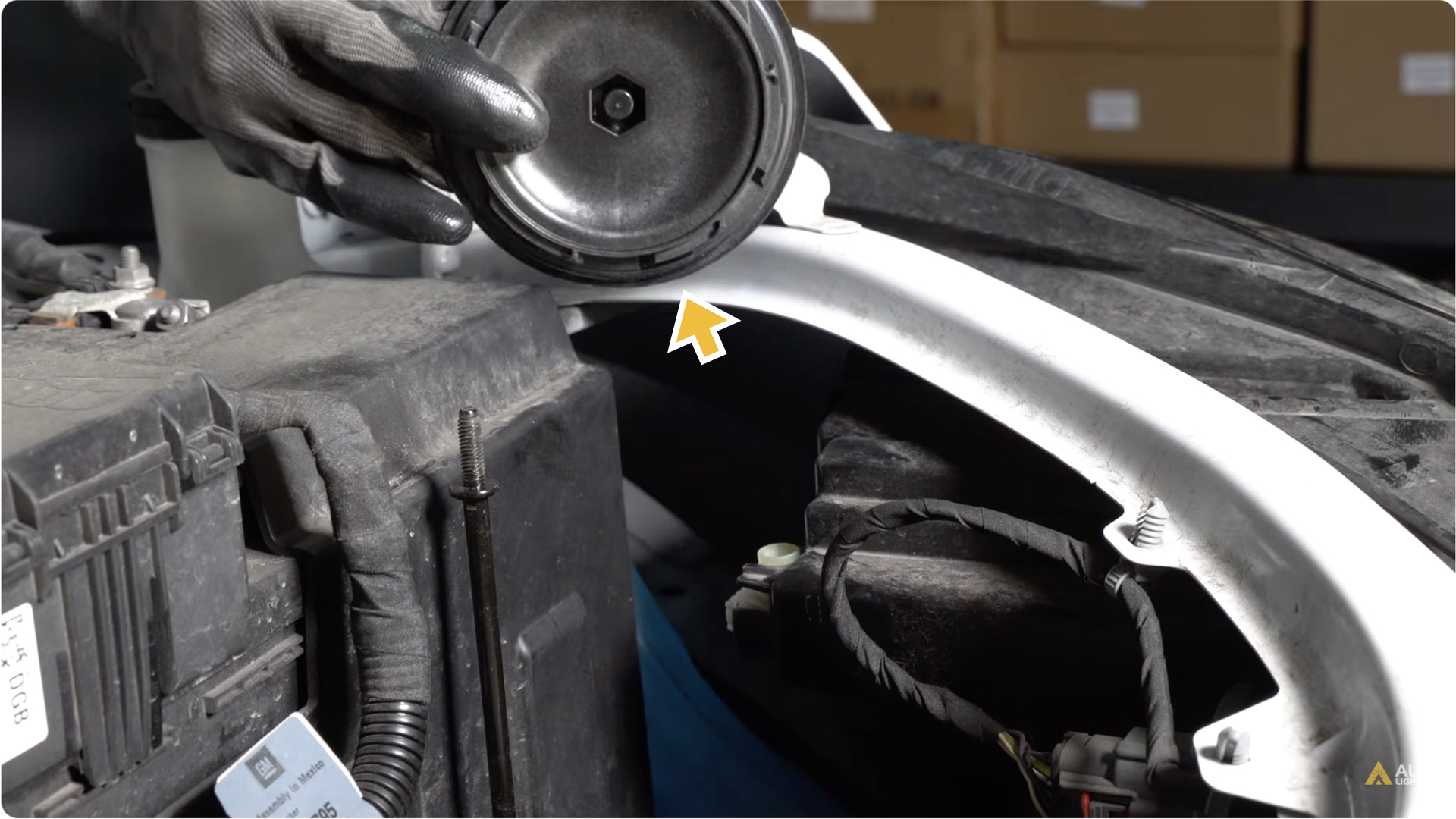

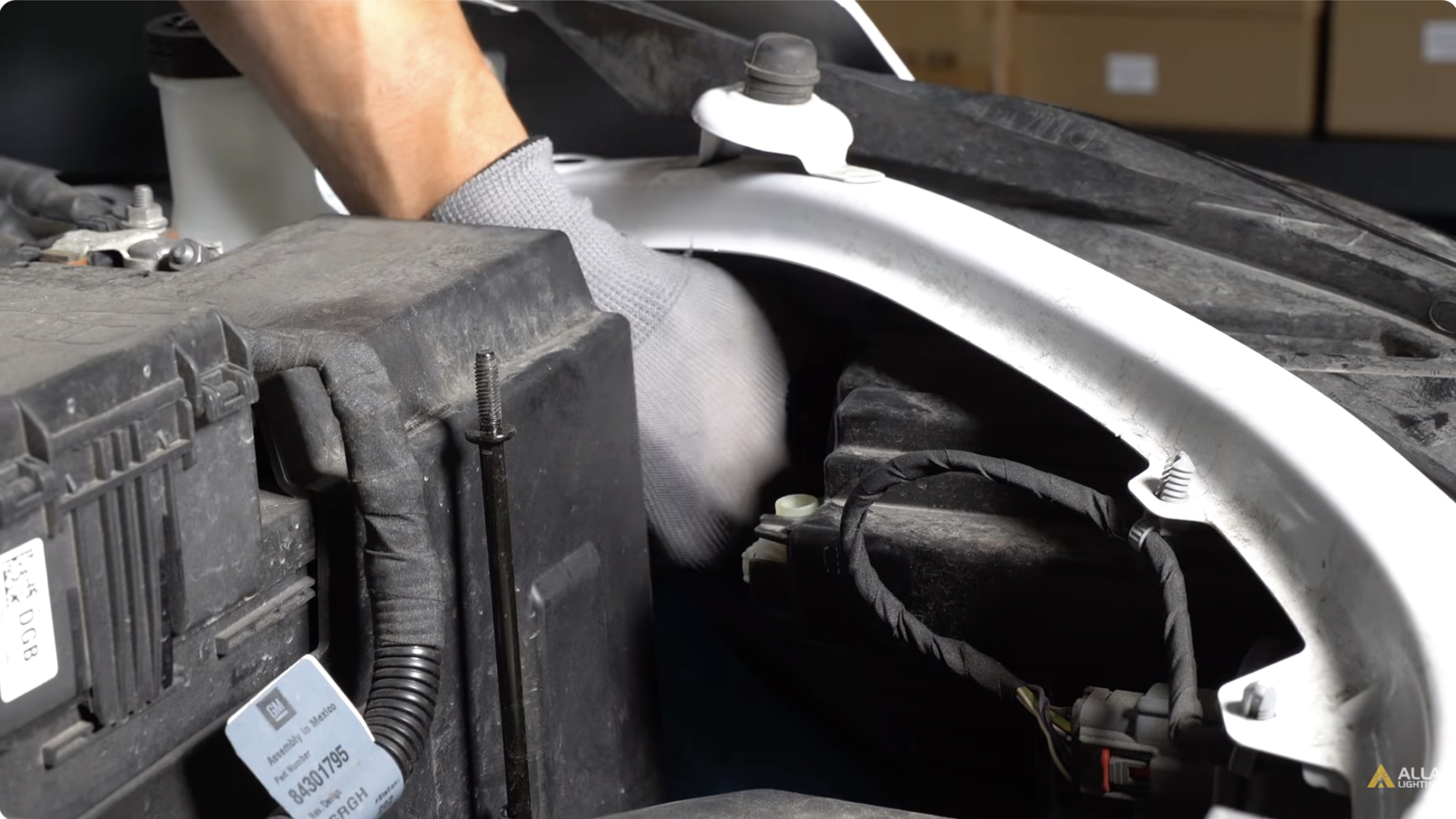

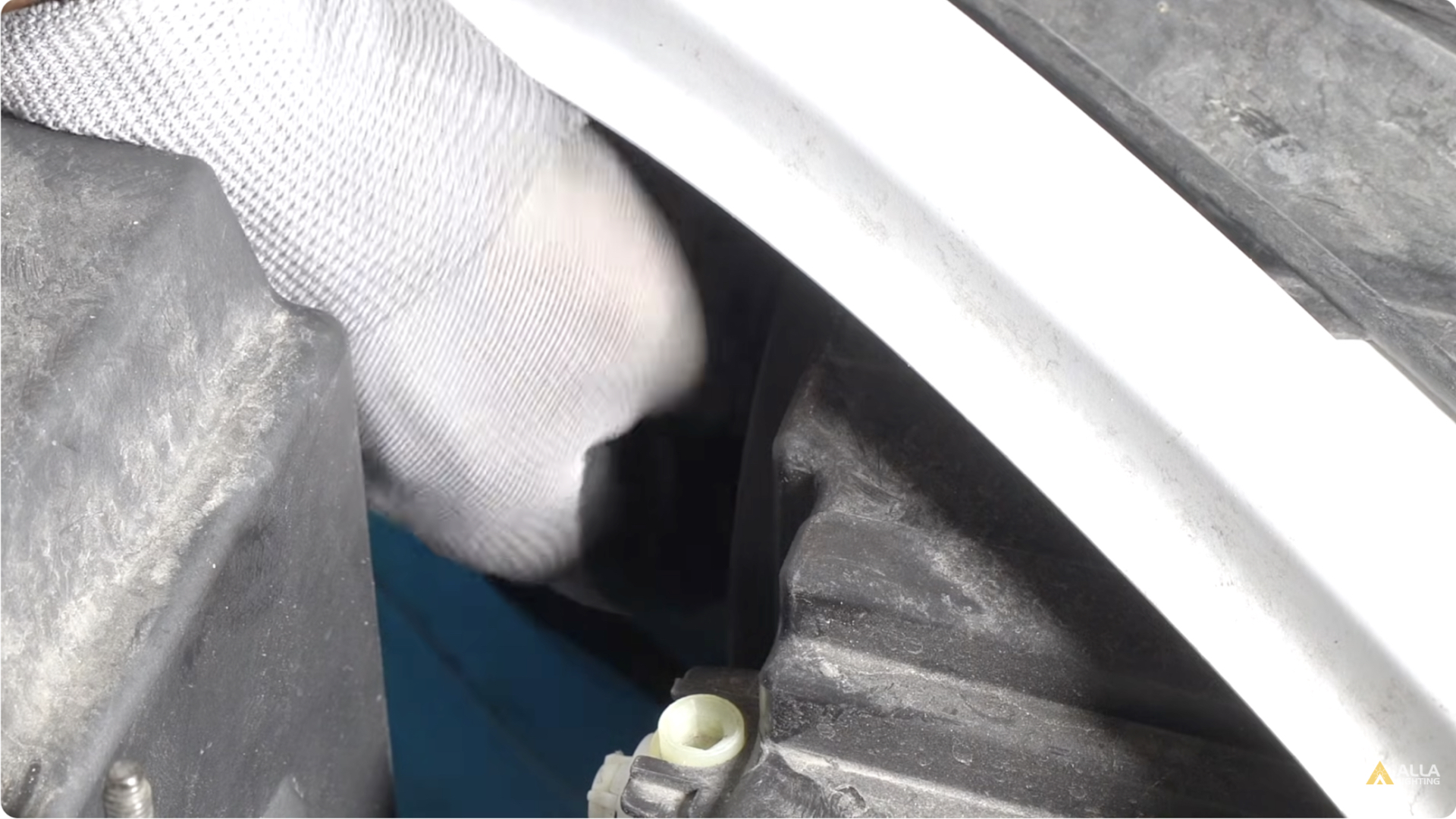

Now turn the dust cap counterclockwise to remove it.
Step #19
Repeat steps one through three to remove the HID Headlights bulb.
Step #20

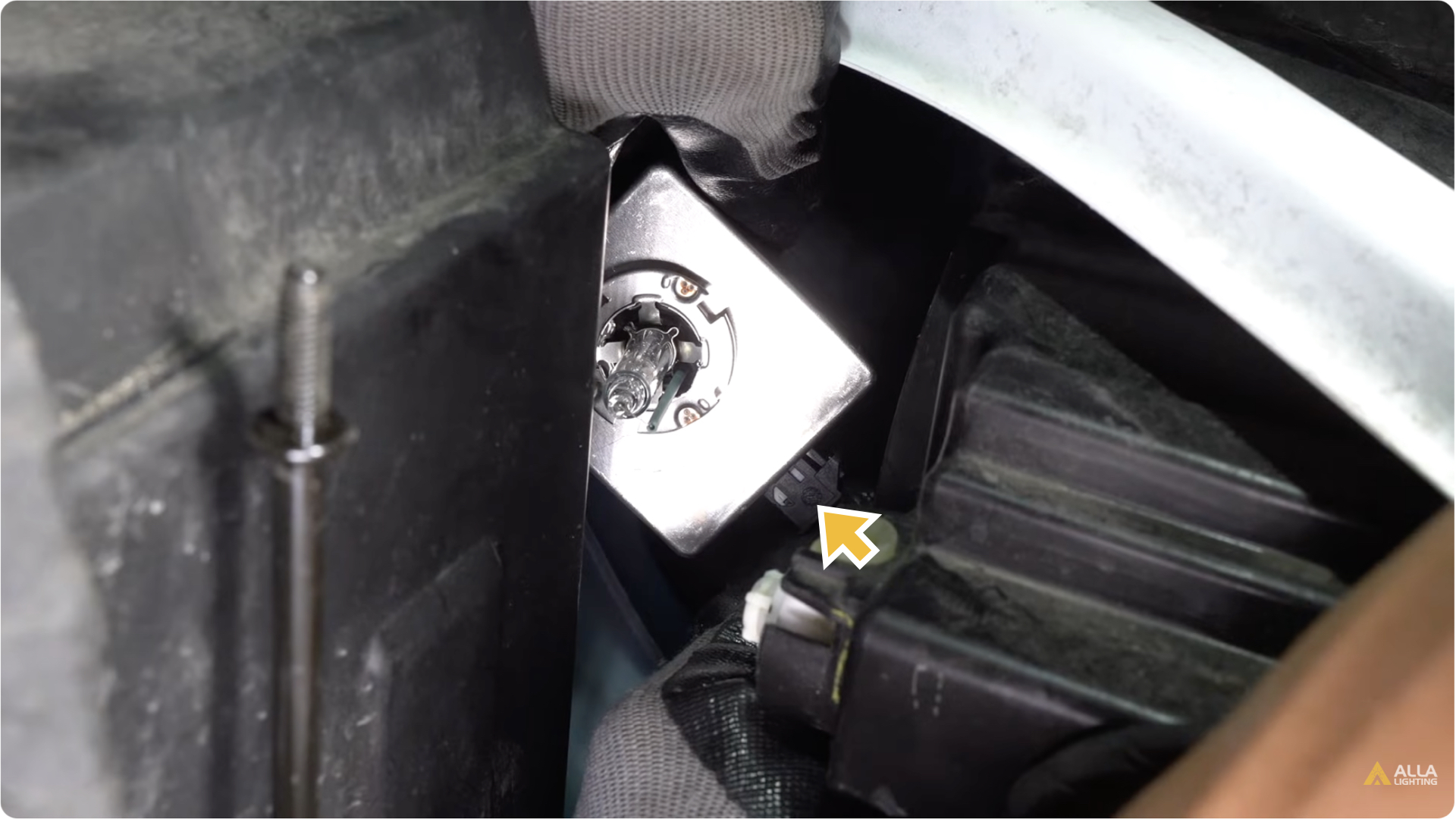

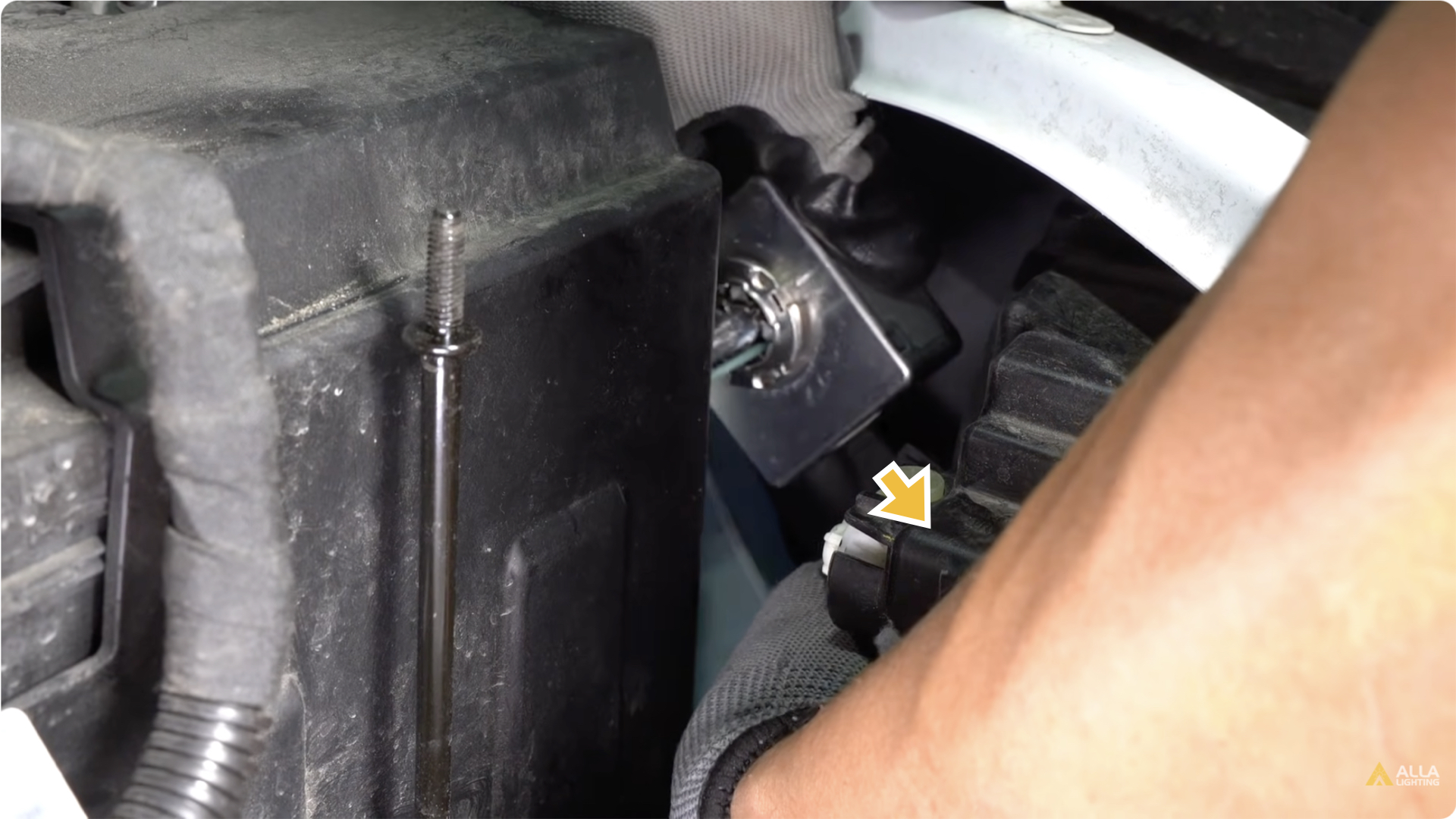

Push down on the tab on the wire socket and pull it off the bulb.
Step #21
Plug the wire socket into the new HID Headlight bulb.
Step #22
Line up the top notch on the bulb with the tab in the housing.
Step #23
Replace the dust cap and turn it clockwise to lock it.
Step #24
Tilt the battery bracket and slide it into the hole.
Step #25
Replace the two nuts and the installation is complete.
Check out our Step by Step installation video!
Congratulations! Your Hi/Low Beam HID Headlights Bulbs installation is now complete in your 2018-2023 Chevrolet Equinox. If you experienced any issues during your installation and unable to complete installation, please feel free to contact us at service@allalighting.com for assistance. Our team of highly trained representatives will be available to assist and provide the best solution. May also visit us at www.allalighting.comÂ
Looking for more LED upgrades for your 2018-2023 Chevrolet Equinox. Check out the below bulb guide! For your reference only. All information below is not 100% guaranteed accurate. Please confirm the original bulb part numbers by referring to the original bulb or the vehicle’s direct owner’s manual prior to purchase.
2018-2023 Chevrolet Equinox Vehicle Information
Front Exterior Lights
High Beam and Low Beam Headlight Bulb. Stock #: 9012 (HIR2) or D3S.
Front Fog Light Bulb. Stock #: H8.
Front Turn Signal Light Bulb. Stock #: 7443
Front Sidemarker Light Bulb. Stock #: 194
Rear Exterior Lights
Tail Light Bulb. Stock #: 194
Brake Light Bulb. Stock #: 7440
Rear Turn Signal Light Bulb. Stock #: 7440
Parking Light Bulb. Stock #: 7440
Back Up Light Bulb. Stock #: 921
License Plate Light Bulb. Stock #: 2825 (W5W)
Interior Lights
Luggage Compartment Light Bulb. Stock #: 194
Dome Light Bulb. Stock #: 194
Map Light Bulb. Stock #: 194
Vanity Mirror Light Bulb. Stock #: 6614F
